Installing the MOVI-PLC® advanced DHF41B controller
Mounting/Installation Instructions
4.4 Installing the MOVI-PLC
®
advanced DHF41B controller
4.4.1 Function description of the terminals, DIP switches and LEDs
NOTE
The connections identical with DHE41B are described in section "Installation of the
MOVI-PLC
®
advanced DHE41B controller".

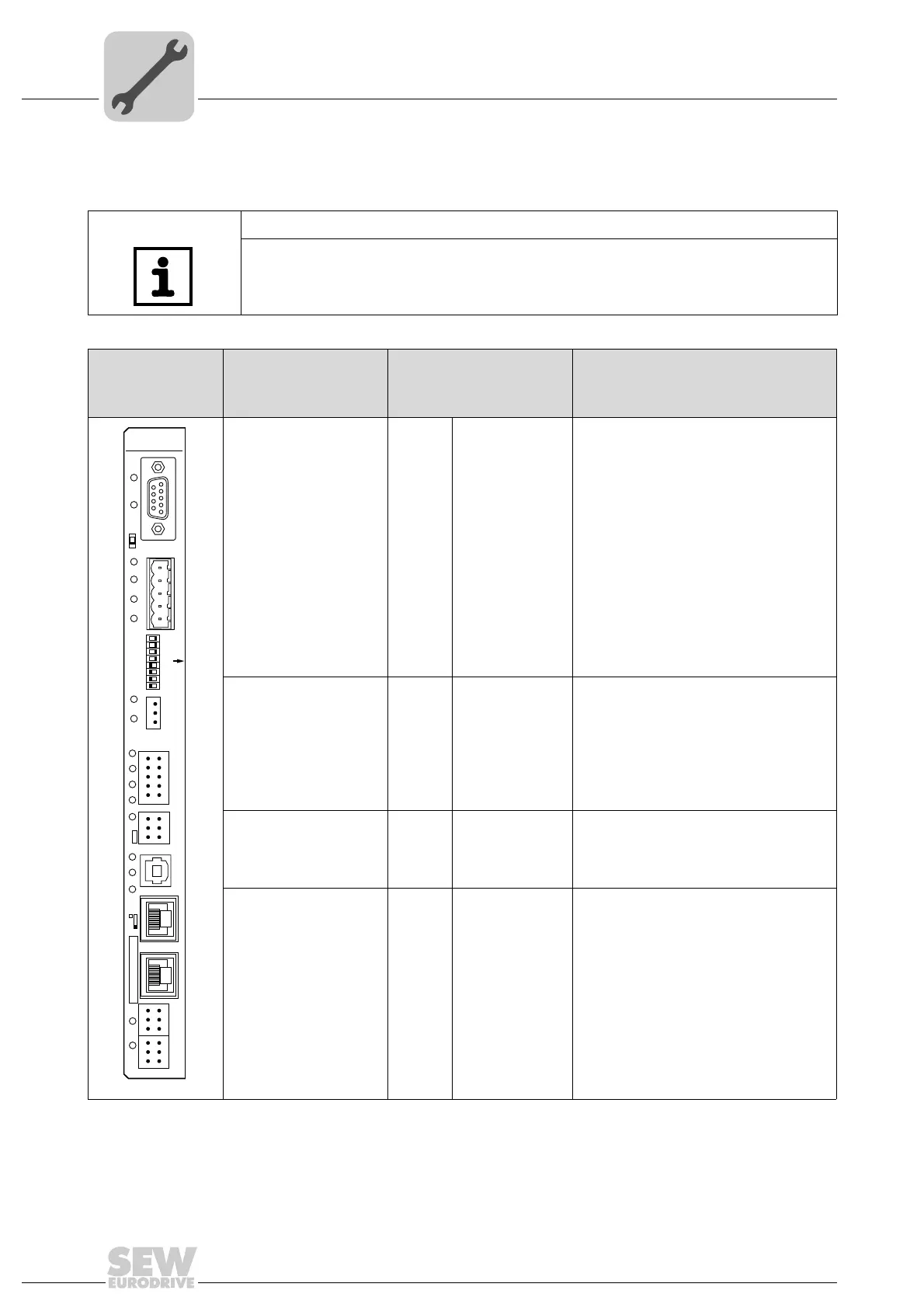

Front view
MOVI-PLC
®
advanced DHF41B
controller
Designation
LED
DIP switches
Terminal
Function
63209AXX
LED LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
LED 8
LED 9
LED 10
LED 11
LED 12
LED 13
LED 14
LED 15
LED 16
LED 17
LED 18
CAN 1 status
CAN 2 status
IEC progr. status
PLC status
User LED
DIO6/7
DIO4/5
DIO2/3
DIO0/1
24V / I/O OK
-
-
BUSOFF
Bit strobe I/O:
Polled I/O
Mod/Net
Fault Profibus
Run Profibus
Status of CAN 1 system bus
Status of CAN 2 system bus
Status of control program
Status of control firmware
Freely programmable
Status input or output DIO6/7
Status input or output DIO4/5
Status input or output DIO2/3
Status input or output DIO0/1
Status of voltage supply I/O
Reserved
Reserved
The two-color LEDs 13 ... 16 display the cur-
rent status of the fieldbus interface and the
DeviceNet system
Status of PROFIBUS bus electronics
Status of PROFIBUS communication
Terminal X30P:
PROFIBUS
(Sub-D9)
X30P:9
X30P:8
X30P:7
X30P:6
X30P:5
X30P:4
X30P:3
X30P:2
X30P:1
GND (M5V)
RxD/TxD-N
N.C.
VP (P5V/100 mA)
GND (M5V)
CNTR-P
RxD / TxD-P
N.C.
N.C.
Reference potential for PROFIBUS
Signal receive transmit negative
Terminal unassigned
DC+5 V potential for bus terminator
Reference potential for PROFIBUS
PROFIBUS control signal for repeater
Signal receive transmit positive
Terminal unassigned
Terminal unassigned
Terminal X30D:
DeviceNet
(plug-in terminals)
X30D:1
X30D:2
X30D:3
X30D:4
X30D:5
V–
CAN_L
DRAIN
CAN_H
V+
0 V 24
CAN_L
DRAIN
CAN_H
24 V
DIP switch S2
Switching between
PROFIBUS/DeviceNet
S2 Top
Bottom
Fieldbus interface PROFIBUS (X30P) active
Fieldbus interface DeviceNet (X30D) active
DHF41B
2
2
2
2
0
1
2
3
2
2
2
4
5
6
2
7
2
4
6
1
2
3
X34
X35
X36
X37
XM
1
3
5
1
2
3
1
2
3
1
2
3
1
2
3
X32X33
2
4
6
1
3
5
8
10
7
9
X31
X38
L18
X30P
S1
3
4
2
1
1
5
X30D
S2
L16
L15
L14
L13
L12
L11
L10
L9
L8
L7
T1
L6
L5
L4
L3
L2
L1
L17
ON
