Manual – MOVI-PLC® advanced DHE41B/DHF41B/DHR41B Controller
4
Installing the DH.41B option in MOVITRAC® B/compact controller
Mounting/Installation Instructions
4.8.4 MOVITRAC
®
B/compact controller option slot operating displays
LED H1 The LED H1 signals correct operation via connection X26.
LED H2 LED H2 is reserved.
60304AEN

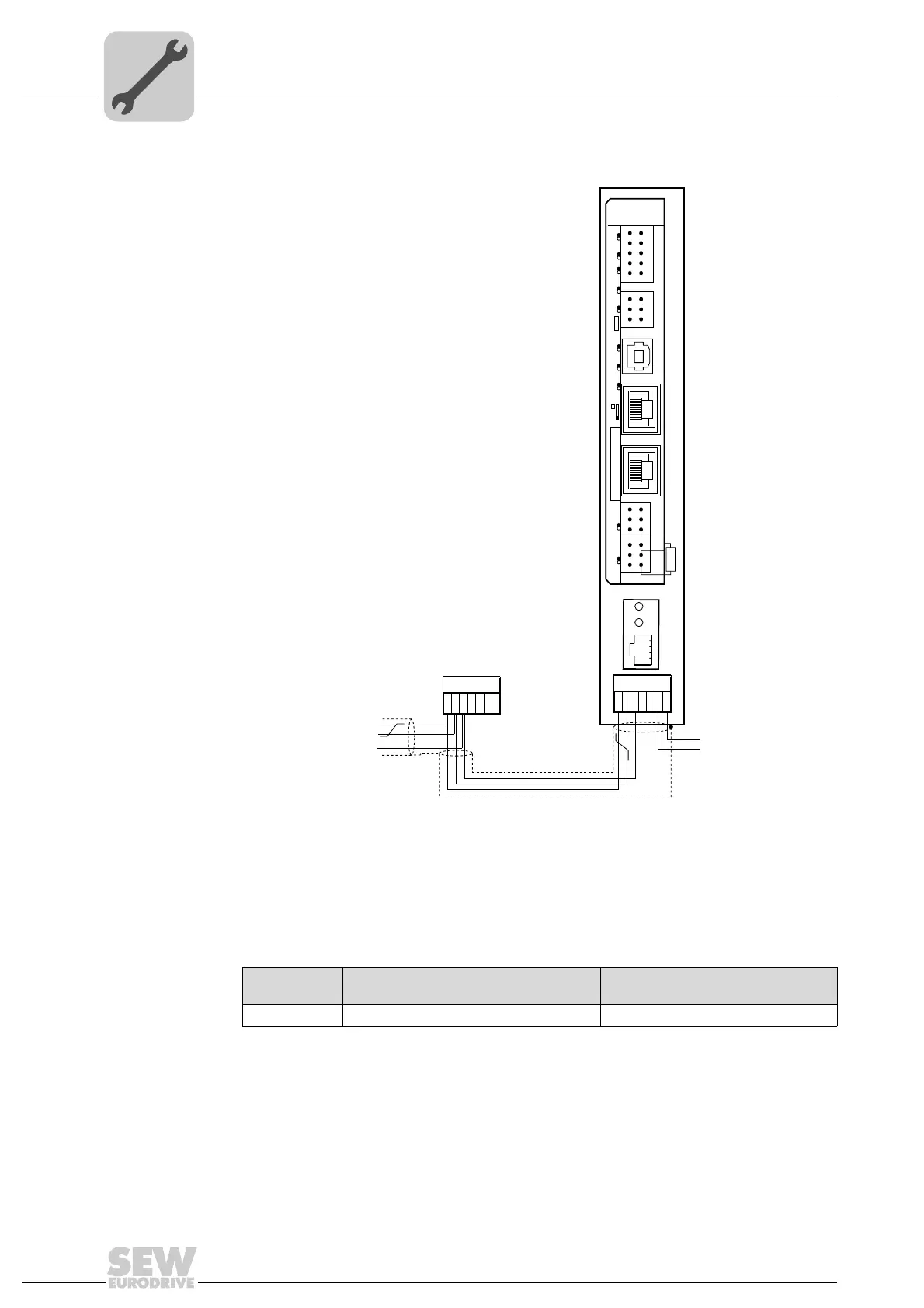

Figure 10: Installation of the MOVI-PLC
®
advanced DHE41B/UOH..B compact controller
X26
1
23456
7
SEW drive
Compact controller
DC +24 V
GND
X24
H1
H2
SC11 System bus +, CAN high
SC12 System bus -, CAN low
GND, CAN GND
120W
X35
X36
X37
2
4
6
1
3
5
X34
DHE41B
1
2
3
1
3
4
2
1
2
3
1
2
3
1
2
3
X32X33
2
4
6
1
3
5
8
10
7
9
X31
T1
S1
L1 L2 L3 L5XM L6 L7 L8 L9L4 L10
Status of LED
H1
Diagnostics Troubleshooting
OFF • Correct operation of connection X26 -
