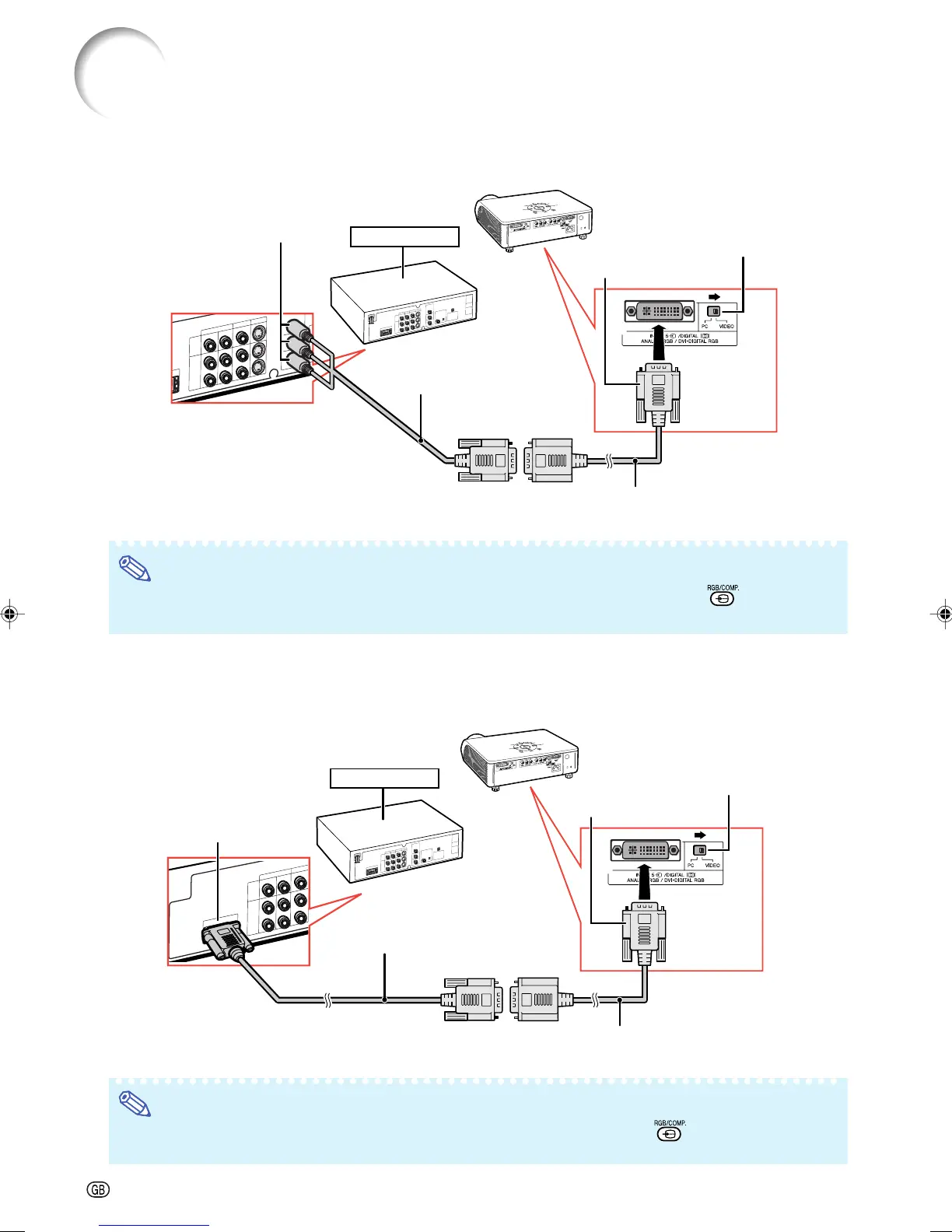

When connecting the video equipment with RGB output terminal (INPUT 5)
• Before connecting the cable, switch the digital input type switch to “VIDEO”.
INPUT 5 terminal
DVI to 15-pin D-sub adaptor
(sold separately: AN-A1DV)
RGB output terminal
RGB cable
(commercially available)
DVD Player,etc.
4
3
2
Switch to “VIDEO”
1
Connecting to Video Equipment
Note
• For this connection, select “RGB” for “Signal Type” on the OSD menu or press on the remote control.
(See page 48.)
When connecting the component video equipment to the DVI input terminal on the projector (INPUT 5)
• Before connecting the cable, switch the digital input type switch to “VIDEO”.
Note
• For this connection, select “Component” for “Signal Type” on the OSD menu or press on the remote
control. (See page 48.)
INPUT 5 terminal
DVI to 15-pin D-sub adaptor
(sold separately: AN-A1DV)
3 RCA to 15-pin D-sub cable
(sold separately: AN-C3CP)
Analog component
output terminal
DVD Player,etc.
4
3
2
Switch to “VIDEO”
1
XV-Z2000E_E_P19_27.p65 2004.10.20, 11:51 AM22

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
