Shinko BCS2R Series User Manual

19

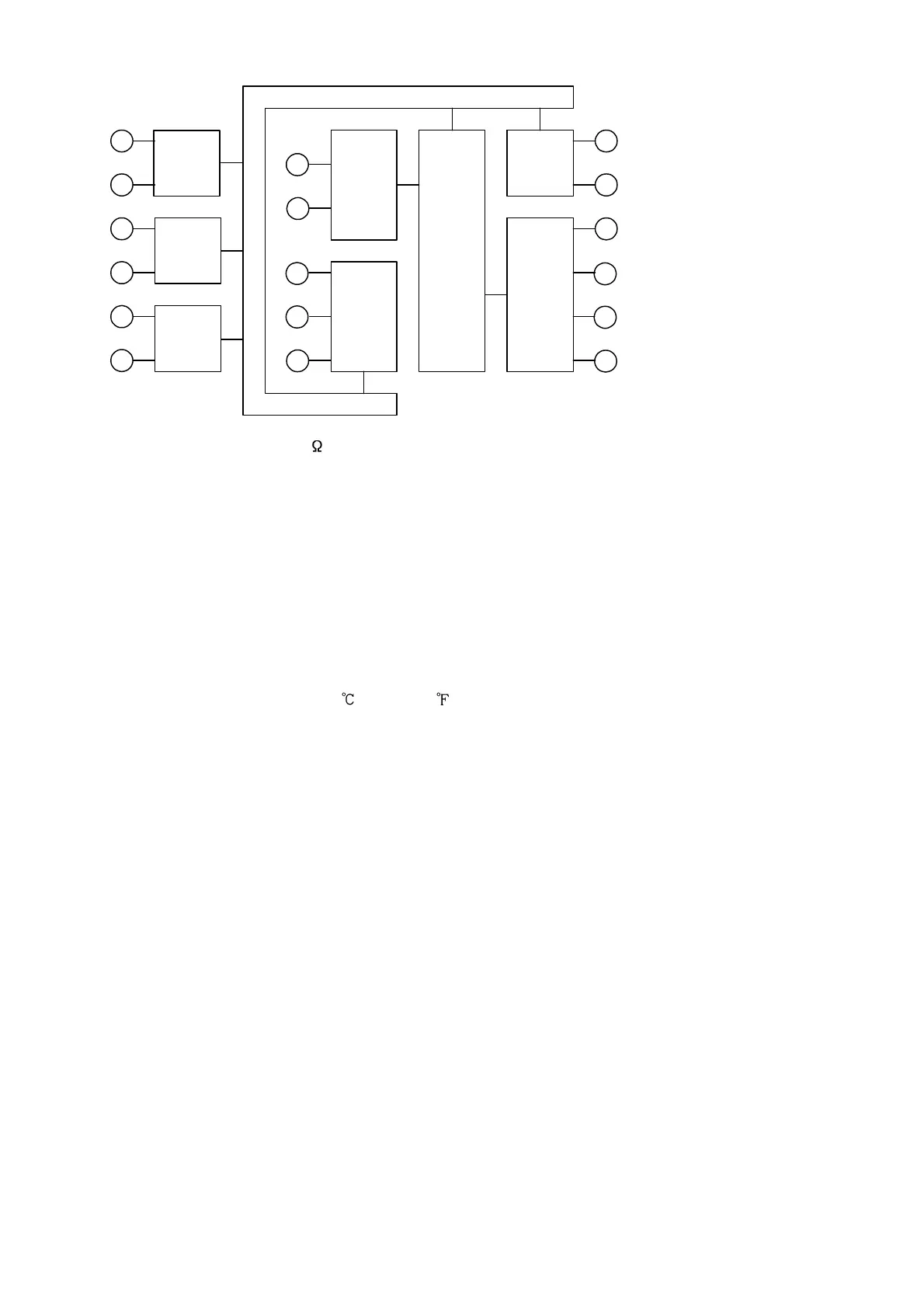

Circuit insulation configuration
Insulation resistance: 10 M or more, at 500 V DC
Dielectric strength: 1.5 kV AC for 1 minute between input terminal and power terminal
1.5 kV AC for 1 minute between output terminal and power terminal
Supply voltage: 100 to 240V AC 50/60Hz, 24V AC/DC 50/60 Hz
Allowable voltage fluctuation: 100 to 240 V AC: 85 to 264 V AC,
24 V AC/DC: 20 to 28 V AC/DC
Power consumption:
100 to 240 V AC: Approx. 8 VA max.
(When the maximum number of options are ordered: Approx. 11 VA max.)
24 V AC: Approx. 5 VA max. (When the maximum number of options are ordered: Approx. 8 VA max.)
24 V DC: Approx. 5 W max. (When the maximum number of options are ordered: Approx. 8 W max.)
Ambient temperature: -10 to 55 (14 to 131 ) (Non-condensing, No icing)
Ambient humidity: 35 to 85 %RH (Non-condensing)
Weight: Approx. 110 g
External dimensions: 48 x 48 x 68 mm (W x H x D) (Depth of control panel interior: 60 mm)
Material: Flame-resistant resin (Case)
Color: Black (Case)
1
2
A1
output
3
4
5
6
External
reset
CPU
RS-485
OUT1
7
8
9
Electrically insulated
11
10
12
17
18
17
16
18
A2
output
Power
supply
Input
