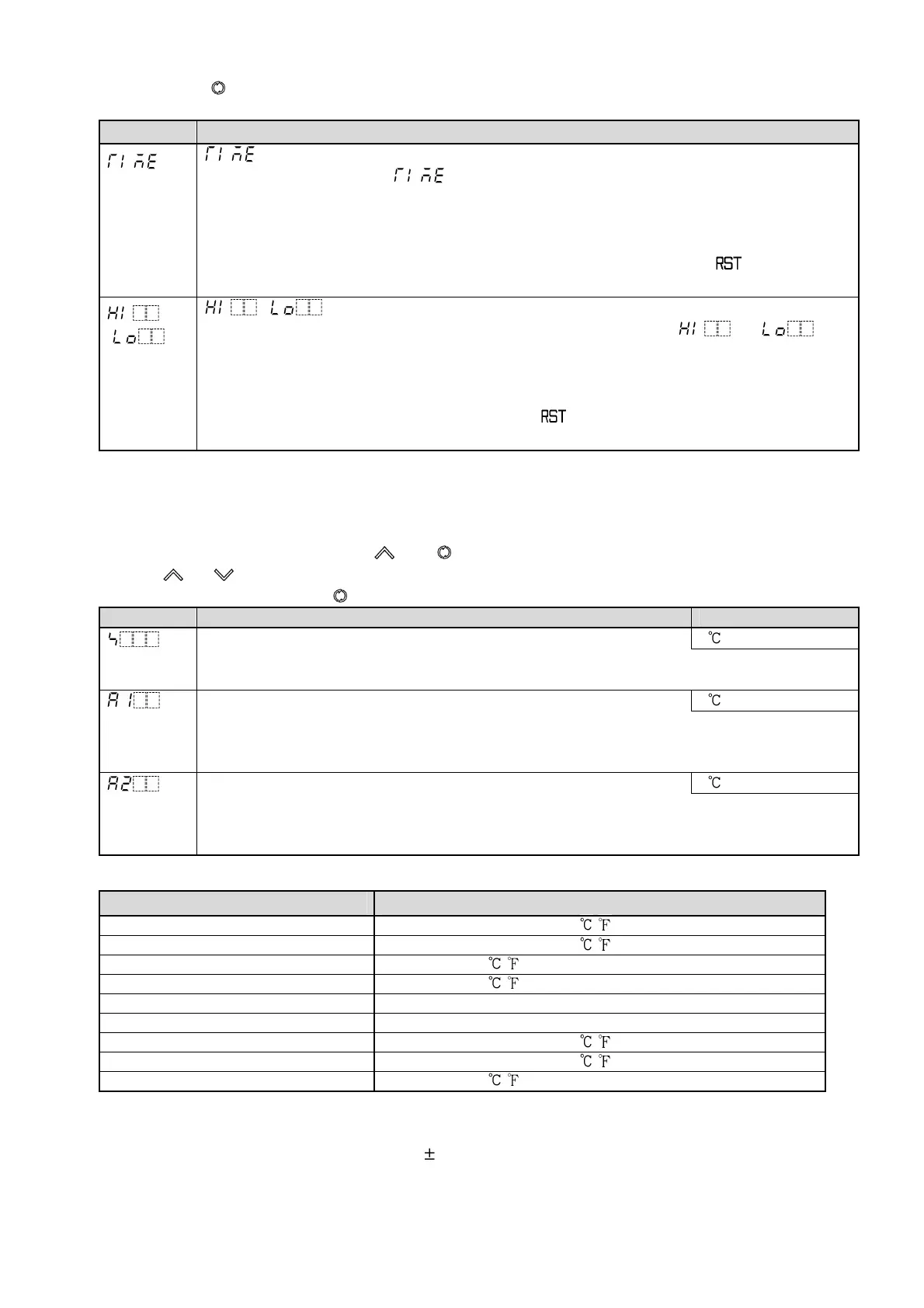

5.2 Display mode
Selects an item to be indicated in the PV and SV Displays.
Every time the key is pressed in the PV/SV Display Mode, the following indications are switched.
When power is turned ON, the PV Display indicates PV, and the SV Display indicates SV.
Display Name, Function, Setting range
,
EXC
duration
time
, EXCEEDED indicator lighting duration time
The PV Display indicates , and the SV Display indicates “EXCEEDED indicator
lighting duration time”.
• Measurement range: 0.00 to 99.59 (The time unit can be selected in [EXCEEDED
indicator lighting duration time unit] in Setup mode.)
• Reverts to the default value (0.00 Hour.Minute/Minute.Second) if the key is
pressed or the External reset input terminals 17 and 18 are shorted.
( ),
Max (Min)
value
( ), Maximum (Minimum) value indication
• While the EXCEEDED indicator lights, the PV Display indicates or , and
the SV Display indicates the maximum or minimum value.
If High limit control action (or Low limit control action) is selected in [High/Low limit
control] in Setup mode, the maximum value (or minimum value) is indicated.
• Reverts to the current PV (input value) if the key is pressed or the External reset
input terminals 17 and 18 are shorted.
5.3 Main setting mode
Sets SV, A1 and A2 value.
To enter Main setting mode, press the and keys (in that order) together in PV/SV Display Mode.
Use the or key for settings (or selections).
To register the set data, use the key.
Character Name, Function, Setting range Default value
SV 0
• Sets SV (desired value).
• Setting range: Scaling low limit to Scaling high limit
A1 value 0
• Sets the action point of A1 output.
• Not available if No alarm is selected in [A1 type].
• Setting range: Refer to (Table 5.3-1).
A2 value 0
• Sets the action point of A2 output.
• Not available if No alarm is selected in [A2 type].
• Setting range: Refer to (Table 5.3-1).
(Table 5.3-1)
Alarm type Setting range
High limit alarm – (Input span) to input span ( ) *1
Low limit alarm – (Input span) to input span ( ) *1
High/Low limits alarm 0 to input span ( ) *1
High/Low limit range alarm 0 to input span ( ) *1
Process high alarm Input range low limit value to input range high limit value *2
Process low alarm Input range low limit value to input range high limit value *2
High limit alarm with standby – (Input span) to input span ( ) *1
Low limit alarm with standby – (Input span) to input span ( ) *1
High/Low limits alarm with standby 0 to input span ( ) *1
• When input has a decimal point, the negative low limit value is –199.9, and the positive high limit
value is 999.9.
• All alarm actions except process alarm are deviation setting from the SV (desired value).
*1: For DC input, the input span is the same as the scaling span.
*2: For DC input, input range low (or high) limit value is the same as scaling low (or high) limit value.
