Shinko BCS2R Series User Manual

9
After the power is turned on, the sensor input characters and temperature unit are indicated in the PV
Display, and the input range high limit value is indicated in the SV Display for approximately 3 seconds.
See (Table 5-1).
(If any other value is set in [Scaling high limit], the value is indicated in the SV Display)
During this time, all outputs and the LED indicators are in OFF status.
Limit control will then start, indicating the PV (process variable) in the PV Display, and SV (desired value)
in the SV Display.

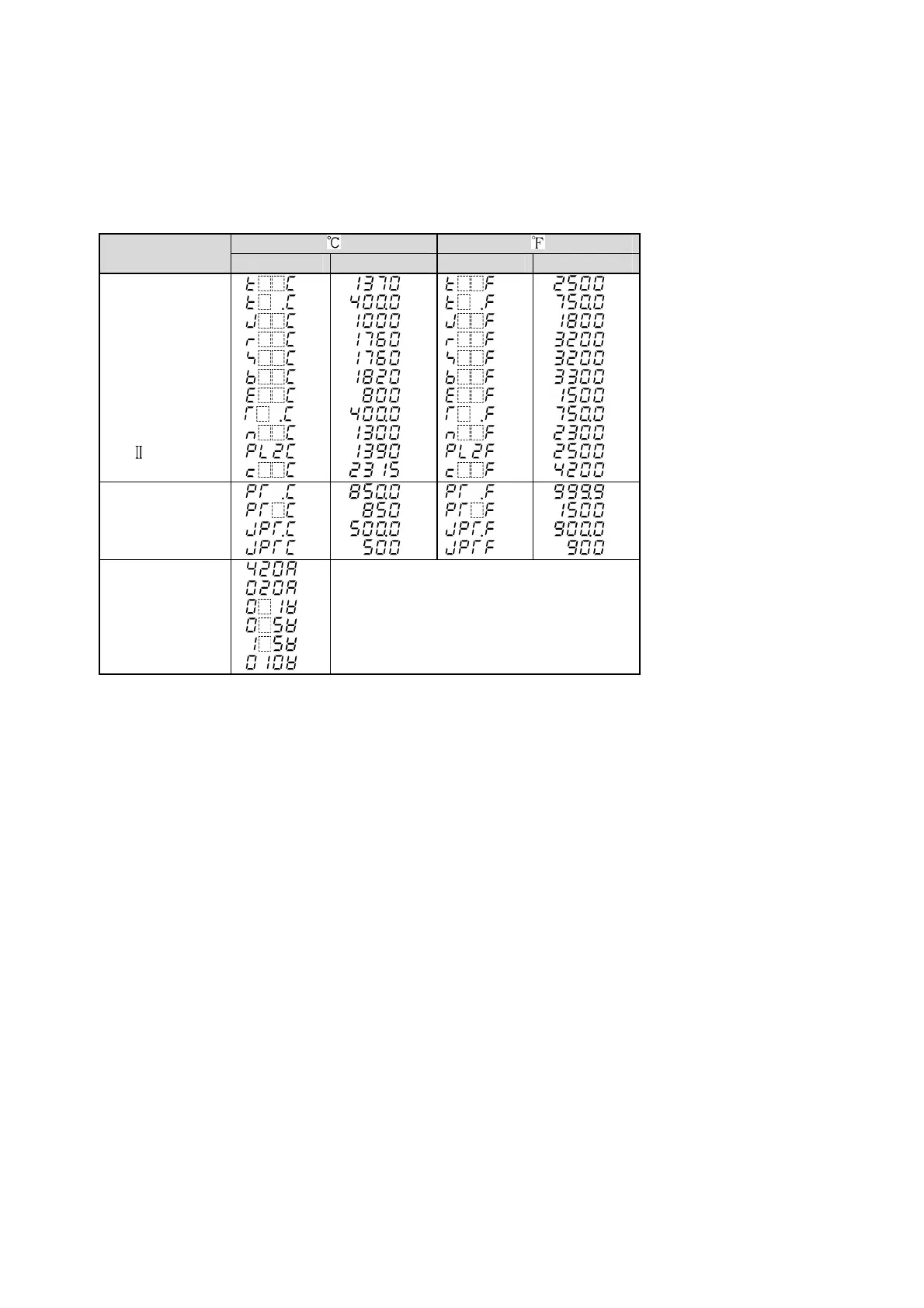

(Table 5-1)
Sensor input
PV Display SV Display PV Display SV Display
K
J
R
S
B
E
T
N
PL-
C (W/Re5-26)
Pt100
JPt100
4 to 20 mA DC
0 to 20 mA DC
0 to 1 V DC
0 to 5 V DC
1 to 5 V DC
0 to 10 V DC
Scaling high limit value
