3.4 Mounting
Mount the controller vertically to the flat, rigid panel to ensure it adheres to the Drip-proof/Dust-proof
specification (IP66).
Mountable panel thickness: 1 to 5 mm
(1) If Drip-proof/Dust-proof specification (IP66) is necessary, mount the included gasket.
If lateral close mounting is used for the controller, IP66 specification (Drip-proof/Dust-proof)
may be compromised, and all warranties will be invalidated.
If Drip-proof/Dust-proof specification (IP66) is not necessary, it is not necessary to mount the
gasket.

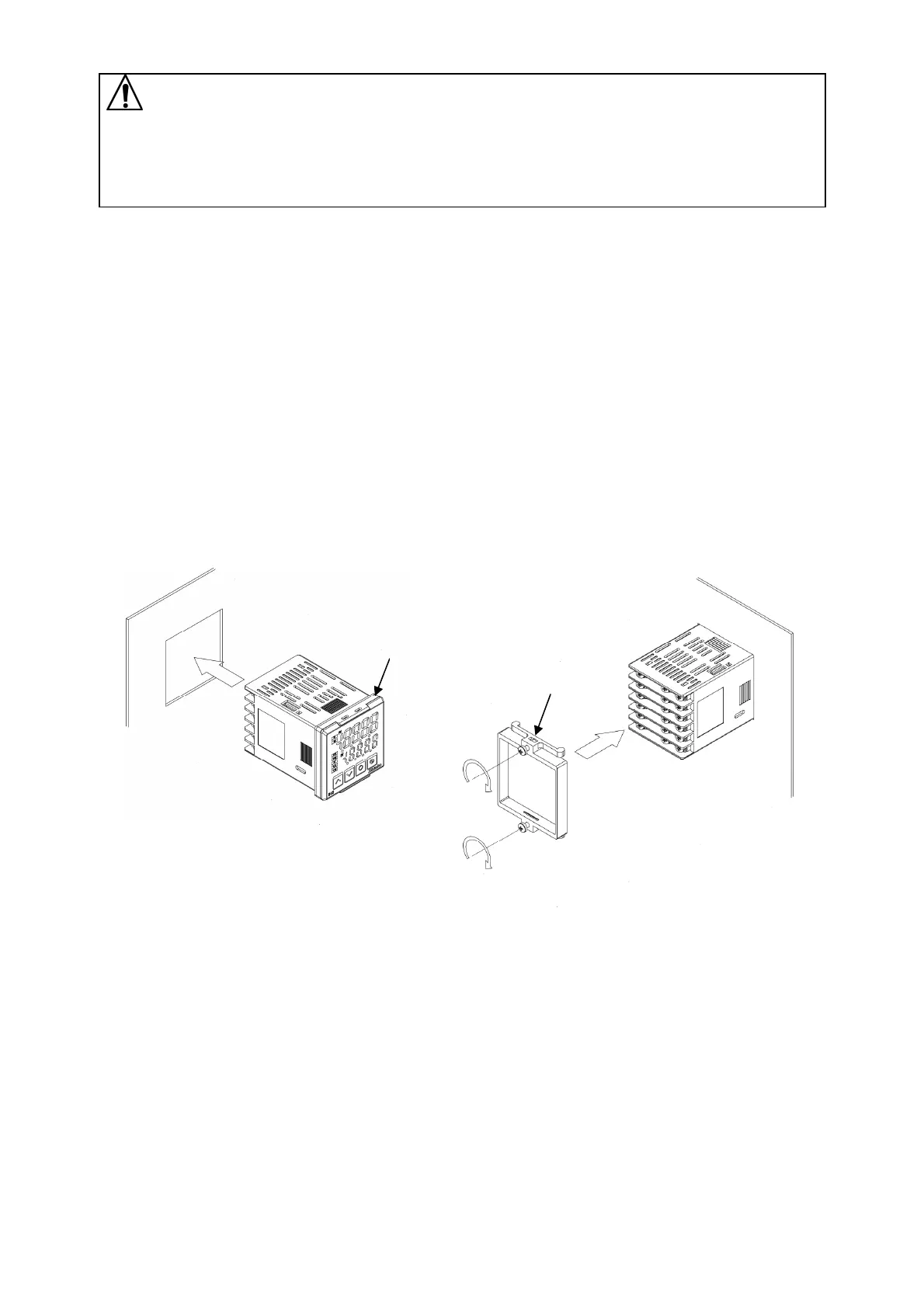

(2) Insert the controller from the front side of the control panel. (Fig. 3.4-1)
(3) Insert the mounting frame until it comes into contact with the panel, and fasten with screws.
Tighten screws with one rotation upon the screw tips touching the panel. (Fig. 3.4-2)
The torque is approximately 0.15 N•m.
(Fig. 3.4-1) (Fig. 3.4-2)
Caution
As the mounting frame of the BCS2 is made of resin, do not use excessive force while
tightening screws, or the mounting frame could be damaged.
Tighten screws with one rotation upon the screw tips touching the panel.
The torque is 0.15 N•m.
Mounting frame
Gasket
