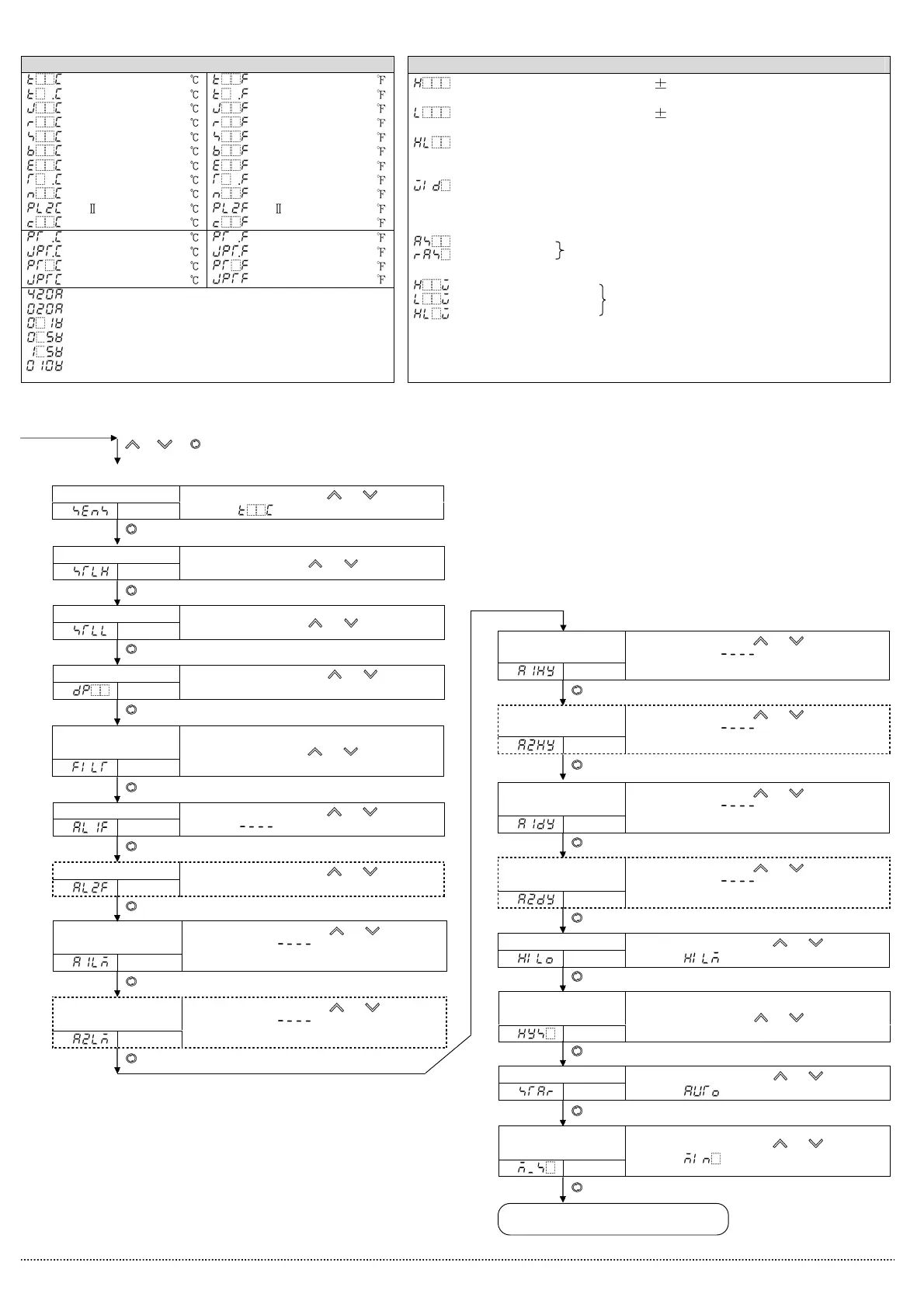

Scaling low limit
PV SV
Value
• Set the value with the or key.
Scaling high limit
PV SV
Value
• Set the value with the or key.
Decimal point place
PV SV
Selection
• Make a selection with the or key.
• Available for Direct current, voltage input
PV filter time
constant
PV SV
Value
• Set the value with the or key.
OUT1 ON/OFF action
hysteresis
PV SV
Value
• Set the value with the or key.
[Setup mode]
Auto/Manual start
PV SV
Selection
• Make a selection with the or key.
• Default:
EXCEEDED indicator
lighting duration time unit
PV SV
Selection
• Make a selection with the or key.
• Default:
Reverts to the PV/SV Display.
A1 type
PV SV
Selection
• Make a selection with the or key.
• Default:
A1 hysteresis
PV SV
Value
• Set the value with the or key.
• Not available if is selected in [A1 type].
A2 type
PV SV
Selection
• Make a selection with the or key.
• Available when A2 output is ordered.
A1 action
Energized/De-energized
PV SV
Selection
• Make a selection with the or key.
• Not available if is selected in [A1 type].
A2 action
Energized/De-energized
PV SV
Selection
• Make a selection with the or key.
• Not available if is selected in [A2 type].
A1 action
delay time
PV SV
Value
• Set the value with the or key.
• Not available if is selected in [A1 type].
High/Low limit control
PV SV
Selection
• Make a selection with the or key.
• Default:
A2 action
delay time
PV SV
Value
• Set the value with the or key.
• Not available if is selected in [A2 type].
A2 hysteresis
PV SV
Value
• Set the value with the or key.
• Not available if is selected in [A2 type].
(2)
Input type (character indication) and range
: K -200 to 1370
: -199.9 to 400.0
: J -200 to 1000
: R 0 to 1760
: S 0 to 1760
: B 0 to 1820
: E -200 to 800
: T -199.9 to 400.0
: N -200 to 1300
: PL- 0 to 1390
: C(W/Re5-26) 0 to 2315
: K -320 to 2500
: -199.9 to 750.0
: J -320 to 1800
: R 0 to 3200
: S 0 to 3200
: B 0 to 3300
: E -320 to 1500
: T -199.9 to 750.0
: N -320 to 2300
: PL- 0 to 2500
: C(W/Re5-26) 0 to 4200
: Pt100 -199.9 to 850.0
: JPt100 -199.9 to 500.0
: Pt100 -200 to 850
: JPt100 -200 to 500
: Pt100 -199.9 to 999.9
: JPt100 -199.9 to 900.0
: Pt100 -300 to 1500
: JPt100 -300 to 900
: 4 to 20mA DC -1999 to 9999
: 0 to 20mA DC -1999 to 9999
: 0 to 1V DC -1999 to 9999
: 0 to 5V DC -1999 to 9999
: 1 to 5V DC -1999 to 9999
: 1 to 10V DC -1999 to 9999
Alarm type
(High limit alarm) : The alarm action is deviation setting from the SV. The alarm is
activated if the PV (process variable) reaches the high limit set value.
(Low limit alarm) : The alarm action is deviation setting from the SV. The alarm is
activated if the PV (process variable) goes under the low limit set value.
(High/Low limits alarm): Combines High limit and Low limit alarm actions. When PV
(process variable) reaches high limit set value or goes under
the low limit set value, the alarm is activated.
(High/Low limit range alarm): When PV (process variable) is between the high limit
set value and low limit set value, the alarm is activated.
If PV exceeds the high limit set value or goes under the low limit
set value, the alarm output is turned off.
(Process high alarm) Within the scale range of the controller, alarm action points
(Process low alarm) can be set at random and if the PV (process variable) reaches
the randomly set action point, the alarm is activated.
(High limit alarm with standby) When the power to the controller is turned on, even if
(Low limit alarm with standby) the PV (process variable) enters the alarm action range,
(High/Low limits with standby) the alarm is not activated. Even if the PV enters the
alarm action range due to SV change during running,
the alarm is not activated, either. If the controller is
allowed to keep running, once the input exceeds the
alarm action point, the standby function will be released.
Input type
PV SV
Selection
• Make a selection with the or key.
• Default:
+ + (3 sec)
(3)
(5)
(4)
(1)
