Shinko BCS2R Series User Manual

2
1. Model
1.1 Model
BCS2 R 0 -
OUT1 R Limit control output (Relay contact: 1a)
0 100 to 240 V AC (Standard)Power supply
voltage
1 24 V AC/DC
Input 0 Multi-range (*1)
0 No option 1 needed.
1 EV2 A2 output (Alarm type can be selected by keypad) (*2)
0 No option 2 needed.
6 C5 Serial communication (RS-485)
Option
9 EI External reset input
(*1) Thermocouple, RTD, Direct current and DC voltage can be selected by keypad.
(*2) Alarm actions (9 types and No alarm action) and Energized/De-energized can be selected by keypad.

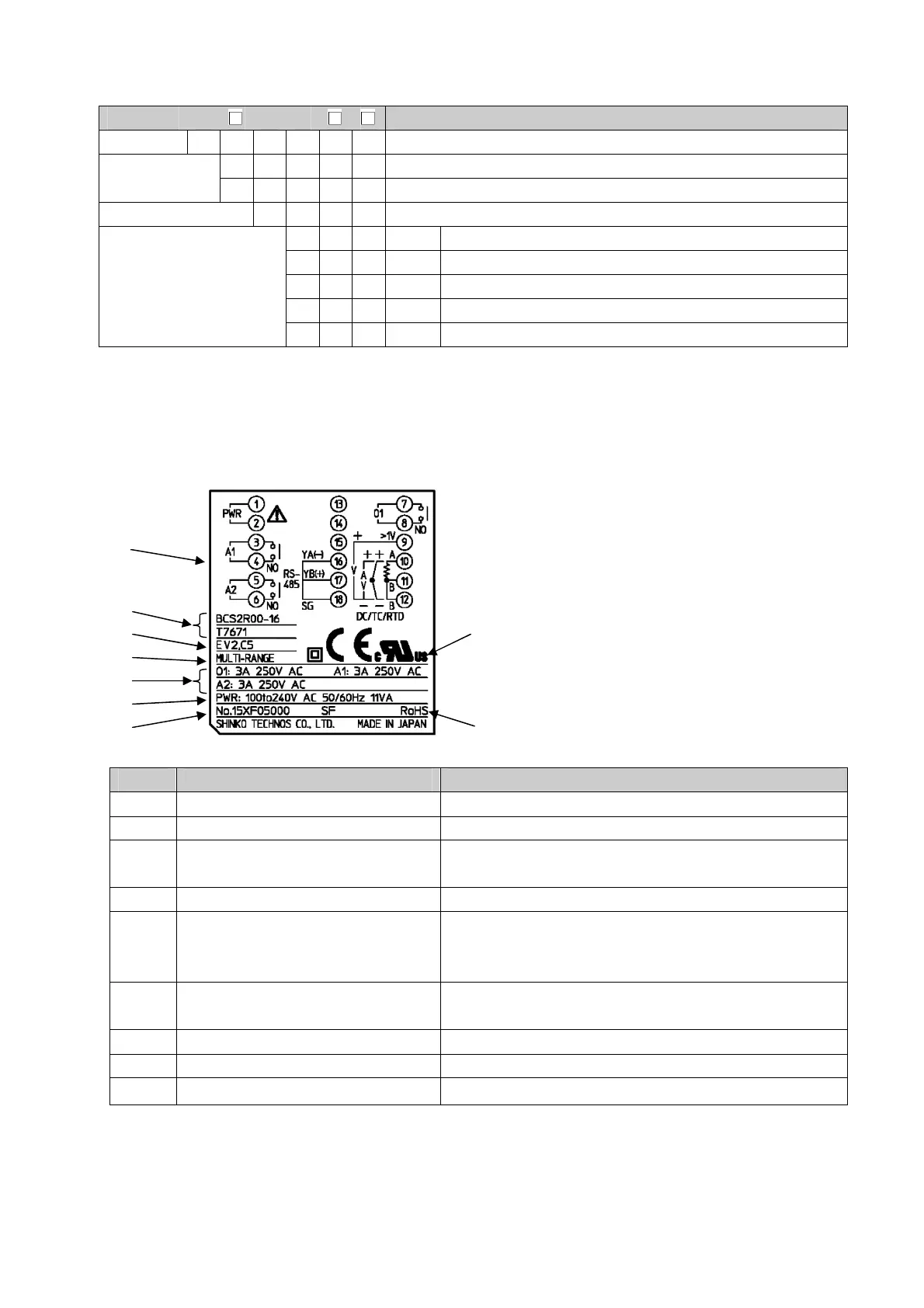

1.2 How to read the model label
The model label is attached to the left side of the case.
No. Description Example
(1) Terminal arrangement (*1)
(2) Model BCS2R00-16
(3) Option EV2 (A2 output)
C5 (Serial communication)
(4) Input Multi-range input
(5) Limit control output,
Event output
O1: 3 A 250 V AC (Limit control output OUT1)
EV1: 3 A 250 V AC (A1 output)
EV2: 3 A 250 V AC (A2 output)
(6) Power supply voltage,
Power consumption
100 to 240 V AC, 50/60 Hz,
11 VA
(7) Serial number No. 15XF05000
(8) Safety standard
(9) RoHS directive compliant
(*1) Terminal arrangement diagram differs depending on the model.
(7)
(2)
(3)
(4)
(5)
(6)
(1)
(9)
(8)
