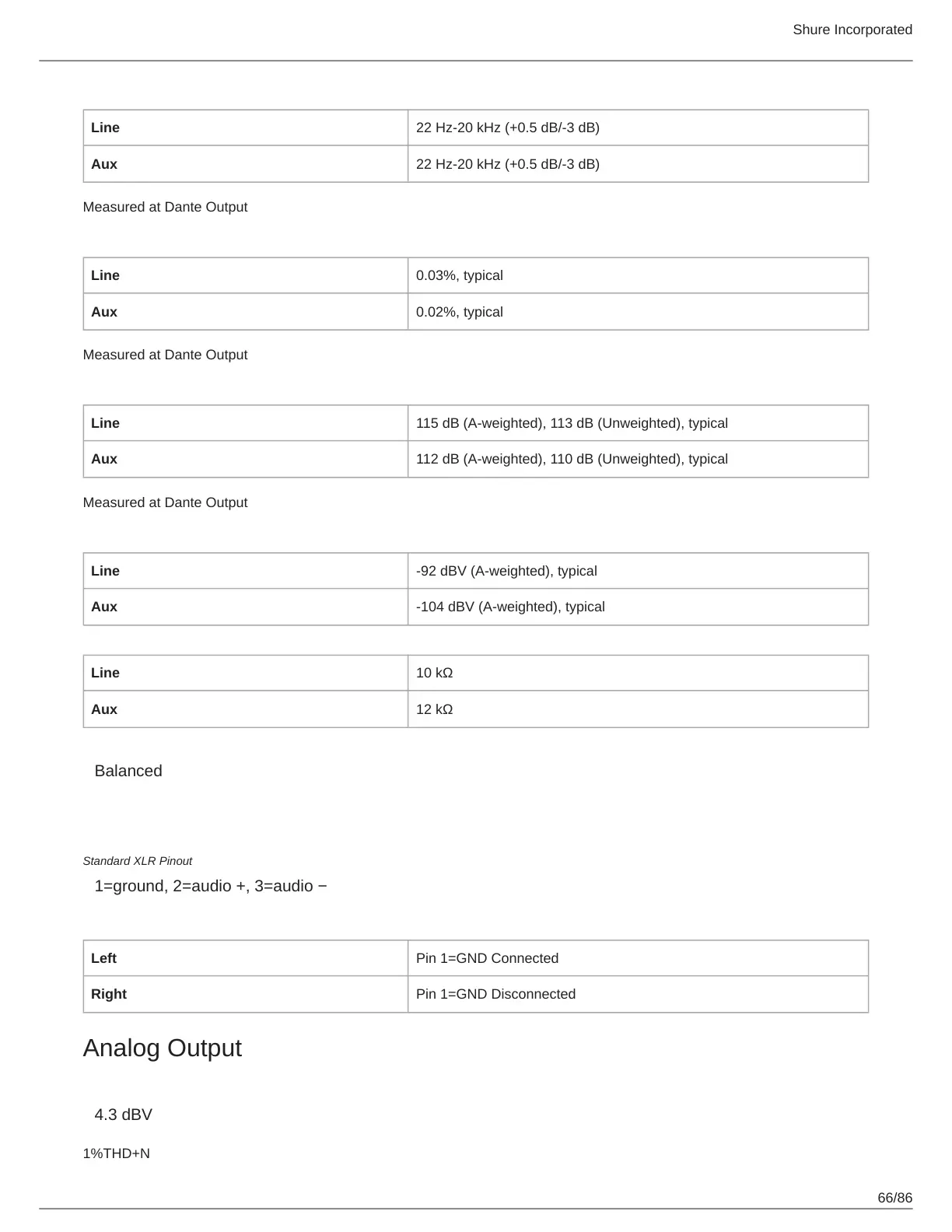

Frequency Response
Line 22 Hz20 kHz (+0.5 dB/3 dB)
Aux 22 Hz20 kHz (+0.5 dB/3 dB)
Measured at Dante Output
Total Harmonic Distortion
Line 0.03%, typical
Aux 0.02%, typical
Measured at Dante Output
Dynamic Range
Line 115 dB (Aweighted), 113 dB (Unweighted), typical
Aux 112 dB (Aweighted), 110 dB (Unweighted), typical
Measured at Dante Output
Preamplifier Equivalent Input Noise (EIN)
Line 92 dBV (Aweighted), typical
Aux 104 dBV (Aweighted), typical
Input Impedance
Line 10 kΩ
Aux 12 kΩ
Configuration
Balanced
Type
Pin Assignments
Standard XLR Pinout
1=ground, 2=audio +, 3=audio −
GND Lift
Left Pin 1=GND Connected
Right Pin 1=GND Disconnected
Analog Output
Maximum Output Level
4.3 dBV
1%THD+N
