Shure MXA710 Series User Manual

Shure Incorporated
30/37
1.
2.
3.
4.

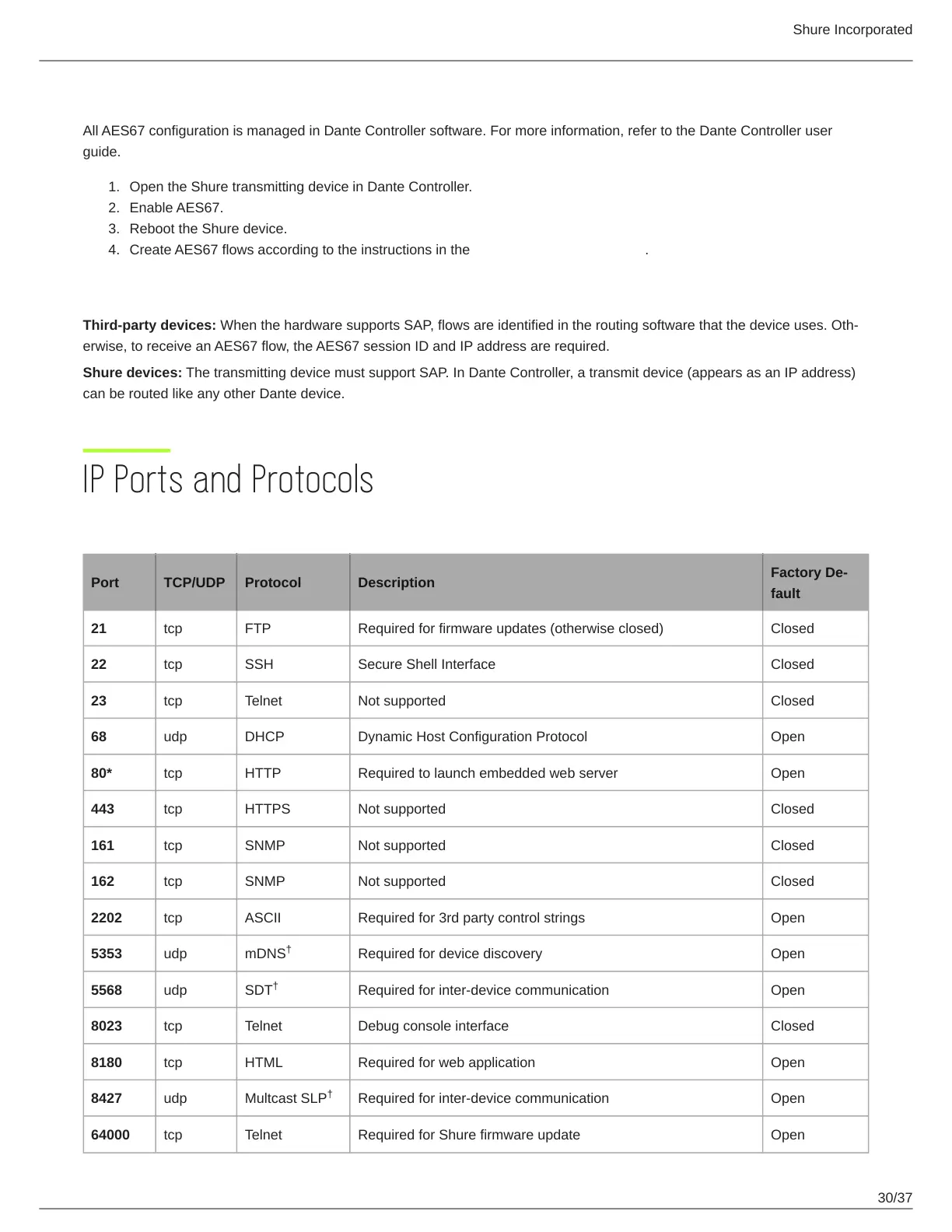

Sending Audio from a Shure Device
All AES67 configuration is managed in Dante Controller software. For more information, refer to the Dante Controller user
guide.
Open the Shure transmitting device in Dante Controller.
Enable AES67.
Reboot the Shure device.
Create AES67 flows according to the instructions in the Dante Controller user guide.
Receiving Audio from a Device Using a Different Audio Network Protocol
Third-party devices: When the hardware supports SAP, flows are identified in the routing software that the device uses. Oth
erwise, to receive an AES67 flow, the AES67 session ID and IP address are required.
Shure devices: The transmitting device must support SAP. In Dante Controller, a transmit device (appears as an IP address)
can be routed like any other Dante device.
IP Ports and Protocols
Shure Control
Port TCP/UDP Protocol Description
FactoryDe
fault
21 tcp FTP Required for firmware updates (otherwise closed) Closed
22 tcp SSH Secure Shell Interface Closed
23 tcp Telnet Not supported Closed
68 udp DHCP Dynamic Host Configuration Protocol Open
80* tcp HTTP Required to launch embedded web server Open
443 tcp HTTPS Not supported Closed
161 tcp SNMP Not supported Closed
162 tcp SNMP Not supported Closed
2202 tcp ASCII Required for 3rd party control strings Open
5353 udp mDNS Required for device discovery Open
5568 udp SDT Required for inter-device communication Open
8023 tcp Telnet Debug console interface Closed
8180 tcp HTML Required for web application Open
8427 udp Multcast SLP Required for inter-device communication Open
64000 tcp Telnet Required for Shure firmware update Open
†
†
†

Shure MXA710 Series Specifications

General

Type	Linear Array Microphone
Channels	8
Connector Type	RJ45
Frequency Response	50 Hz to 20 kHz
Polar Pattern	Steerable Coverage
Connectivity	Dante, AES67
Mounting Options	Wall, Ceiling, Table
Power Requirements	Power over Ethernet (PoE)
