Shure Incorporated
34/37
•
•
MXA710-4FT 79.1 dB
Built-in Digital Signal Processing
Automatic mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Com
pressor, Delay, Equalizer (4-band Parametric), Mute, Gain (140 dB range)
Acoustic Echo Cancellation Tail Length
Up to 250 ms
Networking
Cable Requirements
Cat 5e or higher (shielded cable recommended)

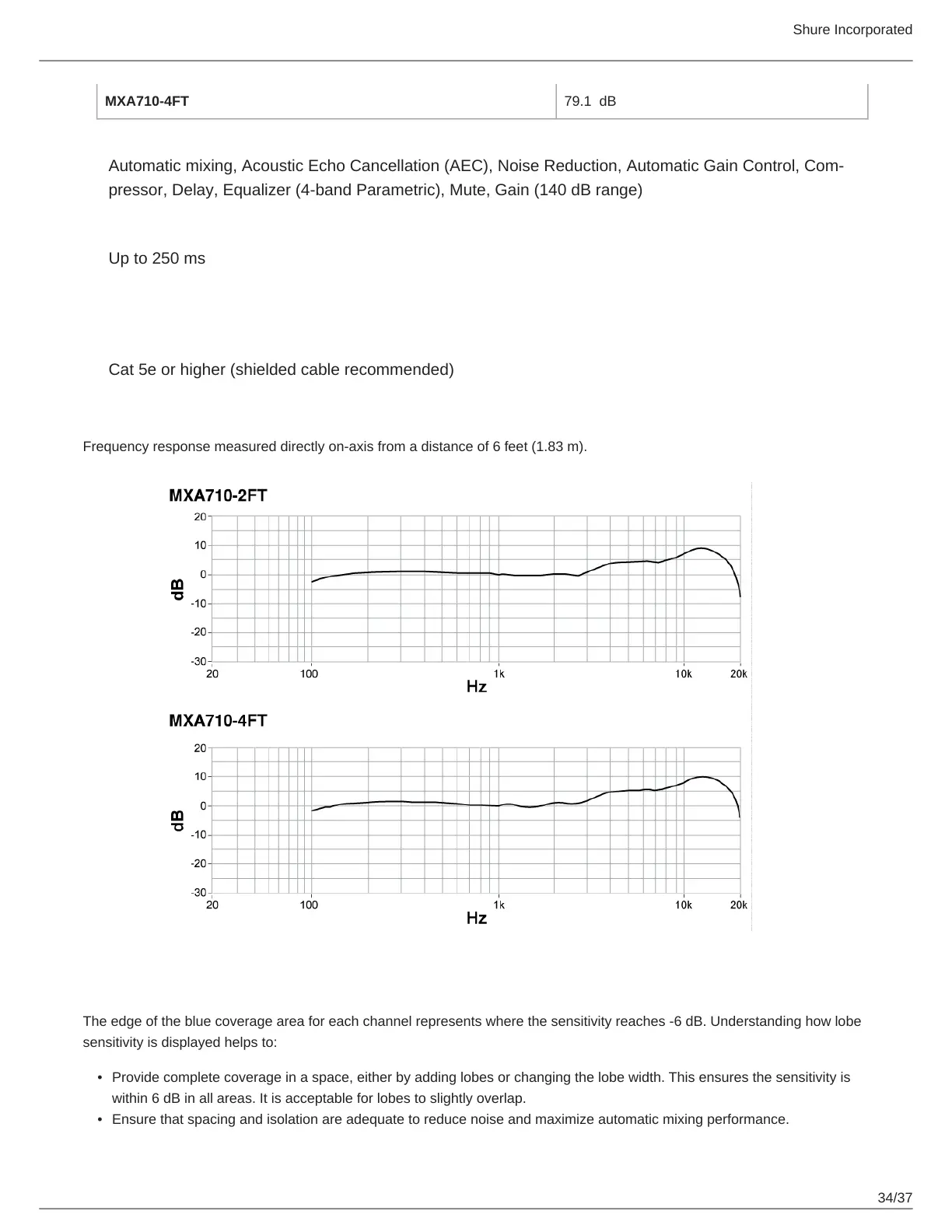

MXA710 Frequency Response
Frequency response measured directly on-axis from a distance of 6 feet (1.83 m).
Lobe Sensitivity
The edge of the blue coverage area for each channel represents where the sensitivity reaches -6 dB. Understanding how lobe
sensitivity is displayed helps to:
Provide complete coverage in a space, either by adding lobes or changing the lobe width. This ensures the sensitivity is
within 6 dB in all areas. It is acceptable for lobes to slightly overlap.
Ensure that spacing and isolation are adequate to reduce noise and maximize automatic mixing performance.
