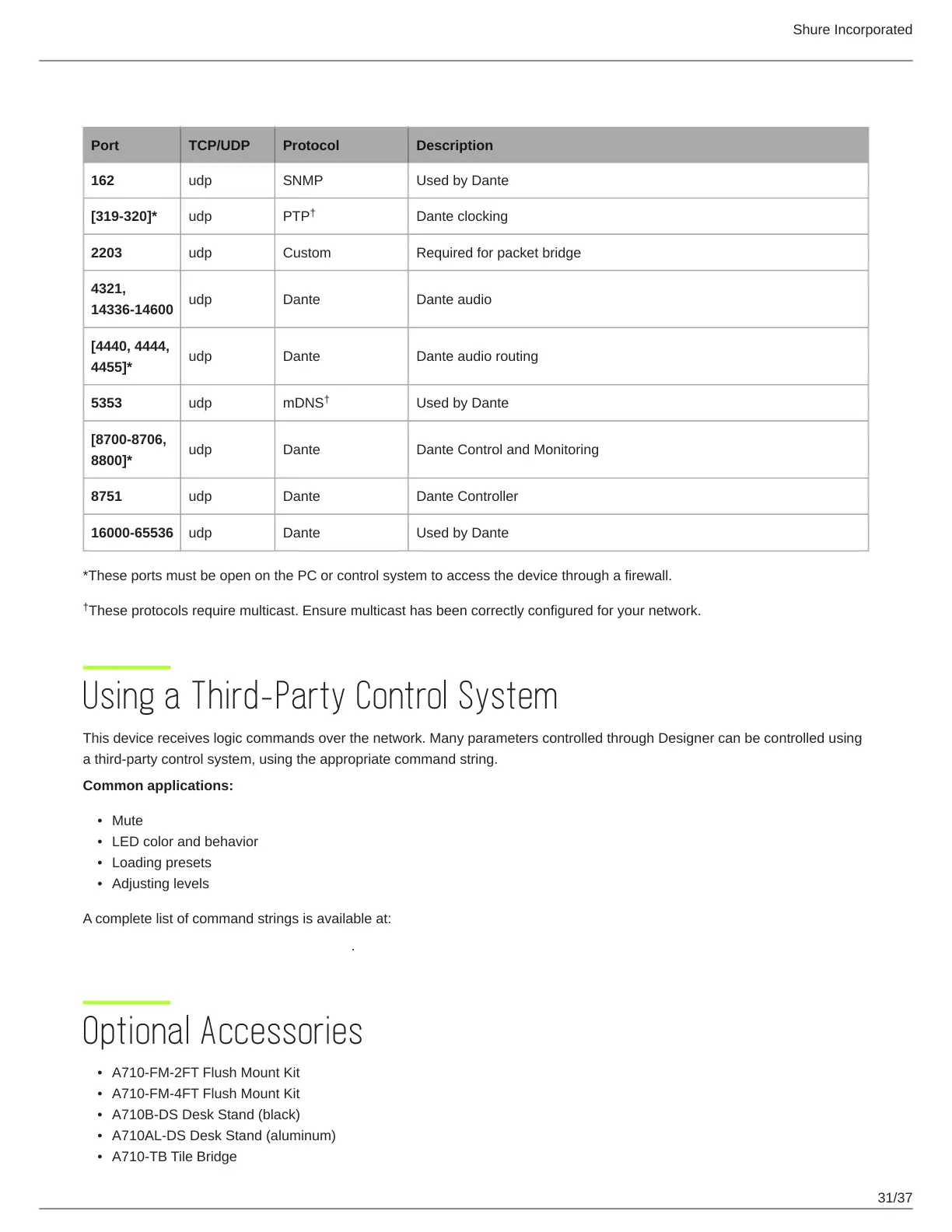

Dante Audio & Controller
Port TCP/UDP Protocol Description
162 udp SNMP Used by Dante
[319-320]* udp PTP Dante clocking
2203 udp Custom Required for packet bridge
4321,
14336-14600
udp Dante Dante audio
[4440, 4444,
4455]*
udp Dante Dante audio routing
5353 udp mDNS Used by Dante
[8700-8706,
8800]*
udp Dante Dante Control and Monitoring
8751 udp Dante Dante Controller
16000-65536 udp Dante Used by Dante
*These ports must be open on the PC or control system to access the device through a firewall.
These protocols require multicast. Ensure multicast has been correctly configured for your network.
Using a Third-Party Control System
This device receives logic commands over the network. Many parameters controlled through Designer can be controlled using
a third-party control system, using the appropriate command string.
Common applications:
Mute
LED color and behavior
Loading presets
Adjusting levels
A complete list of command strings is available at:
pubs.shure.com/command-strings/MXA710.
Optional Accessories
A710-FM-2FT Flush Mount Kit
A710-FM-4FT Flush Mount Kit
A710B-DS Desk Stand (black)
A710AL-DS Desk Stand (aluminum)
A710-TB Tile Bridge
†
†
†

Shure MXA710 Series Specifications

General

Type	Linear Array Microphone
Channels	8
Connector Type	RJ45
Frequency Response	50 Hz to 20 kHz
Polar Pattern	Steerable Coverage
Connectivity	Dante, AES67
Mounting Options	Wall, Ceiling, Table
Power Requirements	Power over Ethernet (PoE)
