Shure MXA710 Series User Manual

Shure Incorporated
7/37
1.

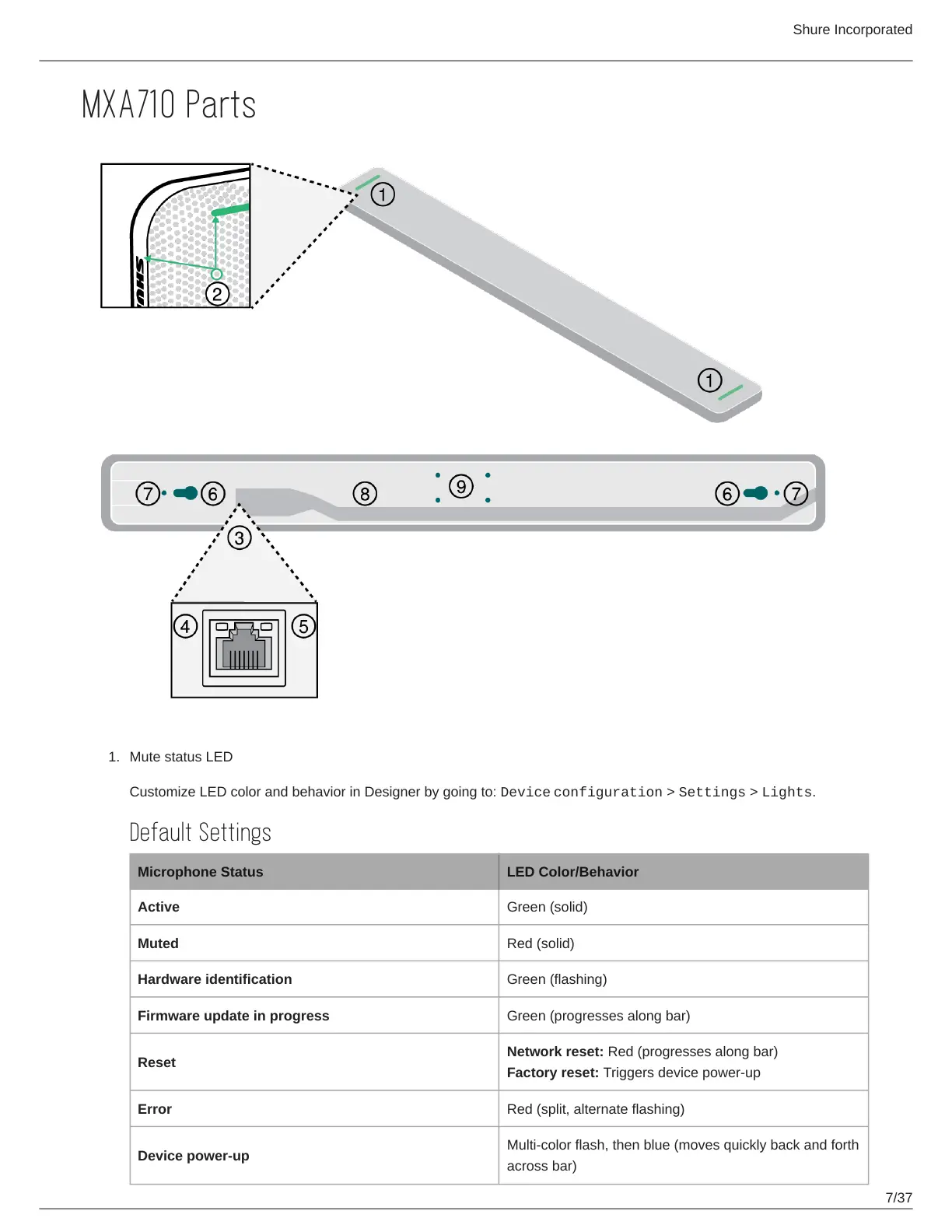

MXA710 Parts
Mute status LED
Customize LED color and behavior in Designer by going to: Device configuration > Settings > Lights.
Default Settings
Microphone Status LED Color/Behavior
Active Green (solid)
Muted Red (solid)
Hardware identification Green (flashing)
Firmware update in progress Green (progresses along bar)
Reset
Network reset: Red (progresses along bar)
Factory reset: Triggers device power-up
Error Red (split, alternate flashing)
Device power-up
Multi-color flash, then blue (moves quickly back and forth
across bar)

Shure MXA710 Series Specifications

General

Type	Linear Array Microphone
Channels	8
Connector Type	RJ45
Frequency Response	50 Hz to 20 kHz
Polar Pattern	Steerable Coverage
Connectivity	Dante, AES67
Mounting Options	Wall, Ceiling, Table
Power Requirements	Power over Ethernet (PoE)
