Shure MXA710 Series User Manual

Shure Incorporated
12/37

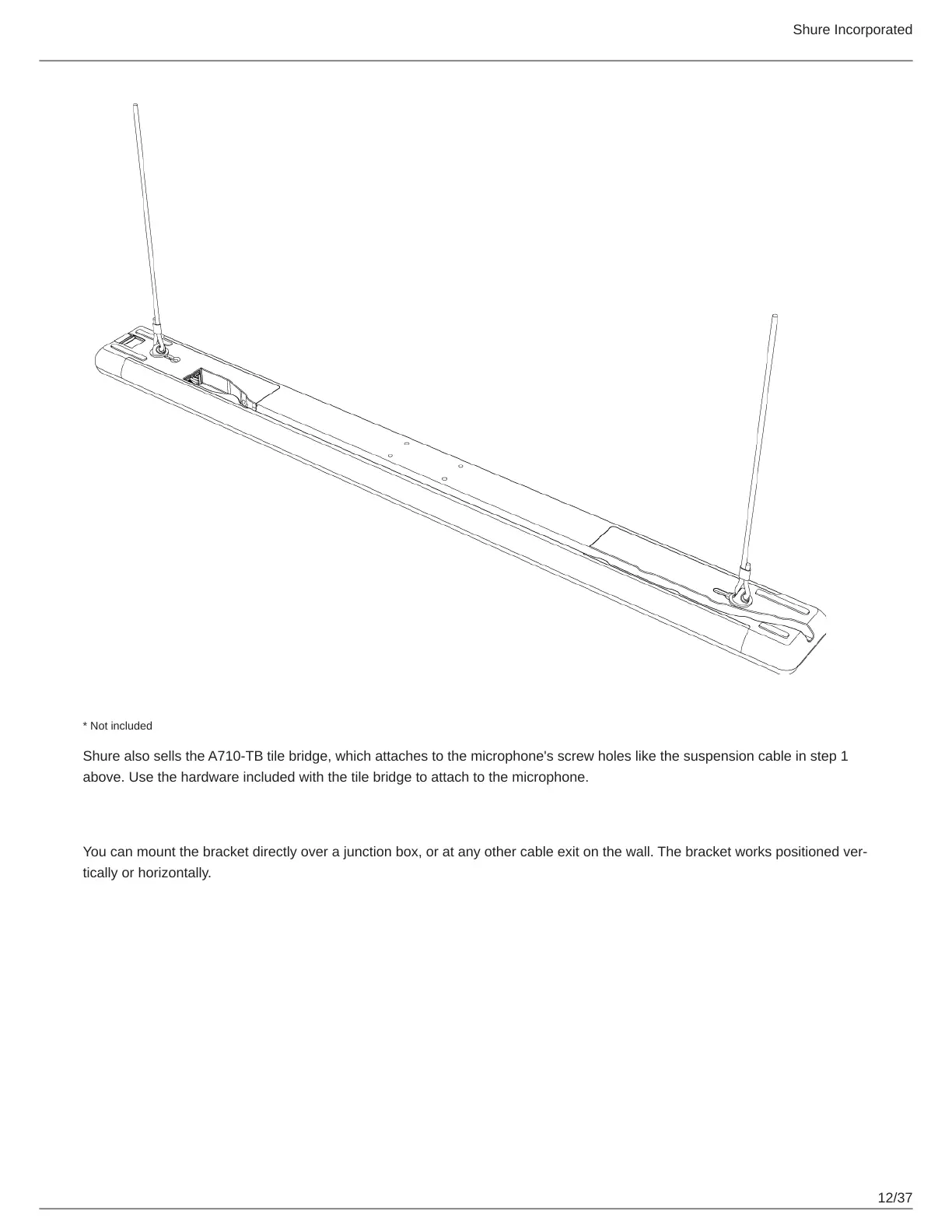

* Not included
Shure also sells the A710-TB tile bridge, which attaches to the microphone's screw holes like the suspension cable in step 1
above. Use the hardware included with the tile bridge to attach to the microphone.
Installing the Wall-Mounting Bracket
You can mount the bracket directly over a junction box, or at any other cable exit on the wall. The bracket works positioned ver
tically or horizontally.

Shure MXA710 Series Specifications

General

Type	Linear Array Microphone
Channels	8
Connector Type	RJ45
Frequency Response	50 Hz to 20 kHz
Polar Pattern	Steerable Coverage
Connectivity	Dante, AES67
Mounting Options	Wall, Ceiling, Table
Power Requirements	Power over Ethernet (PoE)
