A710-MSA Mic Stand Adapter
A710B-2FT-HOUSING (black)
A710W-2FT-HOUSING (white)
A710AL-2FT-HOUSING (aluminum)
A710B-4FT-HOUSING (black)
A710W-4FT-HOUSING (white)
A710AL-4FT-HOUSING (aluminum)

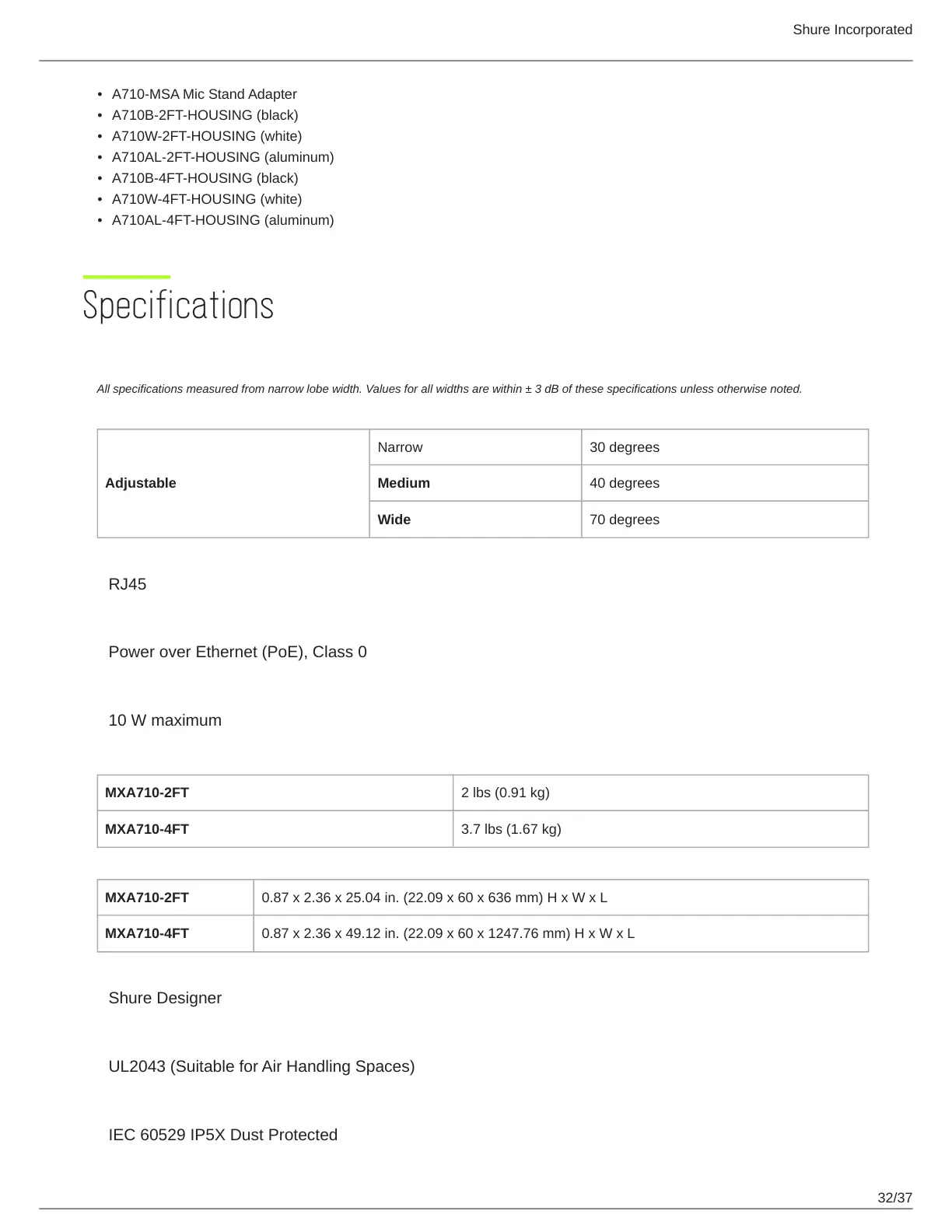

Specifications
General
All specifications measured from narrow lobe width. Values for all widths are within ± 3 dB of these specifications unless otherwise noted.
Lobe Width
Adjustable
Narrow 30 degrees
Medium 40 degrees
Wide 70 degrees
Connector Type
RJ45
Power Requirements
Power over Ethernet (PoE), Class 0
Power Consumption
10 W maximum
Weight
MXA710-2FT 2 lbs (0.91 kg)
MXA710-4FT 3.7 lbs (1.67 kg)
Product Dimensions
MXA710-2FT 0.87 x 2.36 x 25.04 in. (22.09 x 60 x 636 mm) H x W x L
MXA710-4FT 0.87 x 2.36 x 49.12 in. (22.09 x 60 x 1247.76 mm) H x W x L
Control Software
Shure Designer
Plenum Rating
UL2043 (Suitable for Air Handling Spaces)
Dust Protection
IEC 60529 IP5X Dust Protected

Shure MXA710 Series Specifications

General

Type	Linear Array Microphone
Channels	8
Connector Type	RJ45
Frequency Response	50 Hz to 20 kHz
Polar Pattern	Steerable Coverage
Connectivity	Dante, AES67
Mounting Options	Wall, Ceiling, Table
Power Requirements	Power over Ethernet (PoE)
