Shure MXW Series - Inputs;Outputs Tab

45
Software
① Channel Name
Channel name is customizable by clicking in the text box. Names can
be up to 12 characters long.
② Input Gain Setting (A, B)
Sets the analog input gain level: Line (default) or Aux.
③ Input Audio Meter
Displays input audio levels prior to the analog-to-digital converter.
④ Mute Button
Mutes or unmutes the channel's audio. The button illuminates red when
a channel is muted.
⑤ Output Gain
Sets the output gain level.
⑥ Output Audio Meter
Displays output audio levels prior to the digital-to-analog converter.
⑦ Attenuation
Output attenuation is adjustable in 1 dB increments.
⑧ Notes
Save project notes here, such as installation dates or IP information.

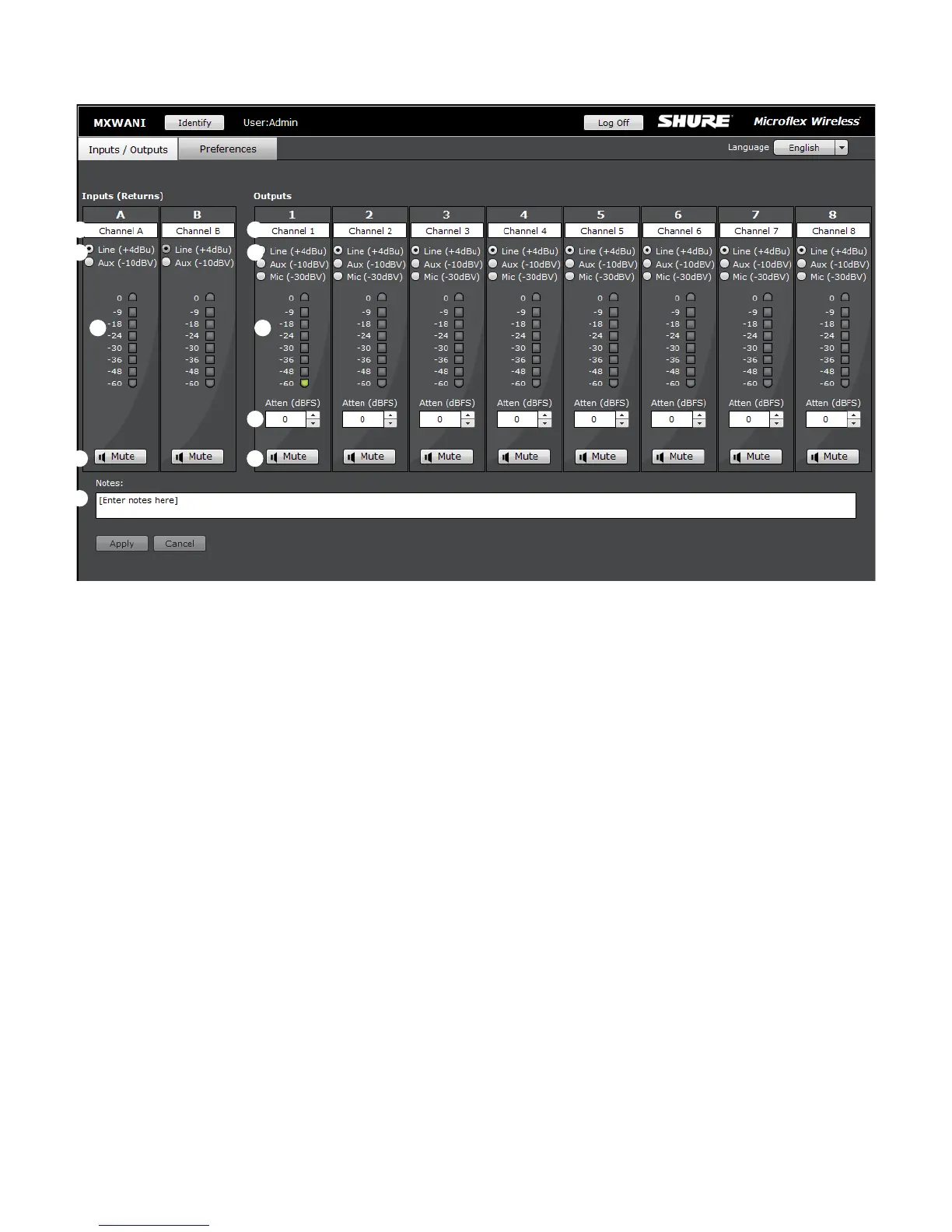

Inputs/Outputs Tab
① ①
②
④ ④
⑤
③
⑥
⑦
⑧
