Shure MXW Series - Networked Charging Station (NCS); Tables and Diagrams

57
Microflex Wireless Specifications

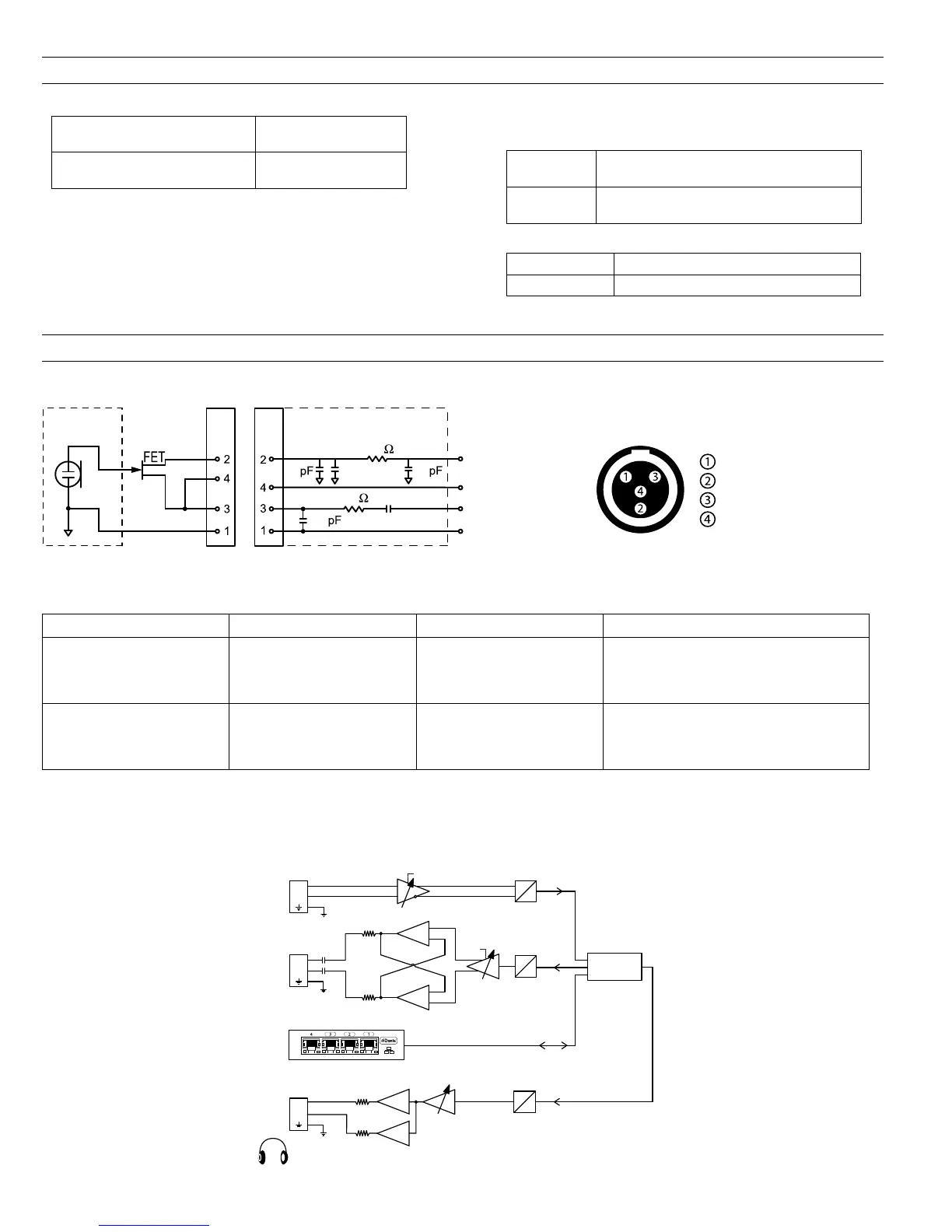

Tables and Diagrams
499
100
39
156
1μF
10μF
39
TA4M Connector
5 V DC
Active Load
Audio Input
Ground
Top view of bodypack
Ground
5 V DC
Audio Input
Active Load
Frequency Range and Microphone Transmitter Output Power
Band Frequency Range Region Power
Z10 1920 to 1930 MHz USA, Canada, Mexico
• Low = −2 dBm (1 mW)
• Medium = 5 dBm (3 mW)
• High = 12 dBm (16 mW)
• Maximum = 19 dBm (80 mW)(
Z11 1880 to 1900 MHz Europe, Asia, Middle-East
• Low = −2 dBm (1 mW)
• Medium = 5 dBm (3 mW)
• High = 12 dBm (16 mW)
• Maximum = 19 dBm (80 mW)*
*MXW1, MXW2 = 17 dBm (50 mW) max.
Networked Charging Station (NCS)
Charge Time
MXW1, MXW6, MXW8 50%=1 hour;
100%=2 hours
MXW2 50%=1.5 hour;
100%=3 hours
Network Interface
10/100 Mbps Ethernet
Power Requirement
15 V DC @ 3.3 A maximum, supplied by external power supply
(tip positive)
Housing
Molded Plastic, Cast Zinc
Dimensions
NCS8 68 mm x 343 mm x 184 mm (2.7 in. x 13.5
in. x 7.25 in.), H x W x D
NCS4 68 mm x 191 mm x 184 mm (2.7 in. x 7.5 in.
x 7.25 in.), H x W x D
Weight
NCS8 2.9 kg (6.4 lbs)
NCS4 1.7 kg (3.7 lbs)
Signal Select
and Control
+
-
+
-
-18 dBFS =
+4 dBu
+
-
A
D
+4 dBu =
-18 dBFS
D
A
D
A
Class 0 PoEuplink
MXWANI Wiring Diagram
Audio Input
Line
Aux
Audio Output
Line
Aux
Mic
Four-Port Gigabit Ethernet Switch
Headphone Output
