Fitting and removing the fl ange | SBM 855 | 33 en

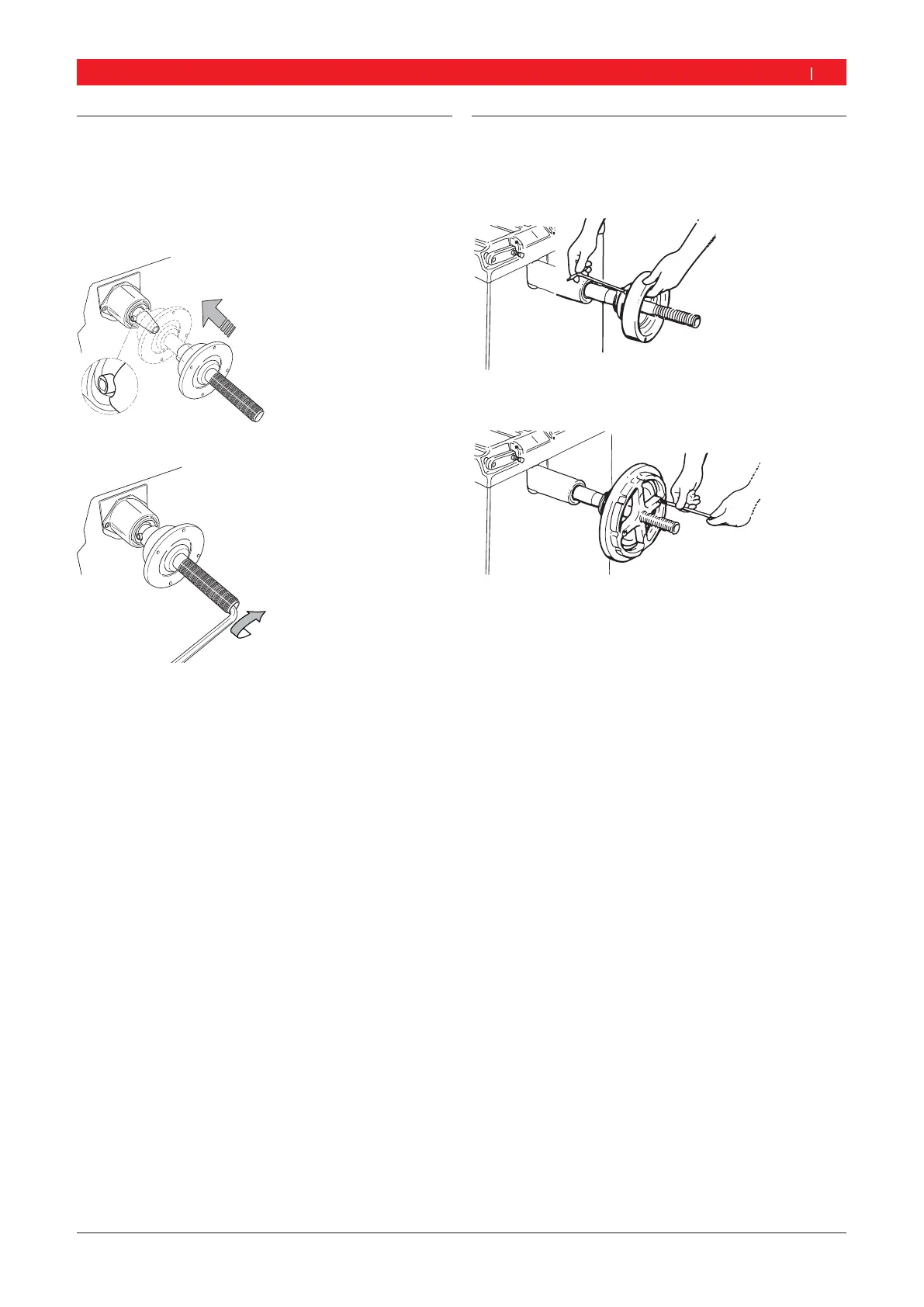

5.2 Fitting the passenger vehicle flange
i
Clean and degrease the cone of the shaft and the
flange opening.
1. Slide the flange onto the shaft.
651002-05 _Rf
2. Tighten the hexagon socket head bolt.
651002-03 _Rf
"Flange fitted.
5.3 Fitting the commercial vehicle flange
1. Use 2 bolts to attach the truck spacer ring to the
passenger vehicle flange.
651016-08_Rf
2. Secure the commercial vehicle flange with 2 bolts.
651016-09_Rf
