Parameter Description
Suppression of sensor sig‐
nal gaps
0 = infinite, 10 ms ... 1,000 ms, adjustable in 10 ms increments.
If t
he value is not 0, it must be greater than the logic execution
time.
see "Parameter Suppression of sensor signal gaps", page 104
Additional muting time
af
ter the ESPE is released
0 ms, 200 ms, 500 ms, 1,000 ms
"Parameter Additional muting time after the ESPE is released",
page 105
Input C1
•
A
ctive
•
Deactivated
Override input
•
Active
•
Deactivated
Conveyor
•
A
ctive
•
Deactivated
Sequence/timing diagram

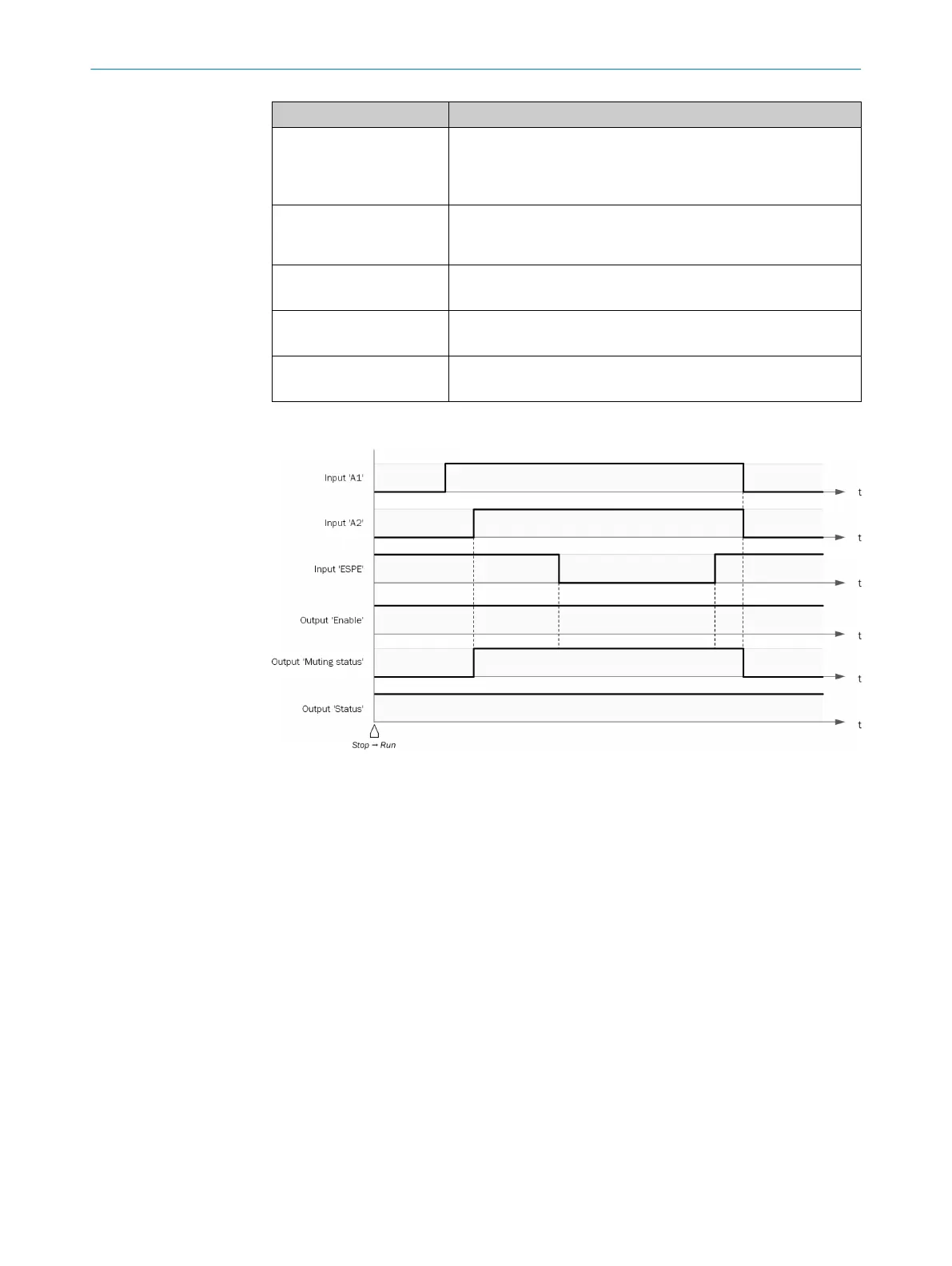

Figure 49: Sequence/timing diagram
Complementary information
•
If there are objects in the area of the muting sensors during the first logic cycle
and therefore one or more muting sensor signal inputs are set to 1, this gener‐
ates a muting error. The signaling of the error state at the Muting error output is
suppressed if the BWS input = 1. Before a new valid muting cycle can be executed,
this error must be reset.
•
The muting times have an accuracy of ± 10 ms (evaluation plus logic execution
time).
Further topics
•
"Safety notes for muting applications", page 18
7.6.2.7.4 Input Override
Overview
An O
verride input signal allows you to remove transported objects that have been left
stranded in the protective field of the protective device (e.g., safety light curtain) as a
result of a power failure, an emergency stop, muting errors, or similar circumstances.
7 C
ONFIGURATION
100
O P E R A T I N G I N S T R U C T I O N S | Flexi Compact 8024589/2020-11-10 | SICK
Subject to change without notice
