Parameter Description
Suppression of sensor sig‐
nal gaps
0 = infinite, 10 ms ... 1,000 ms, adjustable in 10 ms increments.
If t
he value is not 0, it must be greater than the logic execution
time.
see "Parameter Suppression of sensor signal gaps", page 104
To avoid machine downtimes during sequential muting, the config‐
ured time for Suppression of sensor signal gaps should be less
than the length of time between deactivation of the first sensor
and deactivation of the second sensor of a muting sensor pair
(e.g., A1 / A2 or B1 / B2) when the transported material leaves
the range of this sensor pair. Otherwise, the signal of the first
sensor is still active at the time of deactivation of the second
sensor due to the Suppression of sensor signal gaps and an error
occurs in the sequence monitoring.
Additional muting time
af
ter the ESPE is released
0 ms, 200 ms, 500 ms, 1,000 ms
"Parameter Additional muting time after the ESPE is released",
page 105
Input C1
•
A
ctive
•
Deactivated
Override input
•
A
ctive
•
Deactivated
Conveyor
•
Active
•
Deactivated

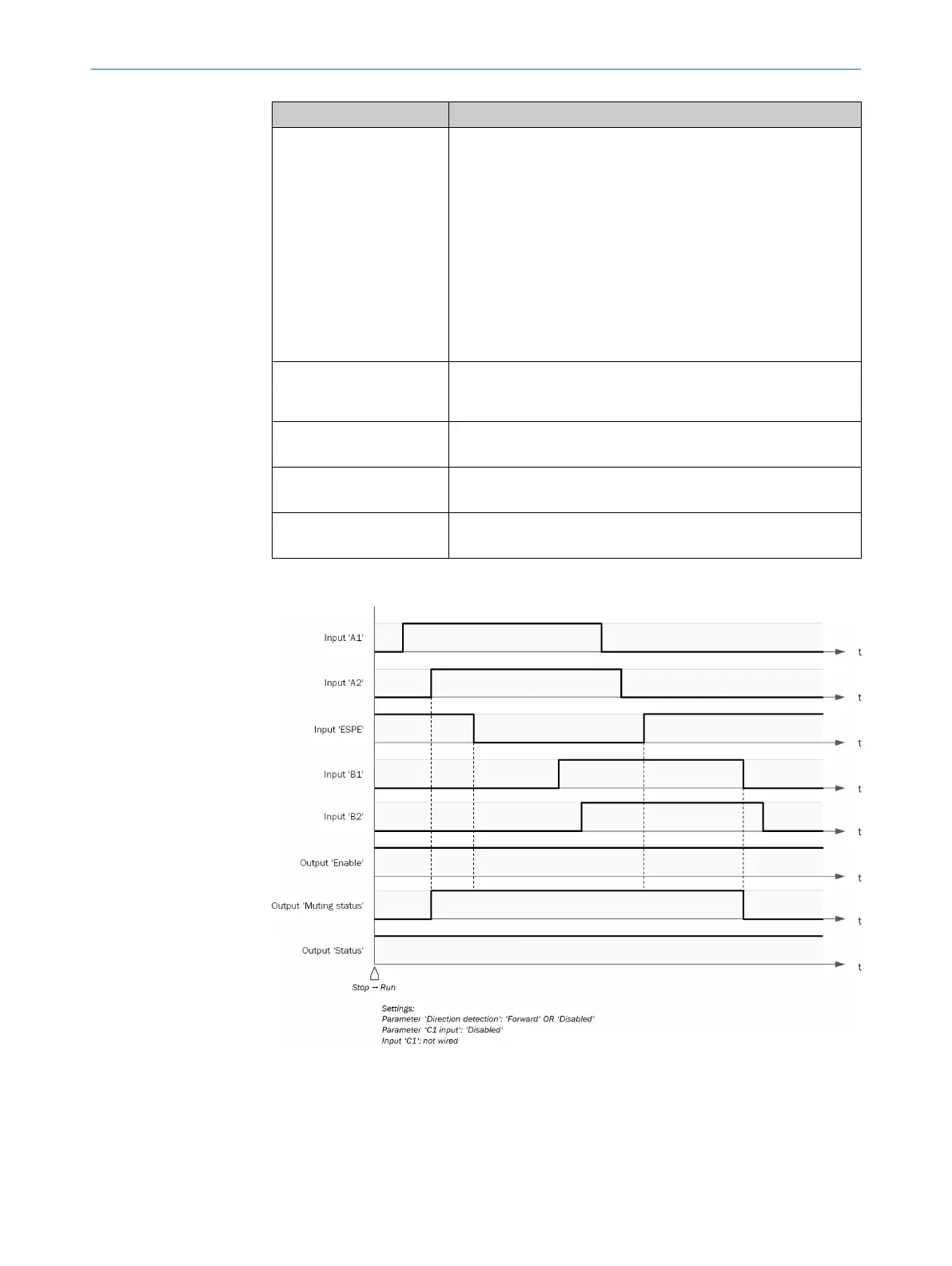

Sequence/timing diagram
Figure 47: Sequence/timing diagram
Sequence monitoring
A seq
uence monitoring is performed when sequential muting is active. The prerequi‐
site for sequence monitoring and the initiation of muting is a prescribed activation
sequence of the muting sensors.
CONFIGURATION 7
8024589/2020-11-10 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Compact
97
