Product description
FLOWSIC100 Flare · Addendum to Operating Instructions · 8025365/V1-0/2020-05 · © SICK Engineering GmbH 27

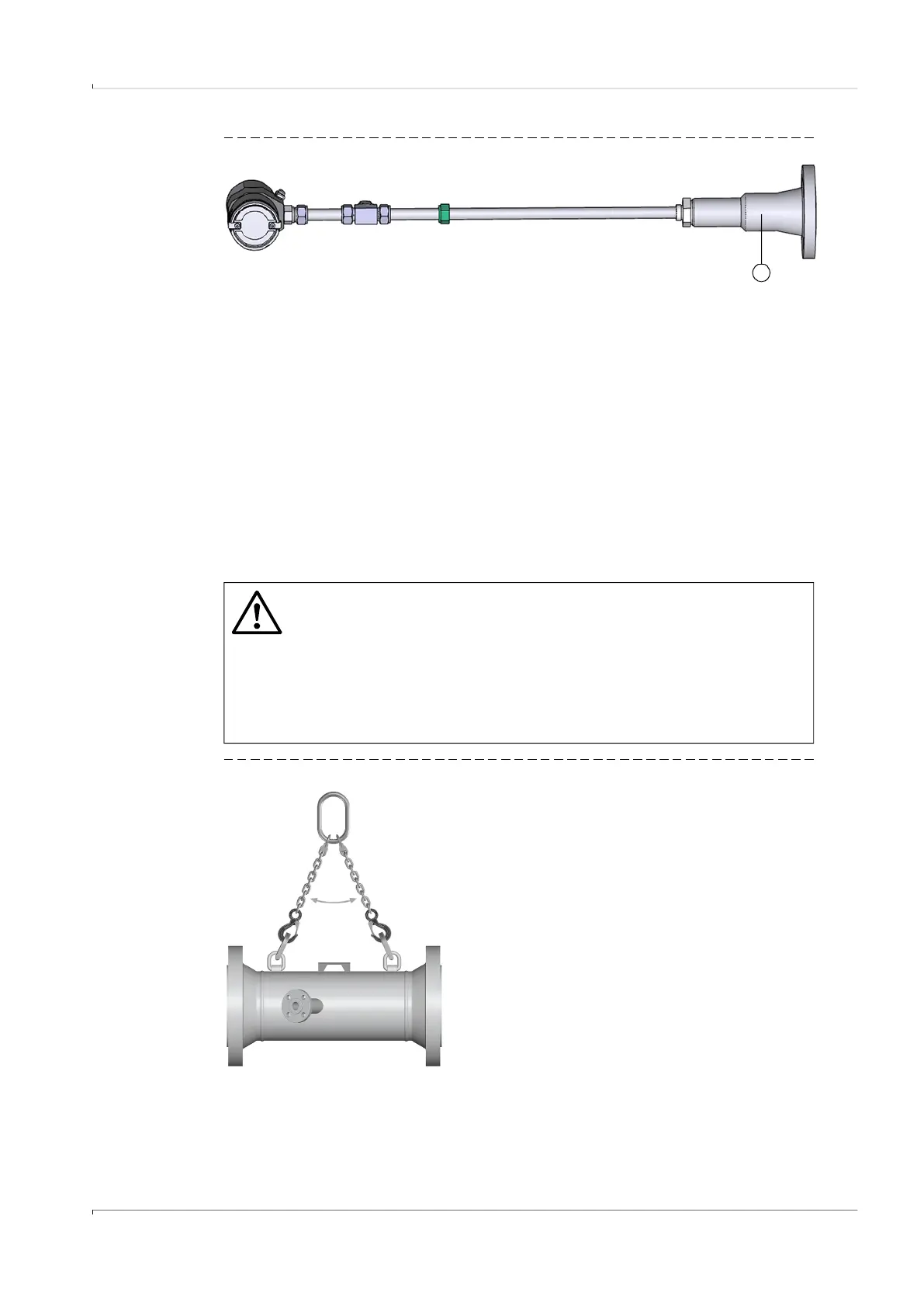

Fig. 11 Transport protection
3.5.2
Special notes for handling the spool piece option
Transport and storage
▸
During all transport and storage work, ensure:
– The spool piece is well secured at all times
– Measures are taken to avoid mechanical damage
▸
Protect sealing surfaces of the flanges and the interior of the spool piece if it must be
stored outside for more than one day, e.g. with Anticorit spray (not required for spool
pieces made of stainless steel). Do the same if the meter must be stored in dry condi-
tions, but for more than a week.
Lifting requirements
Fig. 12 Lifting requirements
1
1 Retraction nozzle
WARNING: Hazard due to size and mass of the spool piece
▸
Only use lifting gear and load handling equipment (e.g. lifting straps) which
are suitable for the weight to be lifted. Max. load information can be found
on the type plate of the lifting gear.
▸
Only use the eye bolts when lifting the spool piece.
▸
Do not lift the spool piece using these eye bolts when additional loads (e.g.
blind flanges, filling for pressure tests or tubes) are attached.
▸
During transport, the spool piece must not be turned over or start to swing.
Max. 60 °
