Product description
FLOWSIC100 Flare · Addendum to Operating Instructions · 8025365/V1-0/2020-05 · © SICK Engineering GmbH 25
3.3
Material for parts with process gas contact
Table 3 Overview of parts with process gas contact

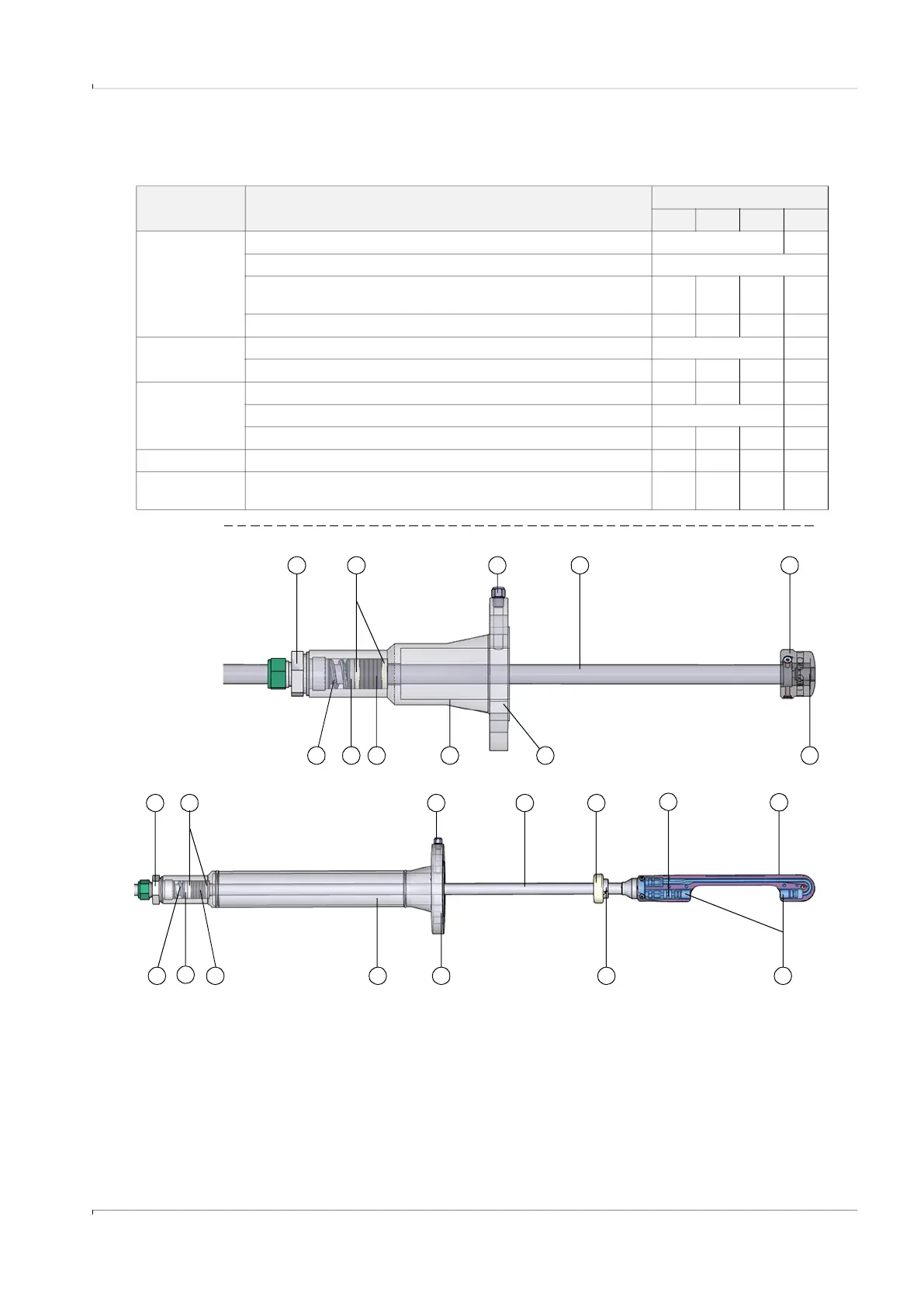

Fig. 9 Parts with gas contact
Material Component
Type FLSE100-XT
F1F-S F1F-M F1F-H F1F-P
Stainless steel
1.4571
Duct probe (9), transducer (7), connecting flange (6) x
Connection for optional venting (10), retraction nozzle (5) x
Duct probe (9), connecting flange (6), sensor contour, probe version
F1F-P (12)
x
Adjusting ring (14), pipe screw fitting (1), sealing disc (3) x x x x
Titanium
Duct probe (9), transducer (7) x
Transducer (7), transducer holder within sensor contour (13) x
PTFE
Centering (11) x x x x
Sensor contour (8) x
Thrust ring (15) x
PTFE/graphite Sealing profile (4) x x x x
Stainless steel
1.4568 Spring (2)
x x x x
11
3
2
10
4 145 6
9 151
13
7
11 81
4
10 9
72 653
1 Pipe screw fitting 9 Duct probe
2 Spring 10 Connection for optional venting
3 Sealing disc 11 Centering
4 Sealing profile 12 Sensor contour, probe version F1F-P
5 Retraction nozzle 13 Transducer holder within sensor contour
6 Connecting flange 14 Adjusting ring
7 Transducer 15 Thrust ring
8 Sensor contour
Cross-duct versions
Probe version
12
