Installation

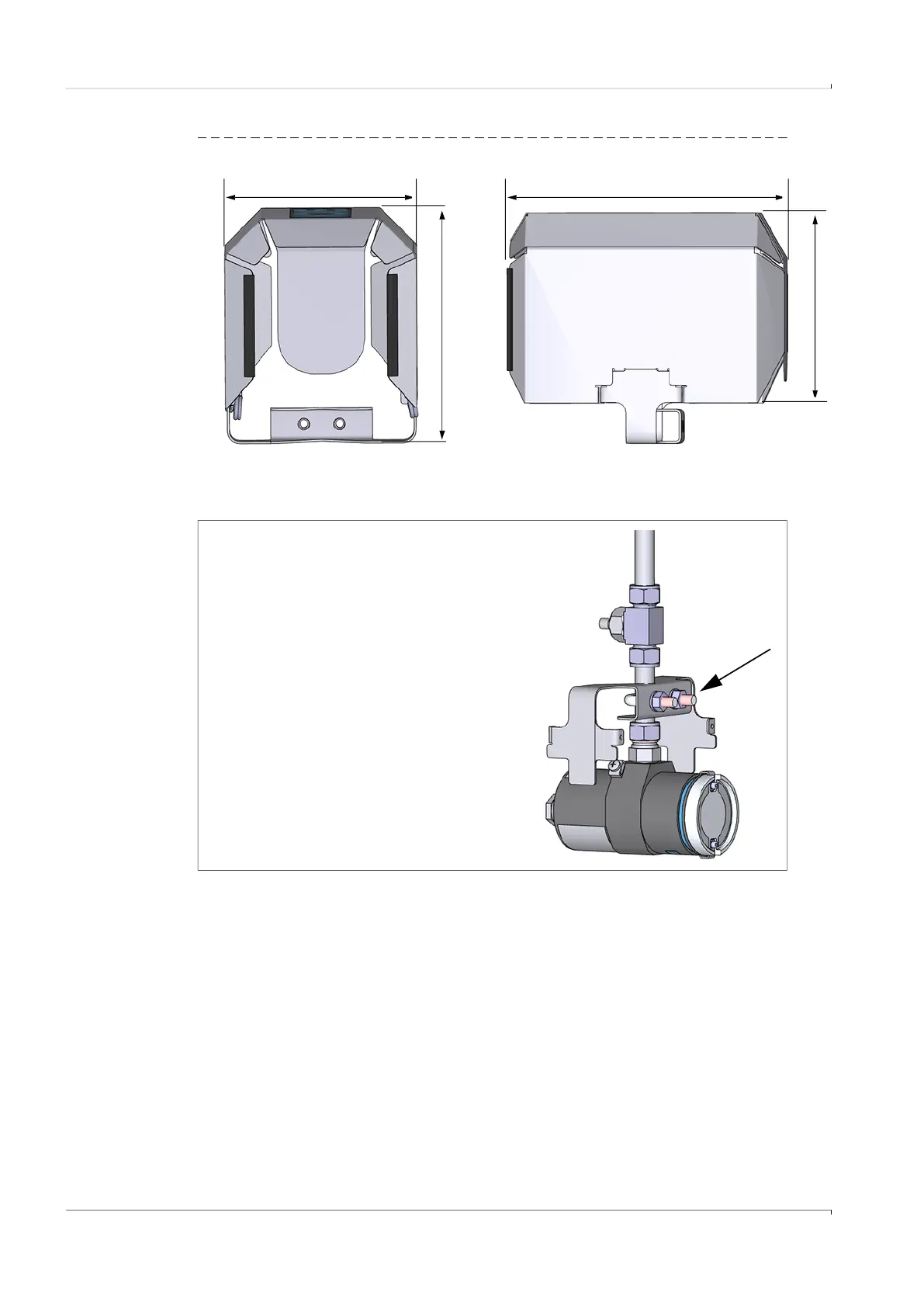

Fig. 39 Dimensions [mm]
4.11.2
Fitting the weatherproof cover
186
188 271
225
1 Fasten the holder on the sender/receiver
unit:
 Fasten the holder with round steel
bow to the probe neck of the sender/
receiver unit using hexagon nuts with
washers.
 Make sure the holder is correctly
aligned. See the adjacent Figure.
