8027872/1JTM/0-8/2023-05| SICKO P E R A T I N G I N S T R U C T I O N S | FLOWSIC550
Subject to change without notice
6 MOUNTING
6.4 Signal processing unit alignment
1 The signal processing unit can be rotated rotated a maximum of ±180°.
2 Loosen the four screws on the SPU neck.
3 Turn the meter body to the desired position.
4 Retighten the four screws on the SPU neck that were previously loosened (3 Nm
(2.2 lbf ft)).

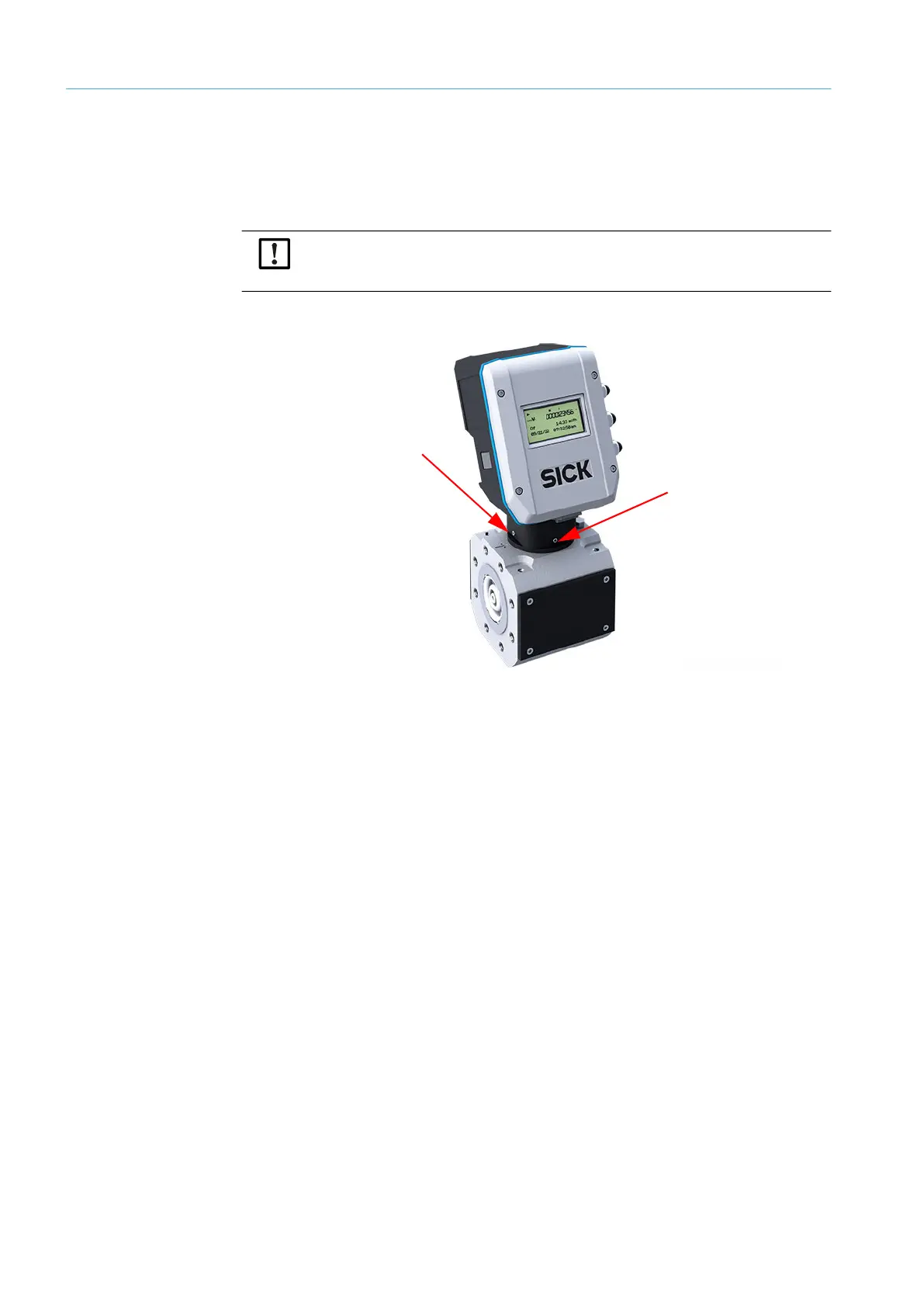

Fig. 3: Screws on the SPU neck
NOTICE:
Always make sure that the SPU is not rotated more than ±180°. Otherwise, the cables
will be damaged.
