13 TECHNICAL DATA
13 Technical data
13.1 Dimension drawings

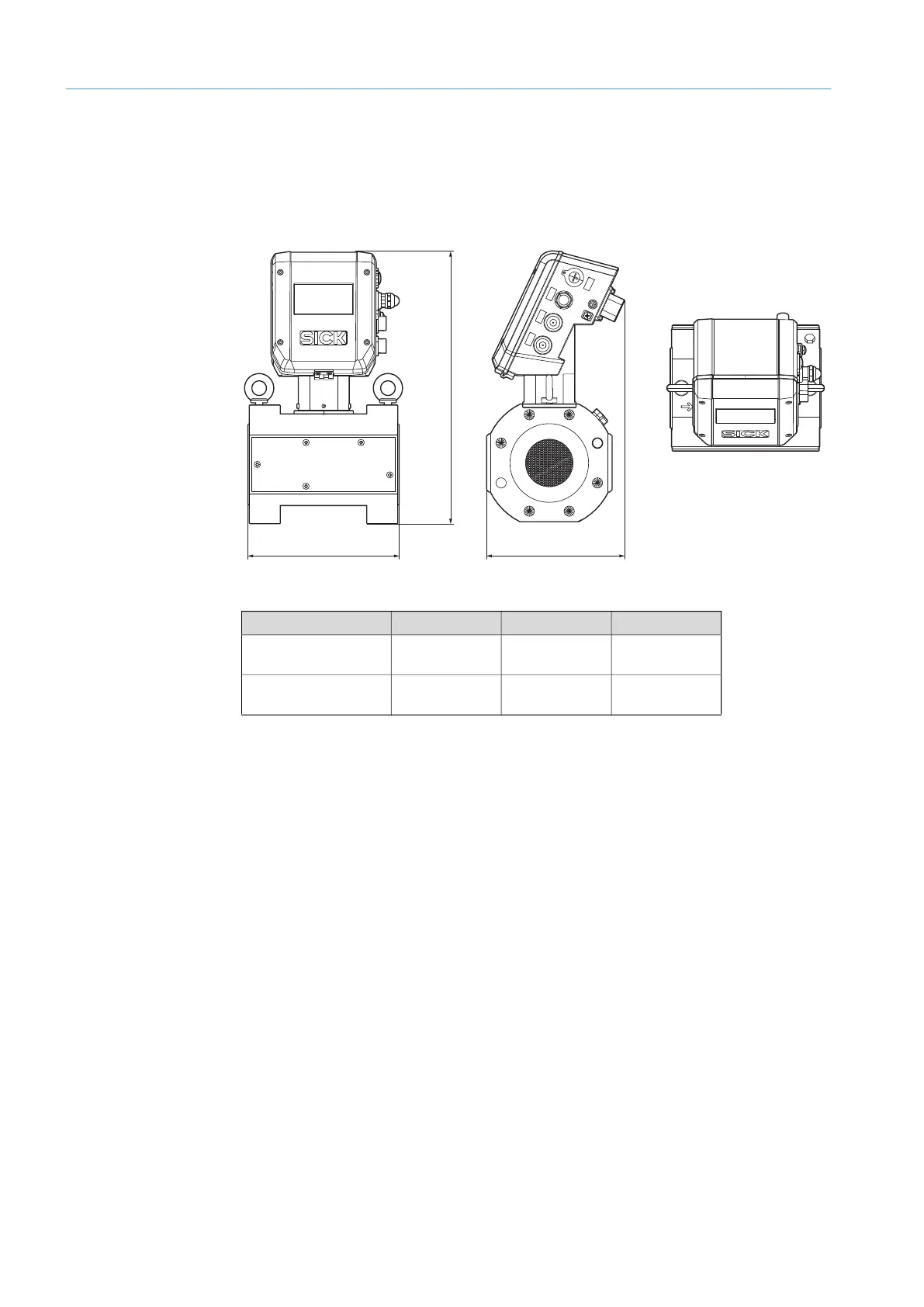

Dimensions FLOWSIC550
Table 5: Dimensions in mm [in]
BVS 03 ATEX E 298BVS 03 ATEX E
298
IECEx BVS07.0022XI
ECEx
BVS
07.
0022
X
4
B
A
C
Nominal size A B C
DN50/2"
150
[5.9]
425
[16.73]
220
[8.66]
DN80/3"
240
[9.45]
425
[16.73]
220
[8.66]
