SICK LD-LRS - Mechanics;Electronics; Performance

Working range diagram
0
–200
200
–300
300
–100
100
–100–200 100 200 300
–300
0
360°
Reichweite in m
Reichweite in m
Max. Reichweite 250 m
Reichweite für Objekte bis 10 % Remission 150 m

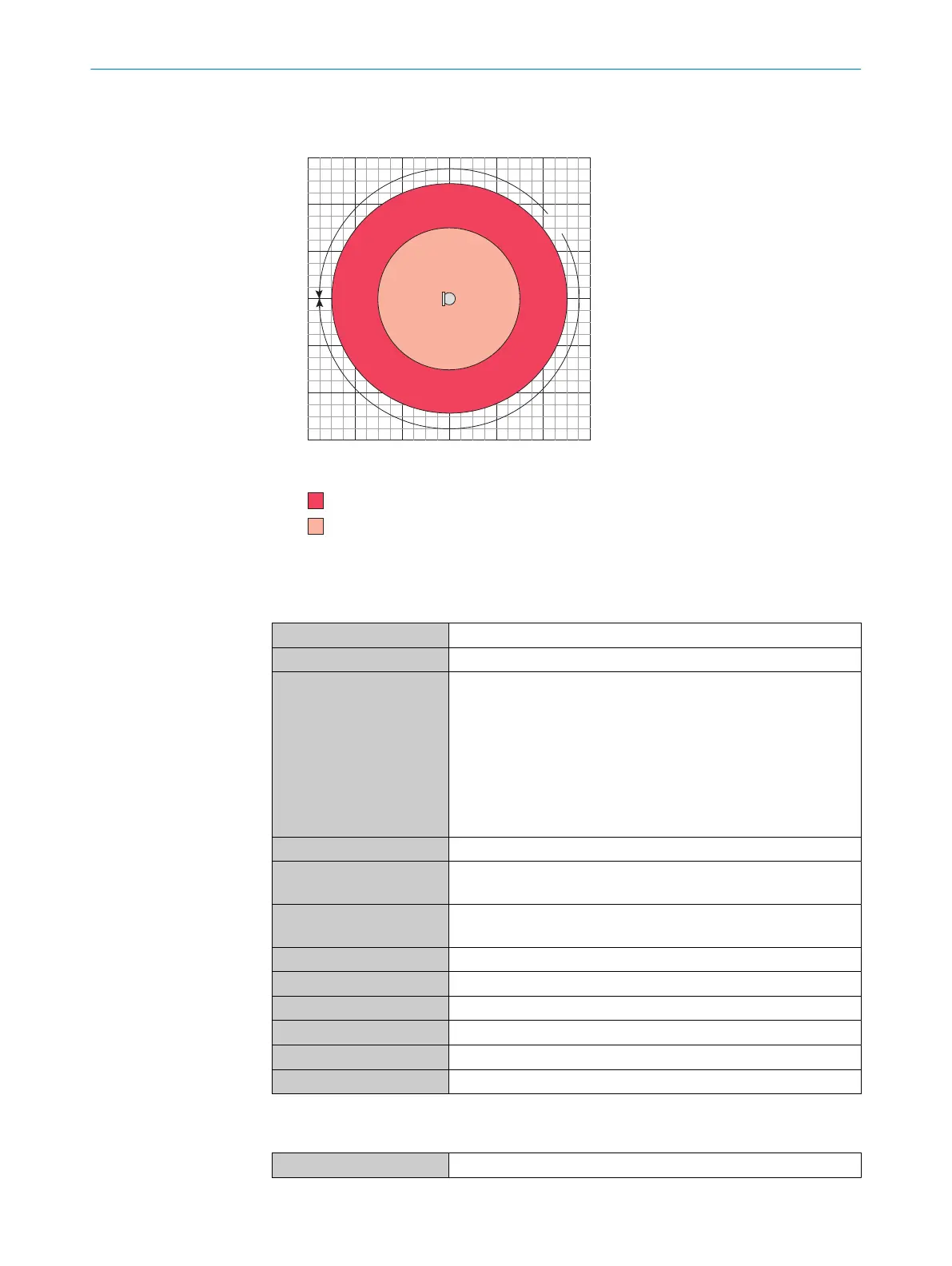

Figure 22: Working area diagram, top view
10.2
Mechanics/Electronics
Electrical connection 1 x 20-pin Harting connector
Supply voltage 24VDC ± 15%
Digital outputs LD-LRS3600
•
4x (OUT1 to OUT4) semiconductor output high-active
•
12W max. load per output (0.5A at 24VDC)
•
18W max. total output load (0.75A at 24VDC)
LD-LRS3601/LD-LRS3611
•
1 x (OUT1 for synchronization)
•
Semiconductor output high-active
•
12W max. load (0.5A at 24VDC)
Permissible residual ripple 6V
Power consumption Typical ≤ 36W (1.5A) + 140W heating
Start-up phase briefly max. 2.1A
Housing PUR-IHS (polyurethane integral skin foam)
optics cover: PC
Housing color Grey (RAL 7042)
Enclosure rating IP67 (EN 60529 (1991-10); A1 (2002-02))
Protection class III (IEC 61140:2002-03)
Electrical safety IEC61010-1:2010-06
Weight 9.1kg
Dimensions (L x W x H) 250mm x 350mm x 391.1mm
10.3 Performance
Detectable object shape Almost any
10 TECHNICAL DATA
40
