10.5 Dimensional drawing
33.8
(1.33)
73.5 (2.89)
62.5
(2.46)
125 (4.92)
125 (4.92)
264.6 (10.42)
69.8
(2.75)
162.9 (6.41)
288.5 (11.36)
24.1
(0.95)
146 (5.75)
6
(0.24)
96 (3.78)
389 (15.31)
351 (13.82)
4 x Ø 20
(0.79)
1
4
2
2
3
4
4
2

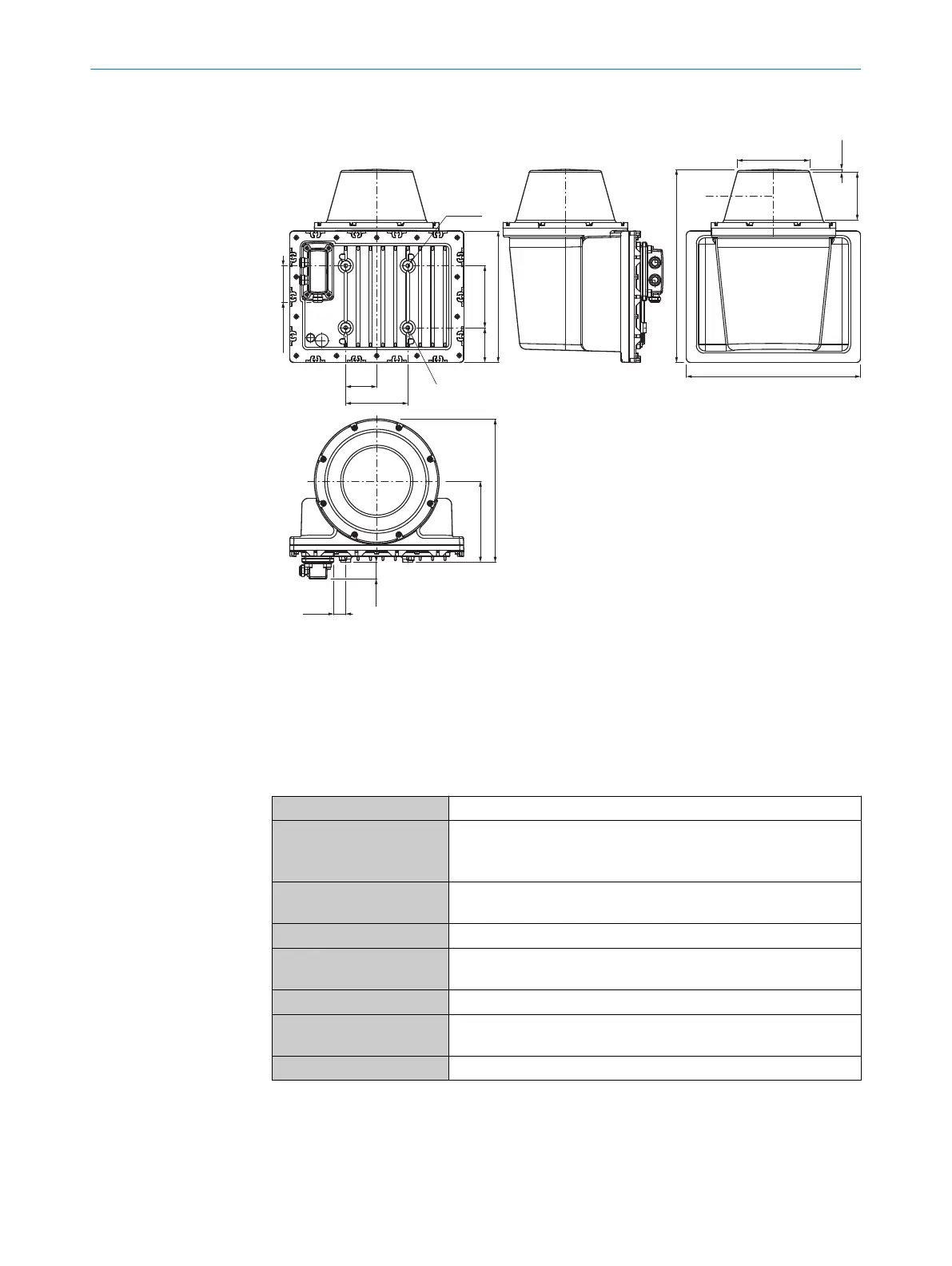

Figure 23: Device dimensions, dimensions in mm (inch), decimal separator: point
1
Optical axis
2
Device zero point
3
Fixing hole (M6x9)
4
20-pin Harting connector (RS-232/Ethernet/supply voltage)
10.6 Ambient data
Remission factor 2% ... 1,000% (reflector)
Electromagnetic compati‐
bility (EMC)
EN61000-6-2:2005-08
EN61000-6-4:2007-01
EN61000-6-4:2007-01+A1:2011-02
Vibration resistance According to EN 60068-2-6:2007, Table 2c (frequency range 10 ...
150Hz, amplitude 0.35mm or 5g)
Shock resistance EN60068-2-27:2008
Ambient operating temper‐
ature
-25 °C … +50 °C
Storage temperature -25 °C … +80 °C
Operating and storage air
humidity
Max. 85% relative humidity (non-condensing)
Ambient light immunity 80klx
