3.4.10 Field application (LD-LRS3600)
The device uses the integrated field application to analyze up to six detection fields
within its scan range. You can use the field application to, for example, implement
systems for collision protection, object protection, or access monitoring.
1
2
3
10
1
2
3
6
&,≥1...
OUT1 OUT2
OUT3
Operator for the outputs
Evaluation cases
- Evaluation field
- Evaluation strategy
- Output
Evaluation fields
&,≥1...
&,≥1...
6
1
2
3
4
5
7 8
9
OUT4
&,≥1...
ß

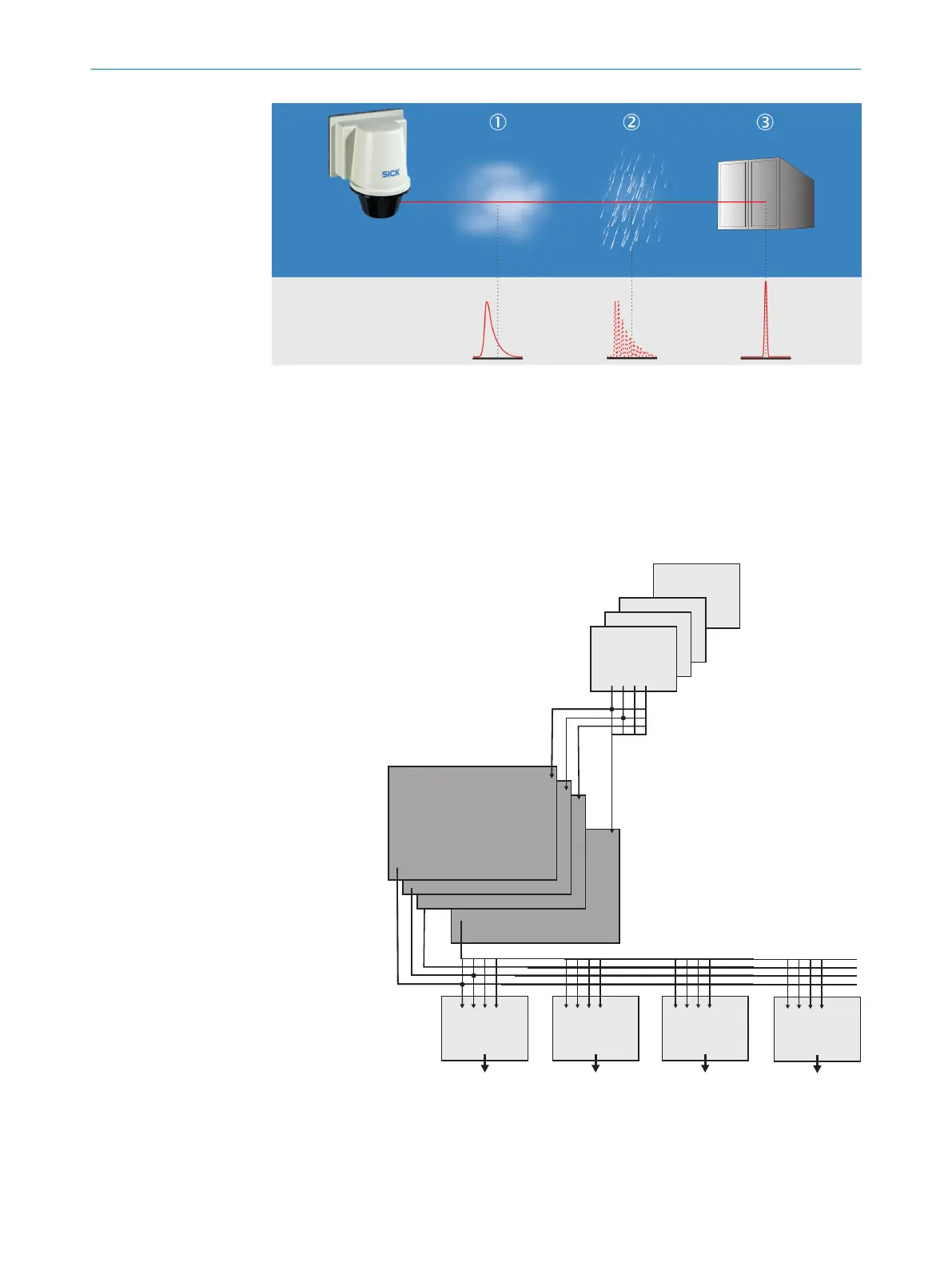

Figure 12: Principle of field application
1
Detection fields
2
Evaluation cases
PRODUCT DESCRIPTION 3
