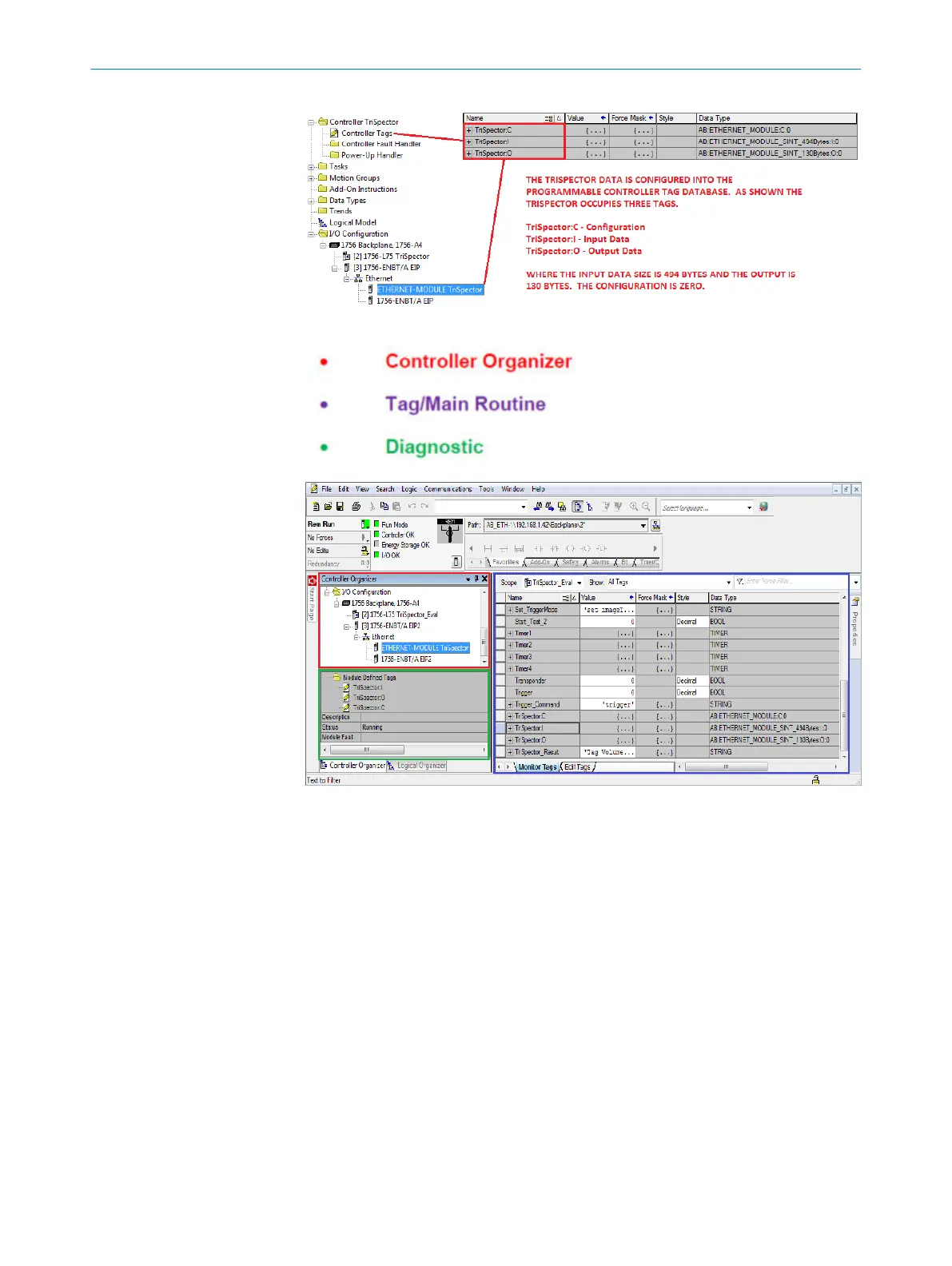

The programmable controller’s software is defaulted into three windows.
In the ‘Controller Organizer’ window under ‘I/O Configuration’ if a device is selected its
current status will be displayed in the ‘Diagnostic’ window. The Names of the Tags data
generated from the device is shown, the Description of the device, the device Status,
and Module Fault(s).
Where:
Names of the Tags – are Input, Output, and Configuration data the device generates.
Description – user description of the device (this is entered during module setup).
Status – the current condition of the module. Could be ‘Running’, ‘I/O Fault’, ‘Con‐
necting’, ‘Shutting Down’, etc.
Module Fault – shows the fault code as well as a description of what the controller
is attempting to do to correct the problem.
In the ‘I/O Configuration’ if a device is selected and ‘Right Clicked’ a menu will pro‐
vide access to the device’s properties.
APPENDIX 12
8021808/12ID/2019-01 | SICK O P E R A T I N G I N S T R U C T I O N S | TriSpector1000
79
