SICK WTB4S - Page 49

2
1
3
5
12.1 (0.48)
18.6 (0.73)
8.9 (0.35)
4
4
4
18.6 (0.73)
4.7 (0.18)
30.5 (1.2)
8.4 (0.33)
25.4 (1)
3.7 (0.15)
12 (0.47)
8.9 (0.35)

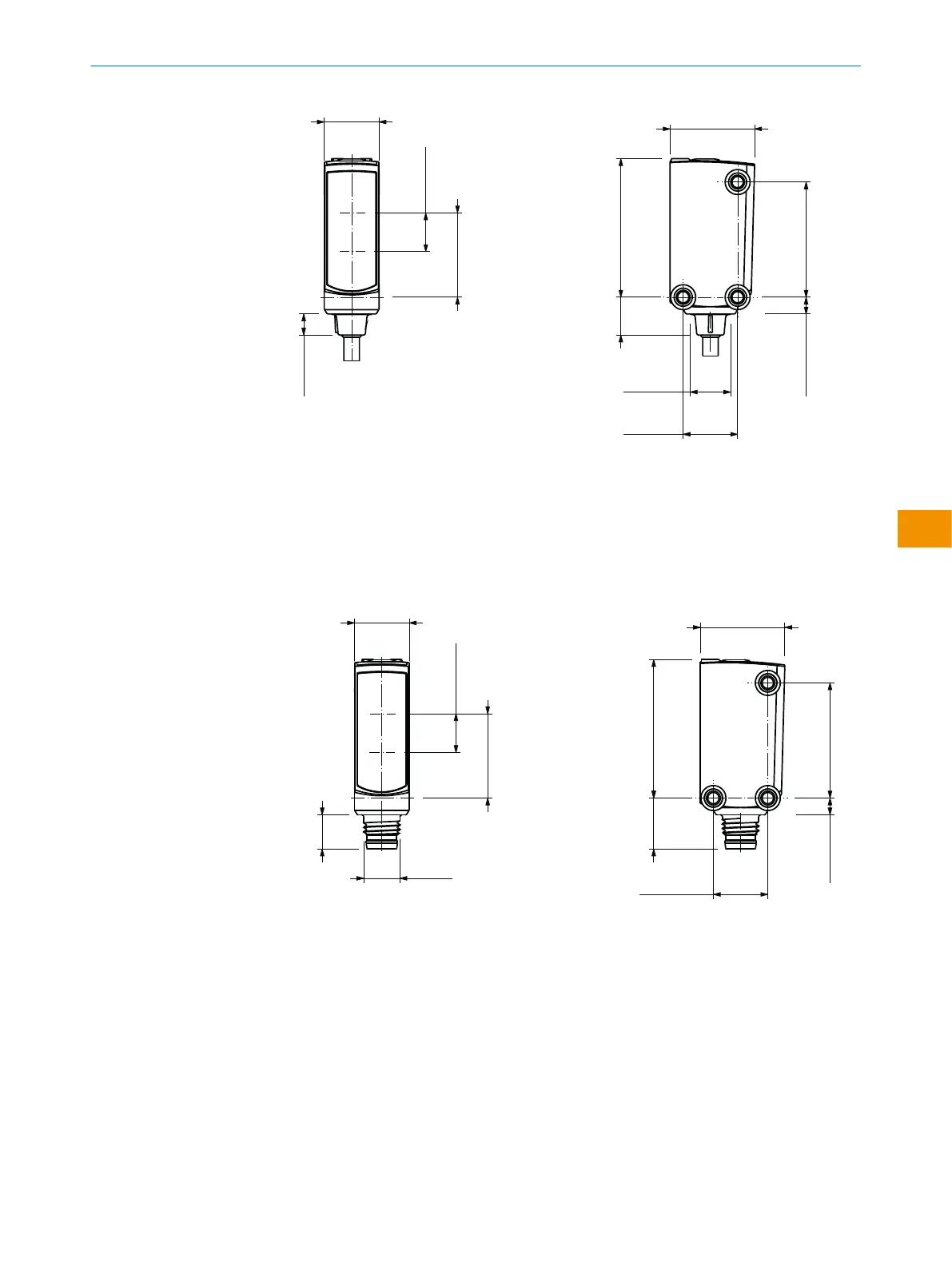

Figure 15: WTx4ST, DoubleLine, connecting cable
1
Center of optical axis, receiver
2
Center of optical axis, sender
3
Connection
4
M3 threaded mounting hole
5
Display and setting elements
12.1 (0.48)
M8x1
7.6 (0.3)
8.9 (0.35)
18.6 (0.73)
11.3 (0.44)
3.7
(0
.
1
5)
18.6 (0.73)
25.4 (1)
12 (0.47)
30.5 (1.2)
5
4
3
2
1
4 4
Figure 16: WTx4ST, DoubleLine, M8 male connector
1
Center of optical axis, receiver
2
Center of optical axis, sender
3
Connection
4
M3 threaded mounting hole
5
Display and setting elements
