Alphabetical Reference Description of functions
72
LDAP Template Filename
• Only configurable on optiPoint 410/420 standard/advance and only re-
quired if a display module or application module will be used.
•If an Æ LDAP server is used, enter the name of the LDAP template file
that is used in connection with this server.
• The file must exist in a defined directory on the Æ FTP server (Æ FTP
Server Address).
•Standard name Æ page 96.
• Datei downloaden Æ Action On Submit
Æ page 50
LED Test
• Conduct this test to check the function of the Æ LED in the
optiPoint 410/420 zu prüfen.
• All the LEDs blink during the test.
Æ page 25
Line Status
• Activate the display to view the functions and values used to run the
Æ LAN connections in the optiPoint 410/420.
• Bit rate, activity, half / full duplex, as well as the status of the used net-
work or the manual setting in the optiPoint 410/420.
• The display takes place through the Æ LEDs of the right row:
• The status monitor remains active even during the normal operation of
the optiPoint 410/420. However, it does not affect the operation of the
function keys.
Æ page 28
Port
[
[1]]
[1] See Æ page 12.

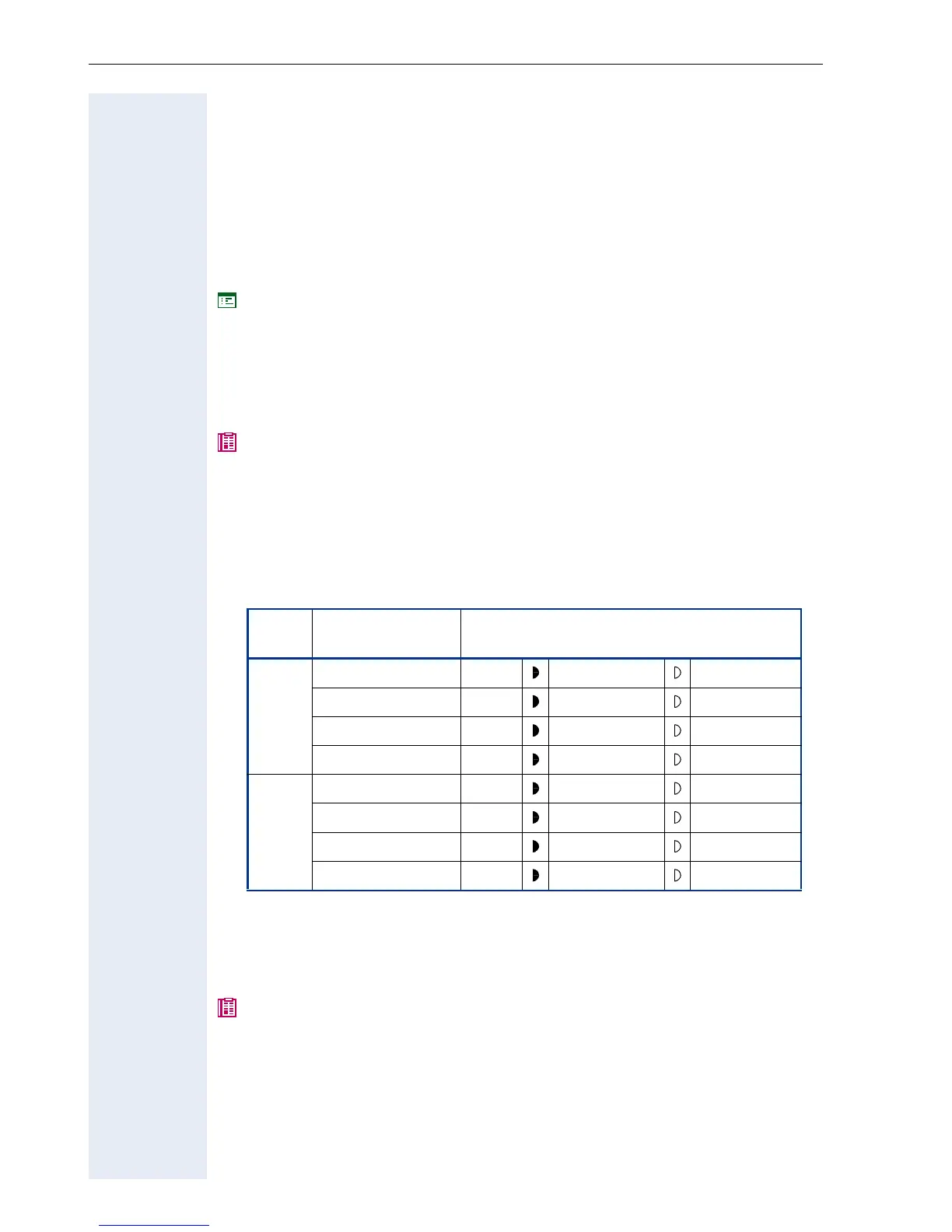

Function LEDs on optiPoint 410/420 (right row)
PC Activity LED1 Not Active Active
Speed LED2 10 Mbit/s 100 Mbit/s
Duplex LED3 Half-Duplex Full-Duplex
(no function) LED4 - -
LAN Activity LED5 Not Active Active
Speed LED6 10 Mbit/s 100 Mbit/s
Duplex LED7 Half-Duplex Full-Duplex
(no function) LED8 - -
