Configuring the limit values
With the equability test, one movement is carried out each forwards and
backwards. The characteristics are calculated separately for each direction. As
standard limit values are defined for the characteristics and are the same for both
directions of movement.
Optionally limit values can be entered which can have different values for both
directions for each characteristic.

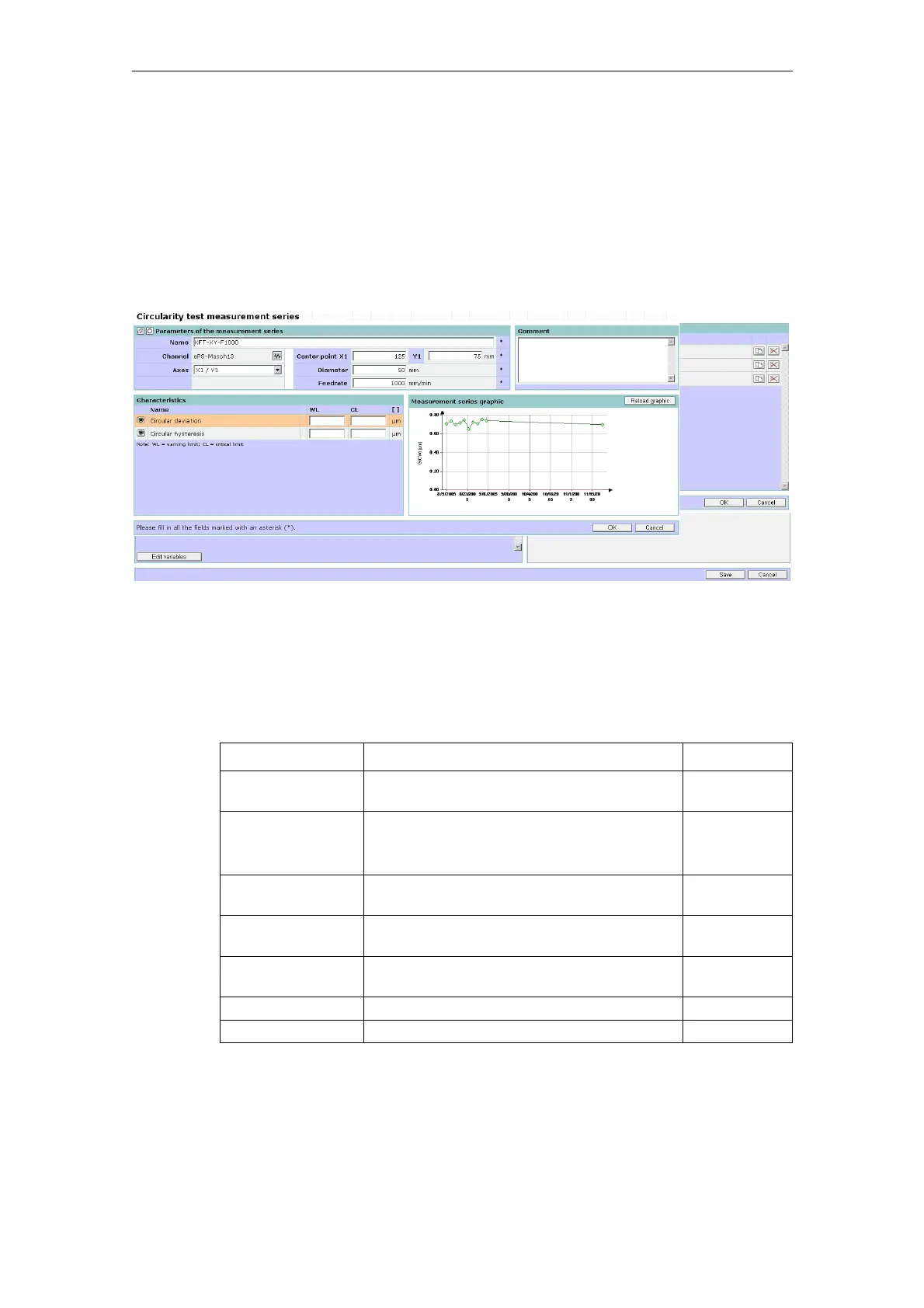

Fig. 3-11: Measurement series of a equability test on the PC
3.2.2 Circularity test
Parameter description
Parameters for conducting a circularity test:
Function Description Type
Name Name of the measurement series
(measurements do not have a name).
INPUT
Channel Selection of the required channel:
The channel defines the possible axis pairs
in the "Axes" selection list.
SELECTION
Axes 1/2 Selection from the possible pairs of
geometry axes.
SELECTION
Center point 1 Specification of the center coordinates of
the circle for the first axis.
INPUT
Center point 2 Specification of the center coordinates of
the circle for the second axis.
INPUT
Diameter Diameter of the circle. INPUT
Feedrate Path velocity of the circular movement. INPUT
