03/2013 3 Setting up functions
3.3 User-defined variables
© Siemens AG 2006-2013 All Rights Reserved
SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
3-111
3.3 User-defined variables
3.3.1 User-defined variables – List view
Function description
User-defined variables permit values to be processed that were created by the user
in SINUMERIK-Integrate configured logic. These values are defined as user-
defined variables so that they can be addressed in the downstream logic.
The "stop watch" is a user-defined variable. The stop watch permits a time to be
measured that can be started and stopped with any signals. The same signal can
be used for both the start and the stop. The measured time is recorded as a time
series (variable monitor). It can automatically be checked against limit values. A
variable monitor must be set up for this. Any variable can be used for the start and
stop signals. If a PLC variable is used in the S7 syntax (not OPC), the determined
time cycle is exact to the millisecond. The maximum repeat frequency for a
subsequent stop should lie in the higher double-digit seconds range.

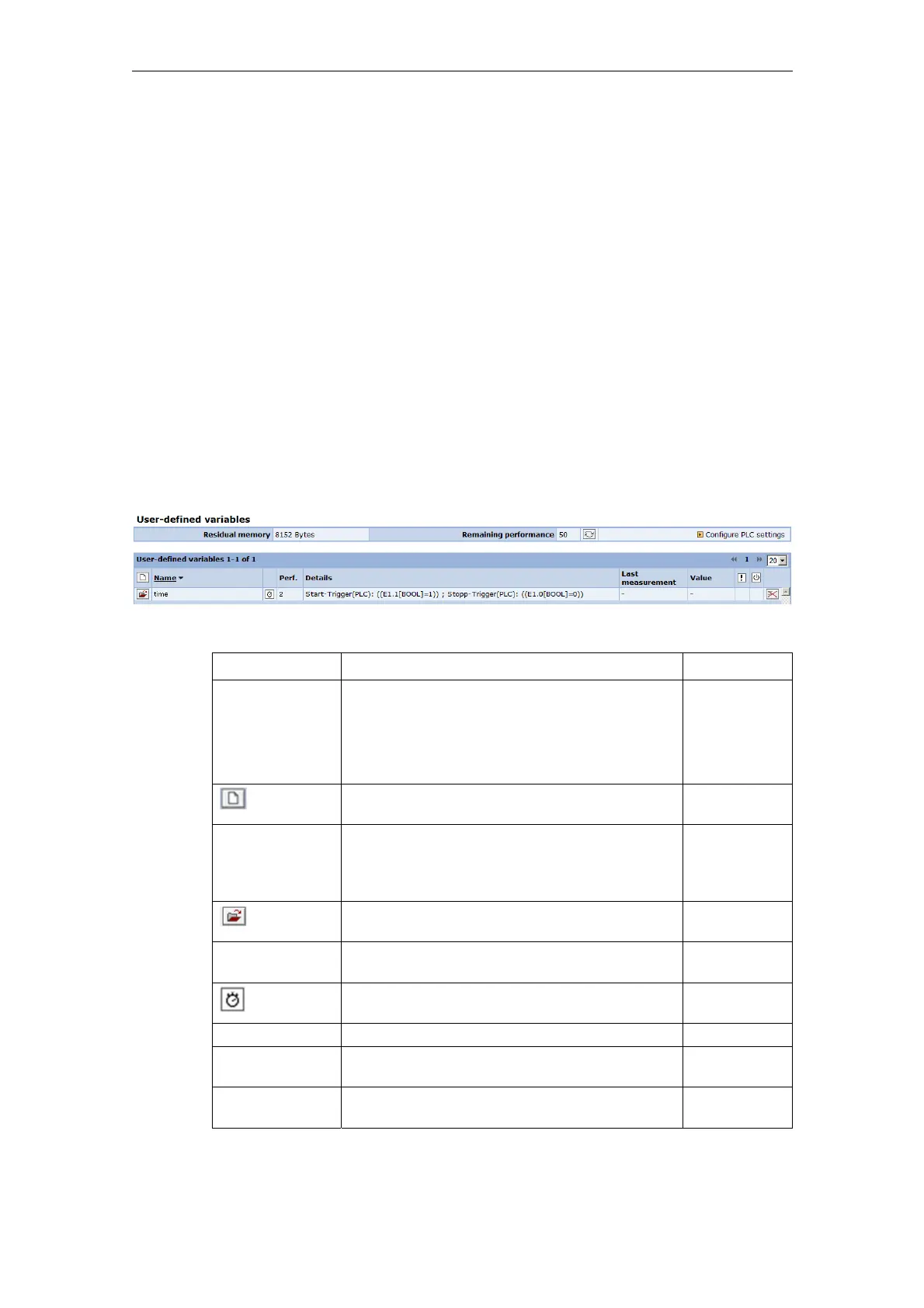

Fig. 3-19: User-defined variables – list view
Function Description Type
Residual
memory
Remaining
performance
PLC settings
See: PLC triggers
DISPLAY
Changes to the window to create the logic for a
user-defined variable.
ACTION
Number of lines The value shown here specifies the lines per
window that shall be represented in this menu.
You can select up to 200 lines. A scroll bar will
then be displayed in the window.
DISPLAY
SELECTION
Switches to the window to edit the created
user-defined variable of the line.
ACTION
Name User-assigned name for the user-defined
variable.
DISPLAY
Each type of user-defined variables has its
own icon.
DISPLAY
Perf The performance required from the PLC. DISPLAY
Details Logic to determine the value of the user-
defined variable.
DISPLAY
Last
measurement
Time at which a value was last determined for
the variable
DISPLAY
