03/2013 3 Setting up functions
3.2 Configuring measurements and measurement series
© Siemens AG 2006-2013 All Rights Reserved
SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
3-107
3.2.3 Universal axis test
Parameter description
Parameters for conducting a universal axis test:
Function Description Type
Name Name of the measurement series
(measurements do not have a name).
INPUT
Channel Selection of the required channel: The channel
defines the possible machine axes in the "Axis"
selection list.
SELECTION
Axis Selection from the possible machine axes that
can be programmed in the selected channel.
SELECTION
Start point The axis position at which the various
movements of the measurement begin.
The position value is never lower than this value
during measurement.
INPUT

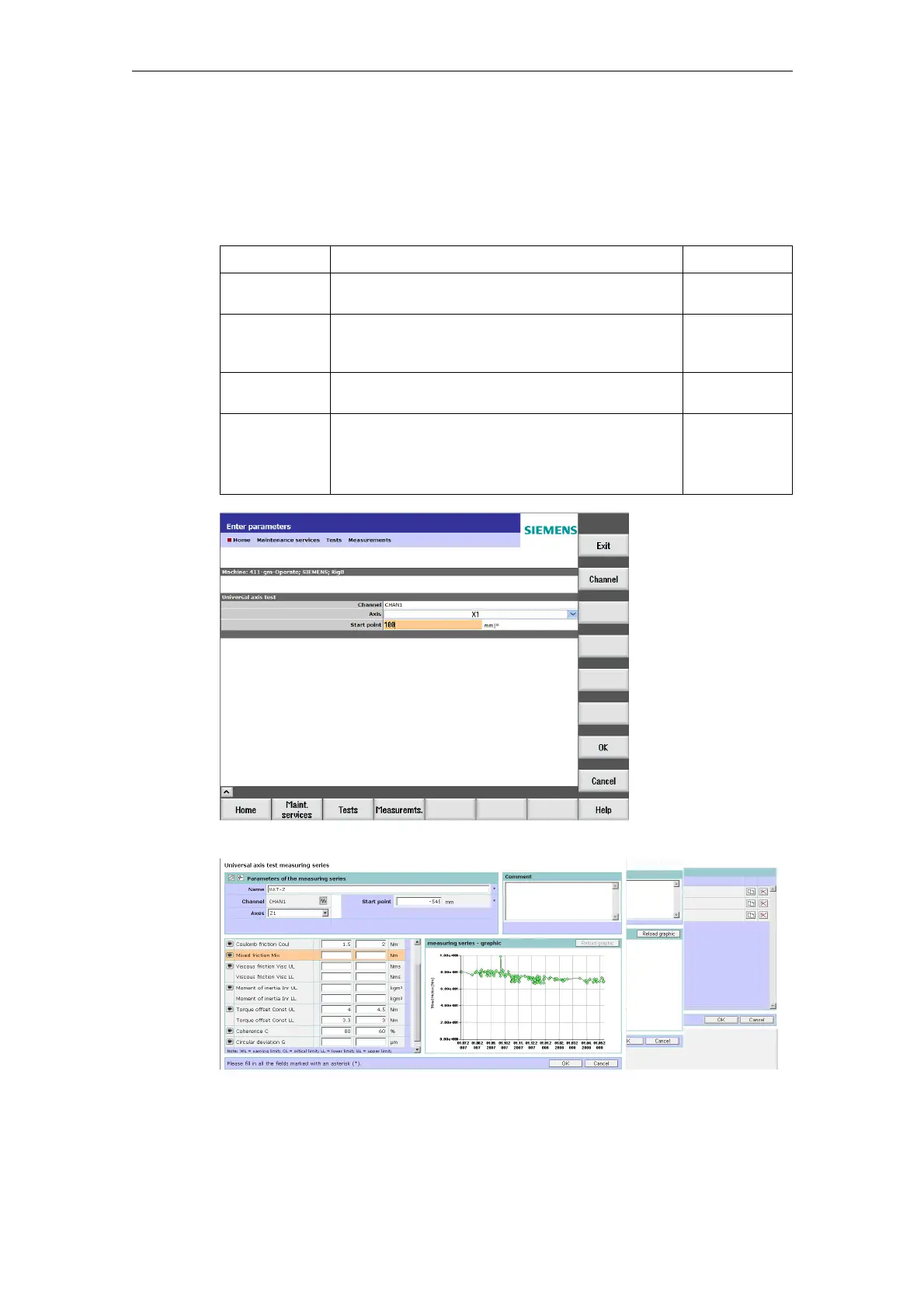

Fig. 3-14: Universal axis test on the operator panel
Fig. 3-15: Measurement series for a universal axis test at the PC
