5.1.4 Variable monitors
The data recorded via variable monitors can be displayed for all machines.
To do this, select a group of machines via the "Select machine" menu.
Only data series of the same name can be compared.

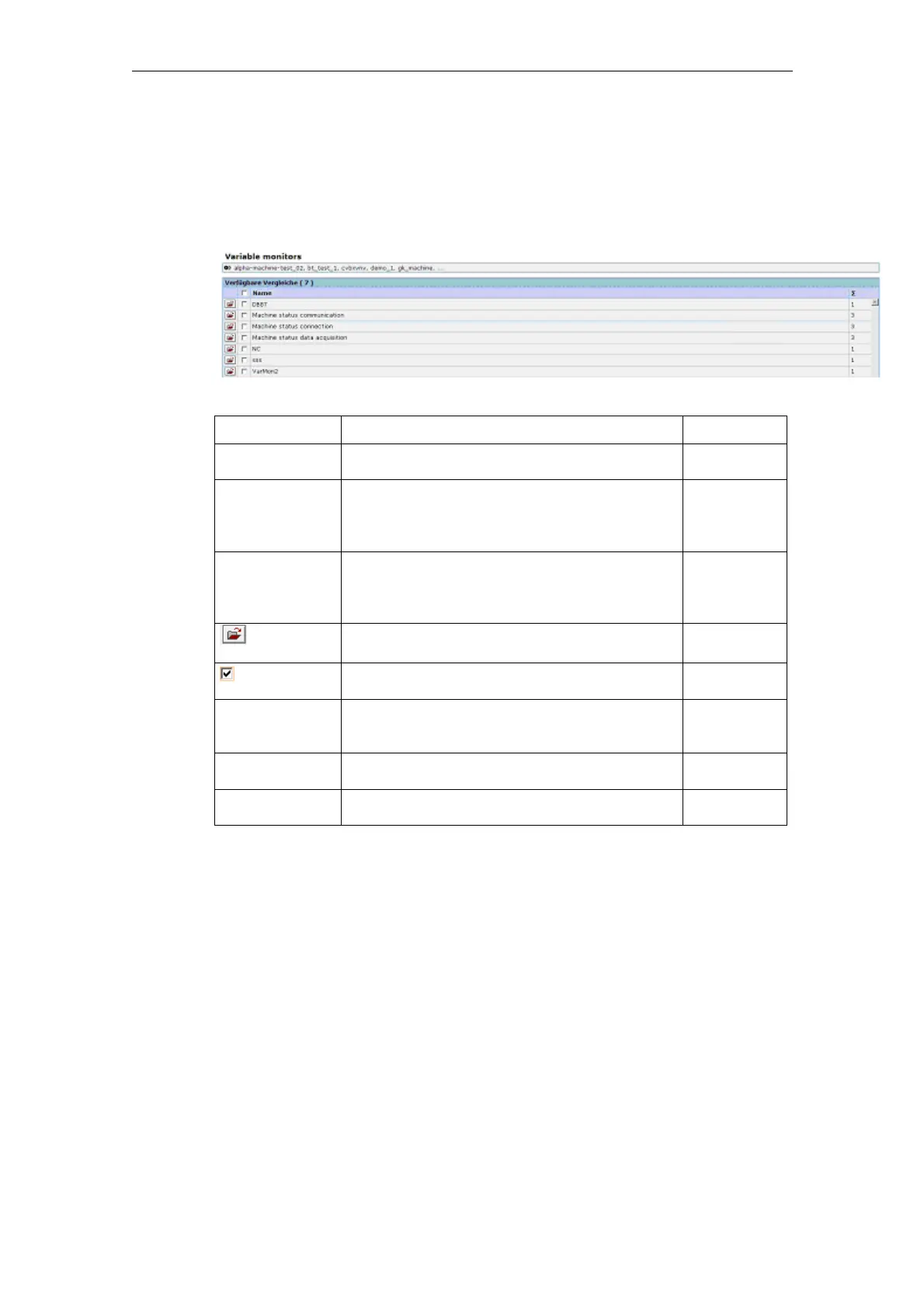

Fig. 5-14: Display of all comparable data series of the selected machine group
Function Description Type
All machines Display of the number of machines that are
selected as a group.
DISPLAY
Available
comparisons ( )
Displays the number of comparisons between
the variable monitors of the machines in the
group that are possible. The decisive factor is
the same name.
DISPLAY
Name List of all variable monitors of the machines in
the selected group.
Simultaneous selection and deselection of all
variable monitors via a checkbox.
DISPLAY
SELECTION
(Toggle)
Direct change to the display of the variables of
the data series.
DISPLAY
The variable monitors to be compared are
selected by activating the checkboxes.
DISPLAY
SELECTION
The number of machines with variable monitors
of the same name in the selected group is
displayed below the sum sign.
DISPLAY
Cancel Return to the previous menu without executing
the action.
ACTION
OK A changeover is made to the variable monitor
selection.
ACTION
