03/2013 5 Statistics/export
5.1 Multi-machine views
© Siemens AG 2006-2012 All Rights Reserved
SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
5-243
Machine selection
The machines that are to be included in the comparative inspection of
measurement series are selected via the group at "Select machine".

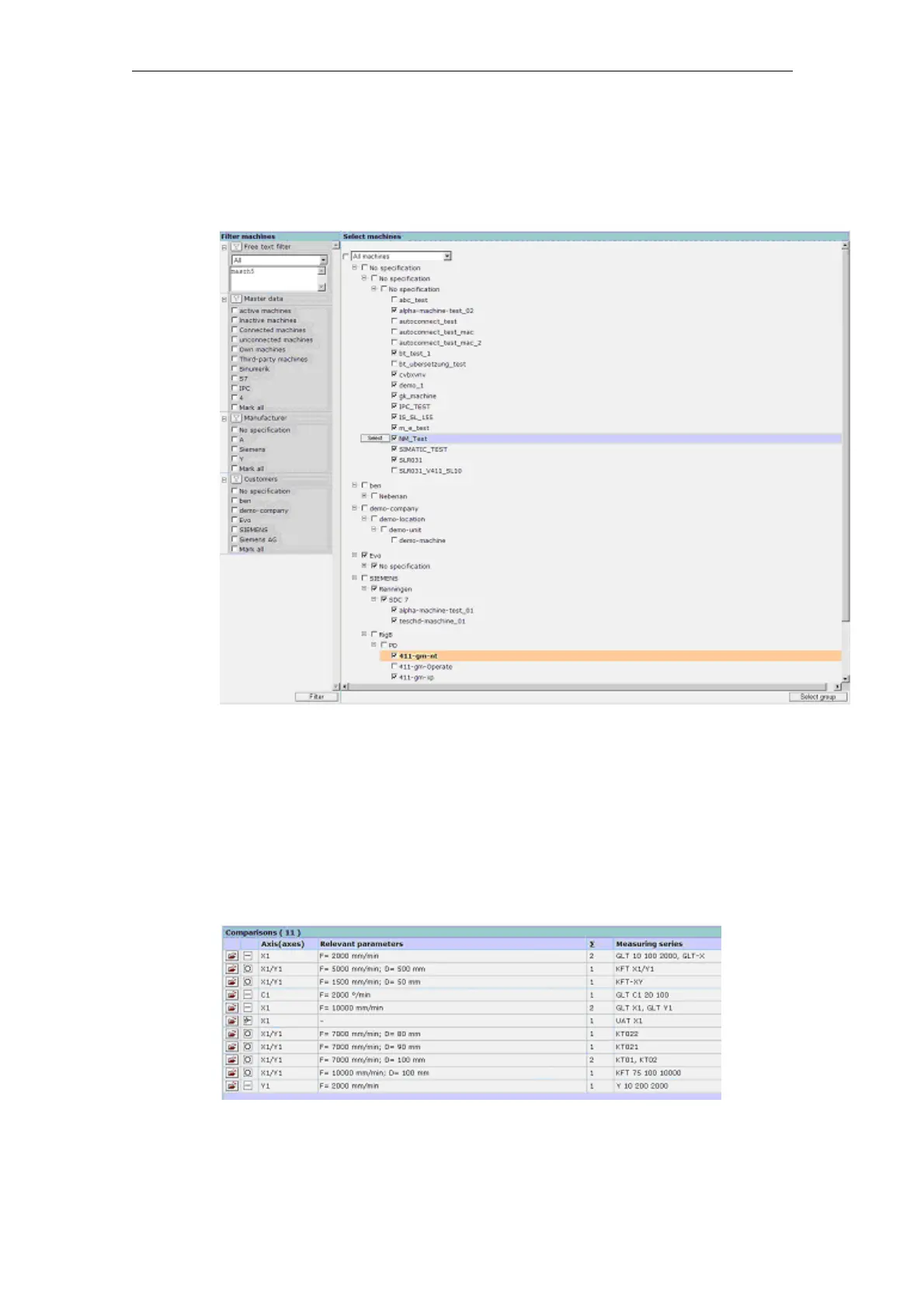

Fig. 5-9: Selecting machines via the machine tree
Selection of measurement series
After the selection of the machines that are to be considered, the system creates
an overview of the comparable measurement series. This overview contains the
following information:
• Name of the measured axis
• Values of the measurement series parameter relevant for the comparison
• Number of machines that have a comparable measurement series
Fig. 5-10: Overview of the measurement series groups
