2 Machine information 03/2013
2.2 Variable monitors – time Series – measurements and measurement series
© Siemens AG 2006-2013 All Rights Reserved
2-40 SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
Function Description
Filter time series
Variable monitors
and
Axis test types:
• Equability test
• Circularity test
• Universal axis test
This function opens the menu for the purpose of
filtering the measurement series displayed in the
selection. Measurement series can be filtered
according to the type of measurement series.
Filtering The "Filter" function causes the selected filter setting
to take effect.
Show/hide filter areas This function shows or hides the entire filter area.
Displaying diagrams of the selected time series
If you click the "Display" text button under the time series selection tree, the graphs
for the selected time series are displayed.
Displaying the measurement results
You can view measurement results both on the machine operator panel and on the
PC. Trend curves produced by measurement series can only be viewed on the PC.
The warning and critical limits of the characteristics can give the machine operator
evaluation information about how far the qualitative state of the machine is from the
limit criterion.

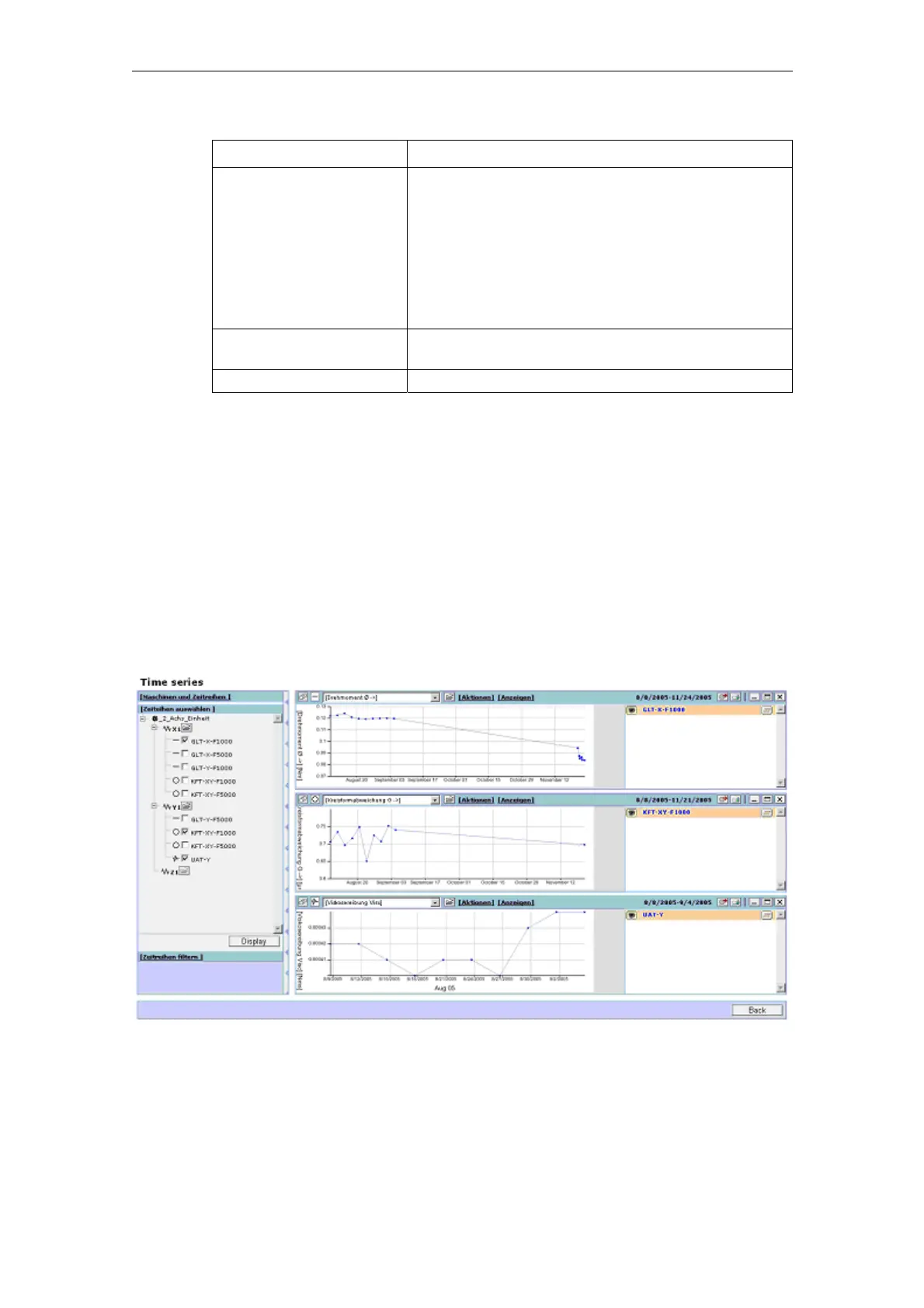

Fig. 2-22: Examples of time series
