2 Machine information 03/2013
2.2 Variable monitors – time Series – measurements and measurement series
© Siemens AG 2006-2013 All Rights Reserved
2-54 SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013

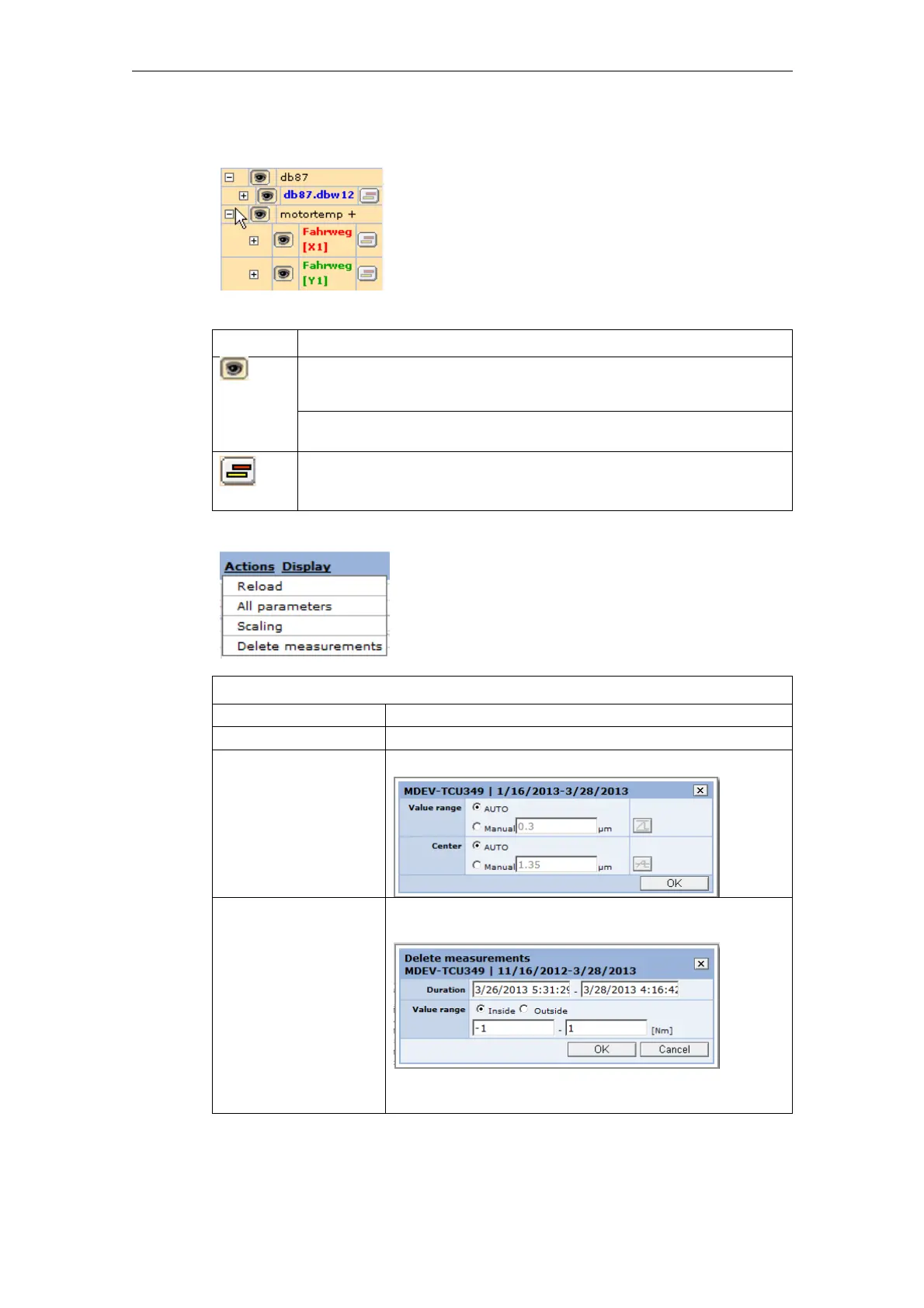

List of displayed variable monitors and variables with control elements
Fig. 2-32: List of displayed variables
Function Description
This function removes all variable monitor graphs from the diagram.
The diagram is redrawn, which involves recalculating the scale. A
maximum of eight values can be simultaneously displayed.
This function removes the variable graph from the diagram. The
diagram is redrawn, which involves recalculating the scale.
This function plots the limit values of the selected variable in a line in
the diagram. If the limit values are outside the range of values
displayed, an icon indicating this will appear.
"Actions" menu
Entries menu
Reload Creates a new diagram.
All parameters Displays all parameters in the diagram.
Scaling Settings for the display.
Delete measurements Specification of the value range and time range for the
deletion of measurements and data points.
