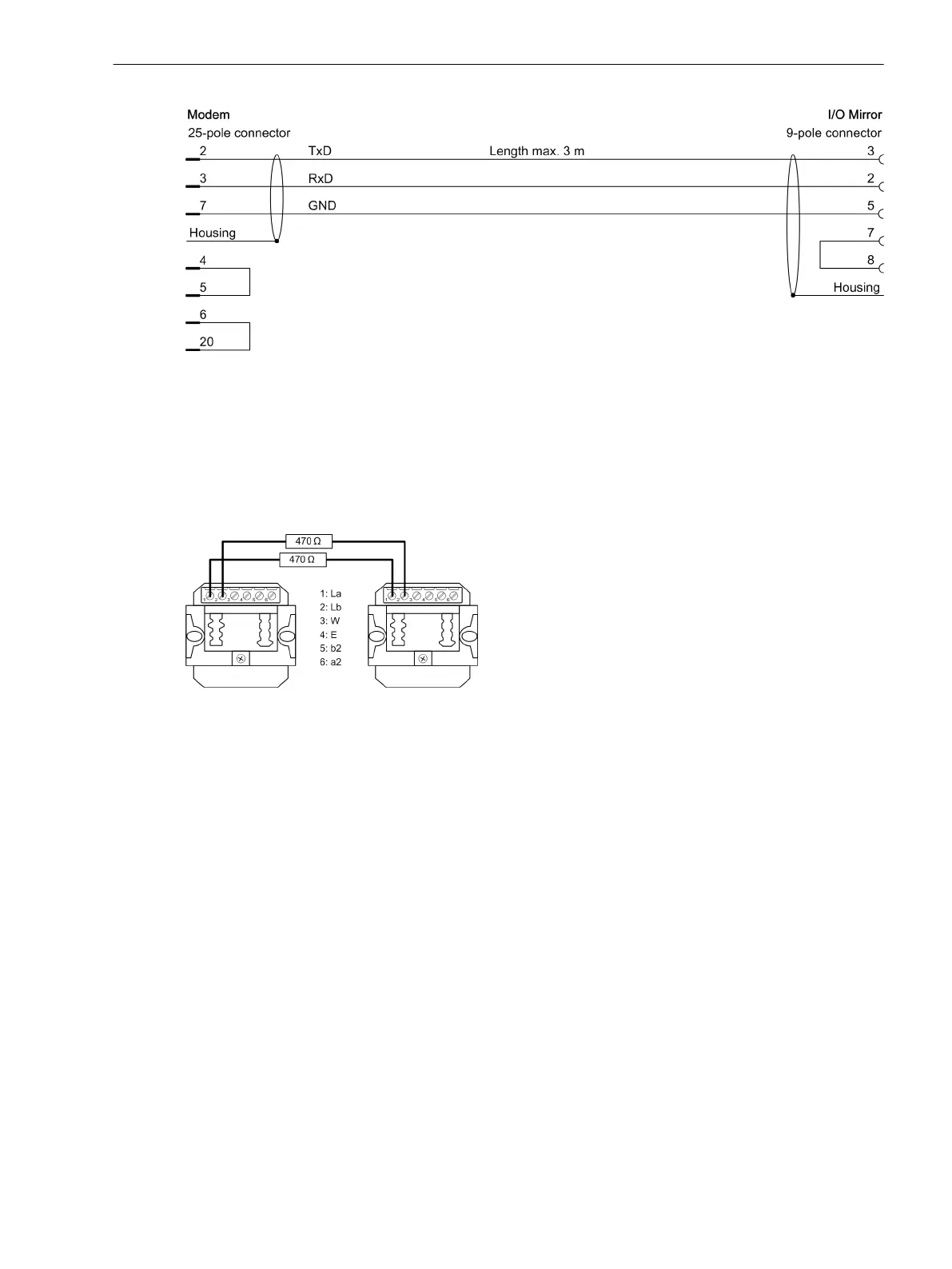

Figure 3-3 Connecting-Cable Assignment
Establishing a Modem Connection
In the case of test or laboratory systems, modems must not be connected to one another directly using tele-
communication connections. This would cause the tie line to have very low resistance. As a result of this,
transmission errors may occur because the receiver of the modem is overdriven.
Siemens recommends installing a 470-Ω resistor in each of the connections (see the following figure).
[dw_verbindungswiderstände, 1, en_US]
Figure 3-4 Connection Resistors
Application Examples
3.1 Transmission Modes
Accessories, Binary signal transmitter 2-channel, Manual 25
C53000-G9050-C607-1, Edition 09.2019
