Transmission Modes
The binary-signal transmitter can receive 2 binary signals and transmit them directly up to 3 km via fiber-optic
paths using multimode optical fibers. At the remote station, the binary signals are issued via relay contacts.
For transmission via singlemode optical fibers up to 100 km, a repeater 7XV5461 is available.
[dw_application_binary_transducer_BSUE, 1, en_US]

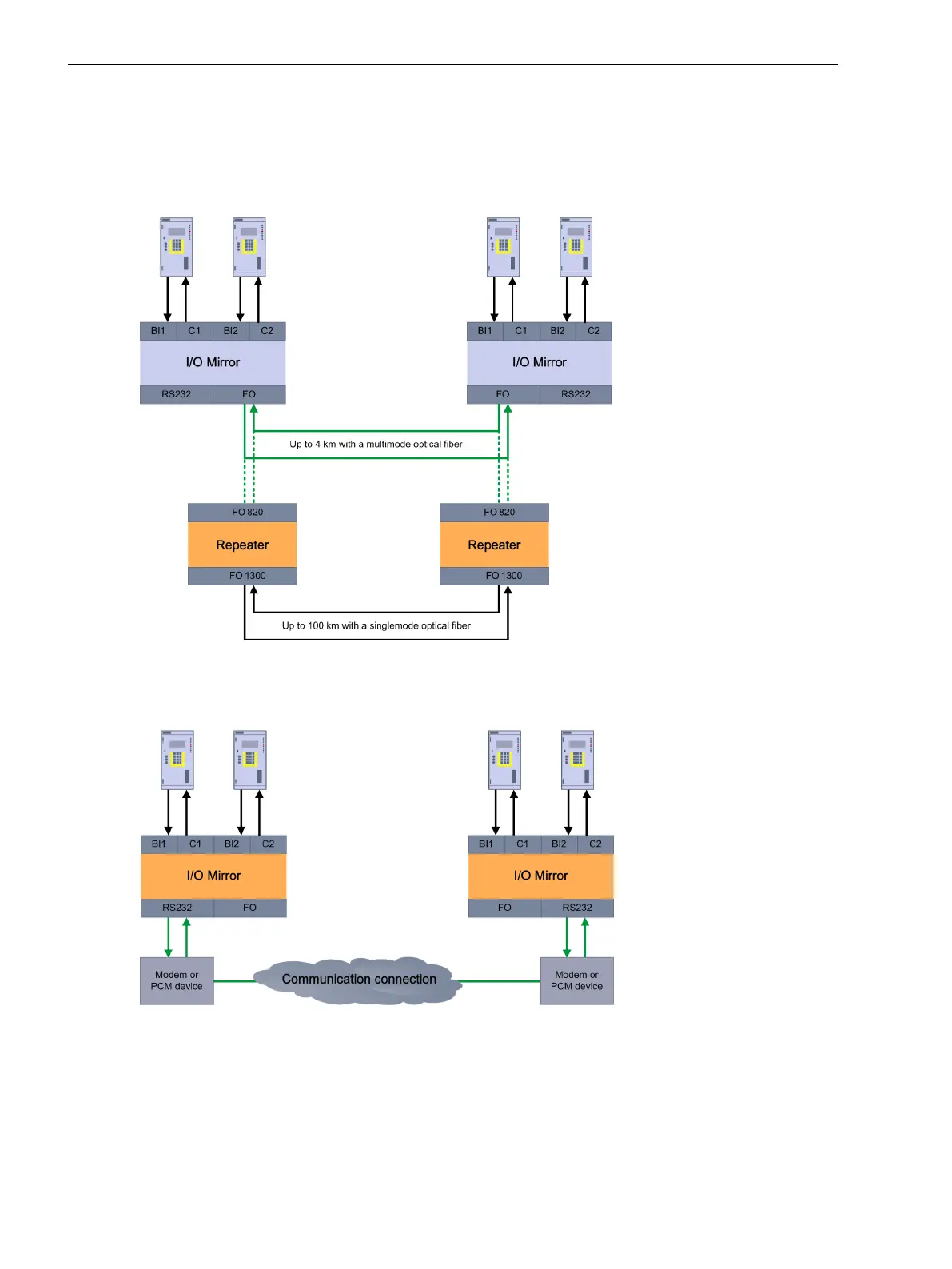

Figure 3-1
Transmission via Optical Fibers
After being connected to the RS232 interfaces, modems or PCM devices can be used for transmission.
[dw_application_binary_transducer_digitale-comm, 1, en_US]
Figure 3-2 Transmission via Modems or PCM Devices
Connecting Cable, Modem - 7XV5653 Binary-Signal Transmitter
The cable from the modem (25-pin connector) to the binary-signal transmitter (9-pin connector) has the follo-
wing connections and jumpers:
3.1
Application Examples
3.1 Transmission Modes
24 Accessories, Binary signal transmitter 2-channel, Manual
C53000-G9050-C607-1, Edition 09.2019
