Understanding the Symbols and Display Icons

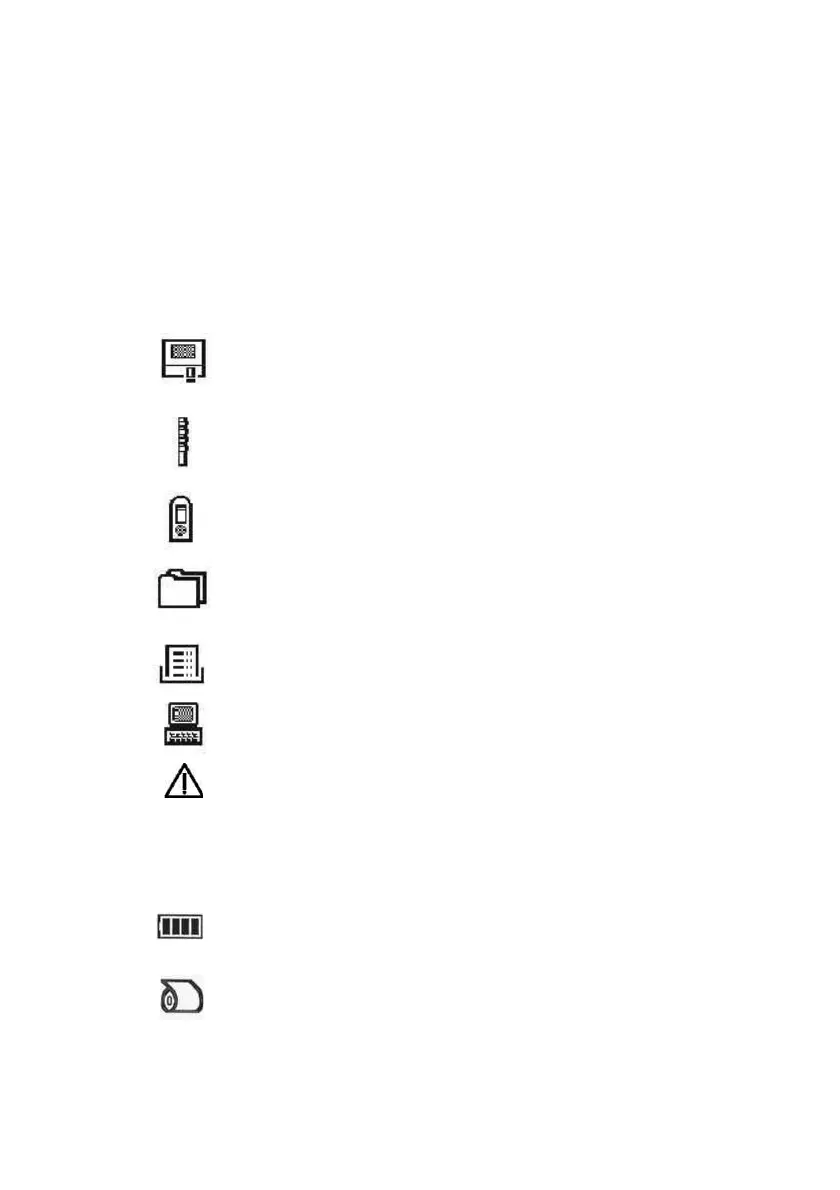

Display Icons
There are seven icons which display in the top left of the display to show
the mode of the instrument. They also appear on the selection area for
each function. The icons are:
Instrument Set Up
This is displayed when the instrument is being set up to suit the
users’ requirements.
Strip Test (e.g., Multistix 10SG)
Shown when a test is being carried out using a reagent strip for
urinalysis, and when results are displayed following a strip test.
Cassette Test (e.g., Clinitest hCG)
Displayed when a cassette test is being carried out and when
results are shown after a cassette test.
Results recall
Used to show that results are being recalled from the
instrument’s memory.
Printer
This icon is displayed when results are being printed.
Data transfer to Personal Computer
Shows that data, including results, is being transferred to a PC.
Alert
Used when an error is being displayed.
There are two icons which may appear in the title bar.
Battery power
This has a maximum of four segments which show the level of
battery power. It will be shown in the top right corner of the title
bar when the instrument is battery powered.
Paper out
Appears in the top of the title bar when the printer paper/label
roll needs replacing.

Siemens CLINITEK Status Specifications

General

Display	LCD
Sample Type	Urine
Measurement Principle	Reflectance photometry
Type	Urine analyzer
Test Types	Urine test strips
Connectivity	RS232 port
Power Supply	AC adapter
Data Storage	200 patient test results
User Interface	Keypad
Measurement Parameters	Glucose, protein, pH, blood, ketones, bilirubin, urobilinogen, nitrite, leukocytes, specific gravity
Memory	200 results
Operating Conditions	Temperature: 15-30°C, Humidity: 20-80% RH
Measurement Time	Approximately 1 minute
