7ML19985QM82 XPS/XCT Series Transducers – OPERATION MANUAL Page EN-9
English

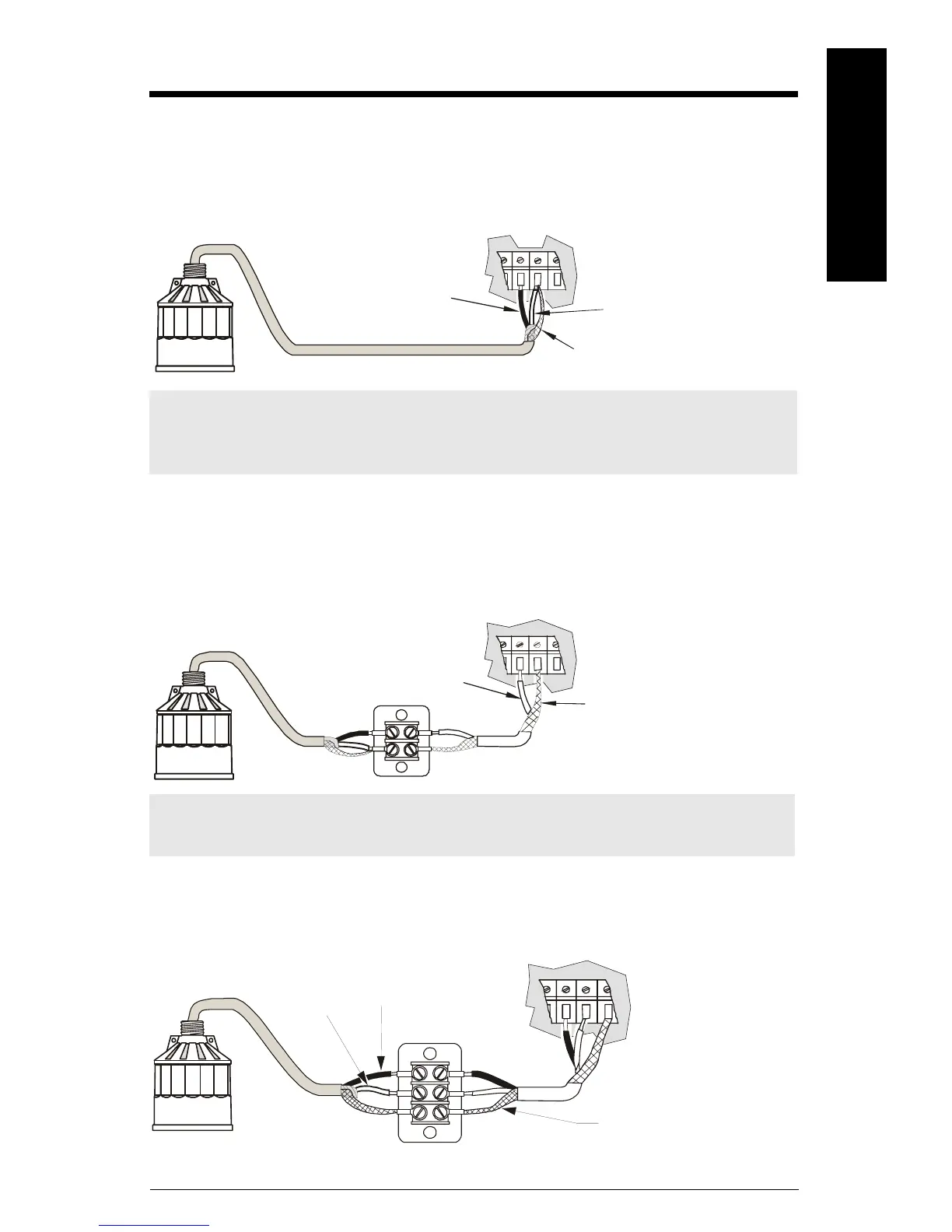

Interconnection
Direct Connection
Connect the transducer directly to the Siemens Milltronics transceiver via the two conductor
shielded cable.
Coaxial Connection
Connect the transducer to the Siemens Milltronics transceiver via a junction box and RG–62 A/
U coaxial cable. This setup is effective for combined runs up to 365 m (1200 ft).
2-Wire Extension
(for EnviroRanger ERS 500, MultiRanger 100/200, and HydroRanger 200 only)
Note: When connecting to an EnviroRanger ERS 500, a MultiRanger 100/200, or a
HydroRanger 200, the white, black, and shield wires are all connected separately. DO NOT
tie the white and shield wires together.
Note: When connecting to an EnviroRanger ERS 500, MultiRanger 100/200, and
HydroRanger 200, do NOT use coaxial cable; see diagram below for proper procedure.
wht
blk
drain/shield
extend cable using RG-62 A/U coax
wht
drain/shield
wht
blk
junction box
drain/shield
extend cable using 18 AWG
shielded/twisted pair
