7ML19985QM82 XPS/XCT Series Transducers – OPERATION MANUAL Page EN-7
English

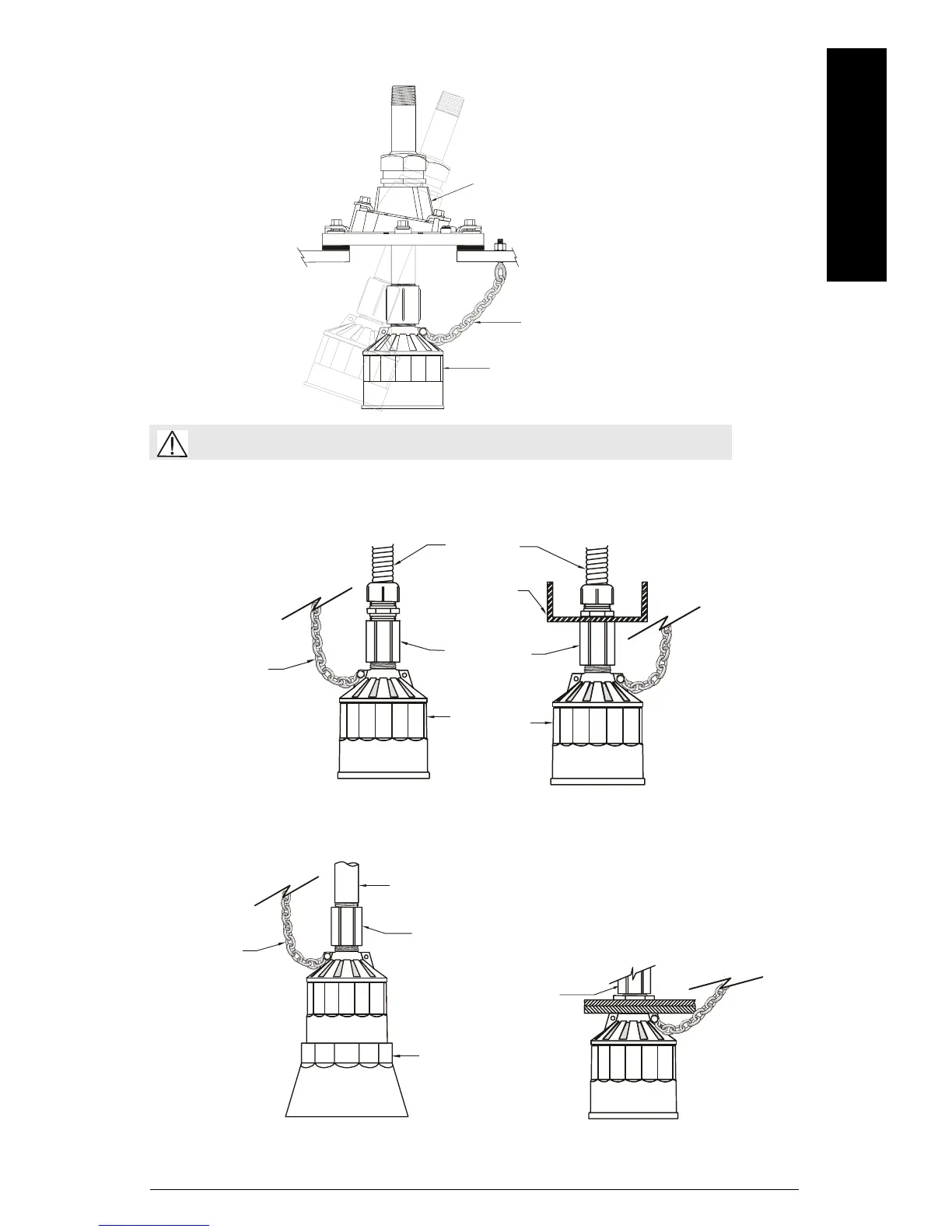

Mounting – Solids Applications
Mounting – Liquid Applications
WARNING: Improper installation may result in loss of process pressure.
Easy Aimer (typical model)
transducer
safety chain
flexible
conduit
steel channel
coupling
transducer
safety
chain
Flexible Conduit
Bracket
Submersible Plywood
safety
chain
rigid metal conduit
coupling
submergence
shield
Transducer with submergence shield, used in
applications where flooding is possible.
Plywood mounting provides excellent
isolation, but must be rigid enough to
avoid flexing if subjected to loading.
Flexible conduit mounted
transducer should not be
subjected to wind, vibration,
or jarring.
