Operating Manual of FC18 Controller
Page: 34/70
16. HOW TO LOCATE/STOP LOCATING
Function: To locate device.
Steps to locate:

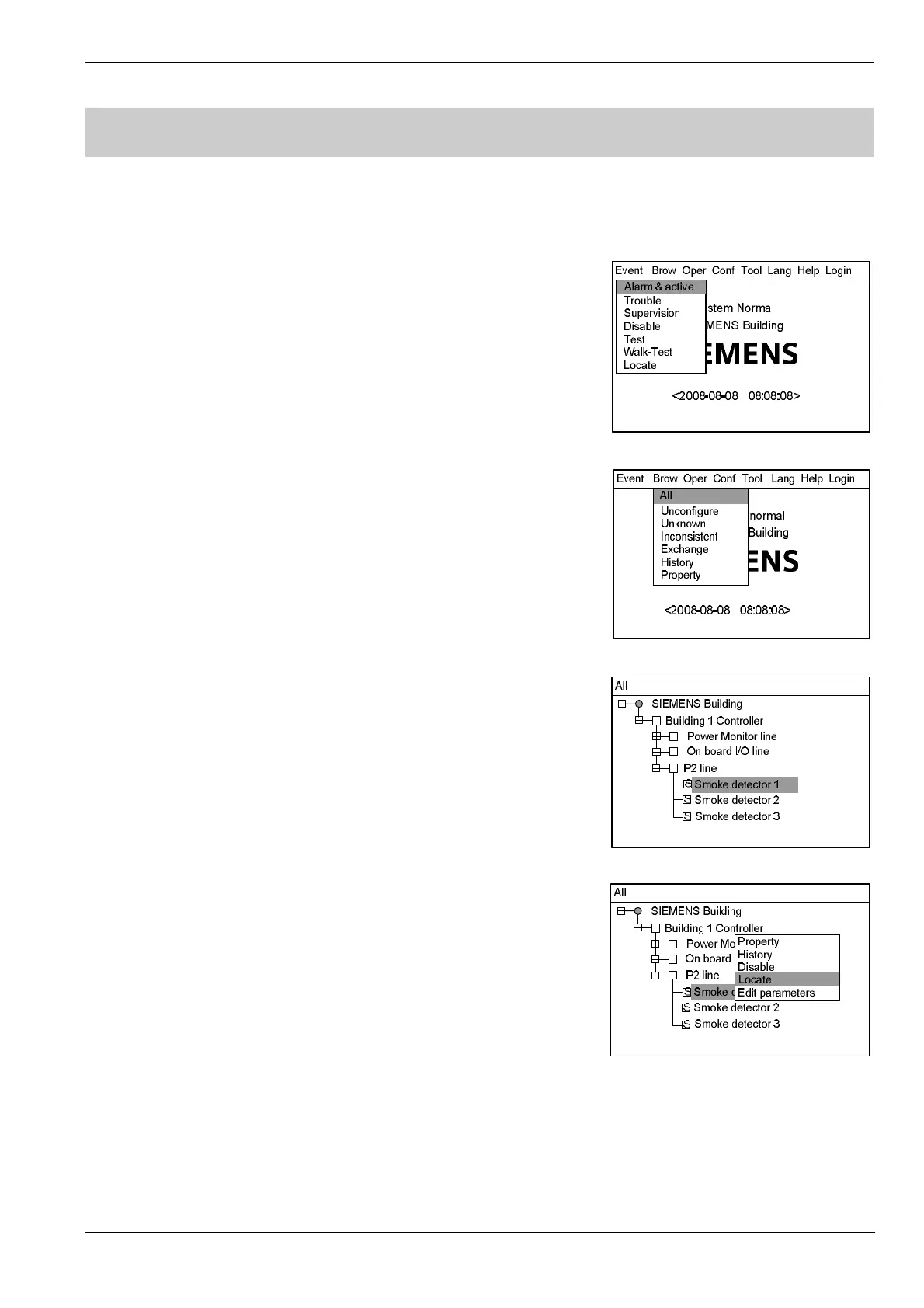

1. Press “Menu” to browse the main menu (Fig. 15-1).
Main menu displayed.
2. Press “→” to select “Brow” submenu (Fig. 15-2). Press “↓” to select “All”,
then press “OK” to display the tree diagram (Fig. 15-3). Search down level
by level through stations, lines and points until you find the device you are
looking for.
3. Press “→” to pop out the shortcut menu (Fig.15-4). Use “↓” to select
“Locate” and press “OK” to locate the selected device. Now the test
indicator is flashing.
Steps to stop locating:
The same as the first 2 steps to conduct a remote test. The only difference
is to select “Stop locating” instead of “Locate” in step 3, then press "OK" to
reset the selected device and to turn off the flashing indicator.
Fig.15-1
Fig.15-2
Fig.15-3
Fig.15-4
