Installation
10
Building Technologies
007828_b_en_--
Fire Safety & Security Products
09.2008
3 Installation
z

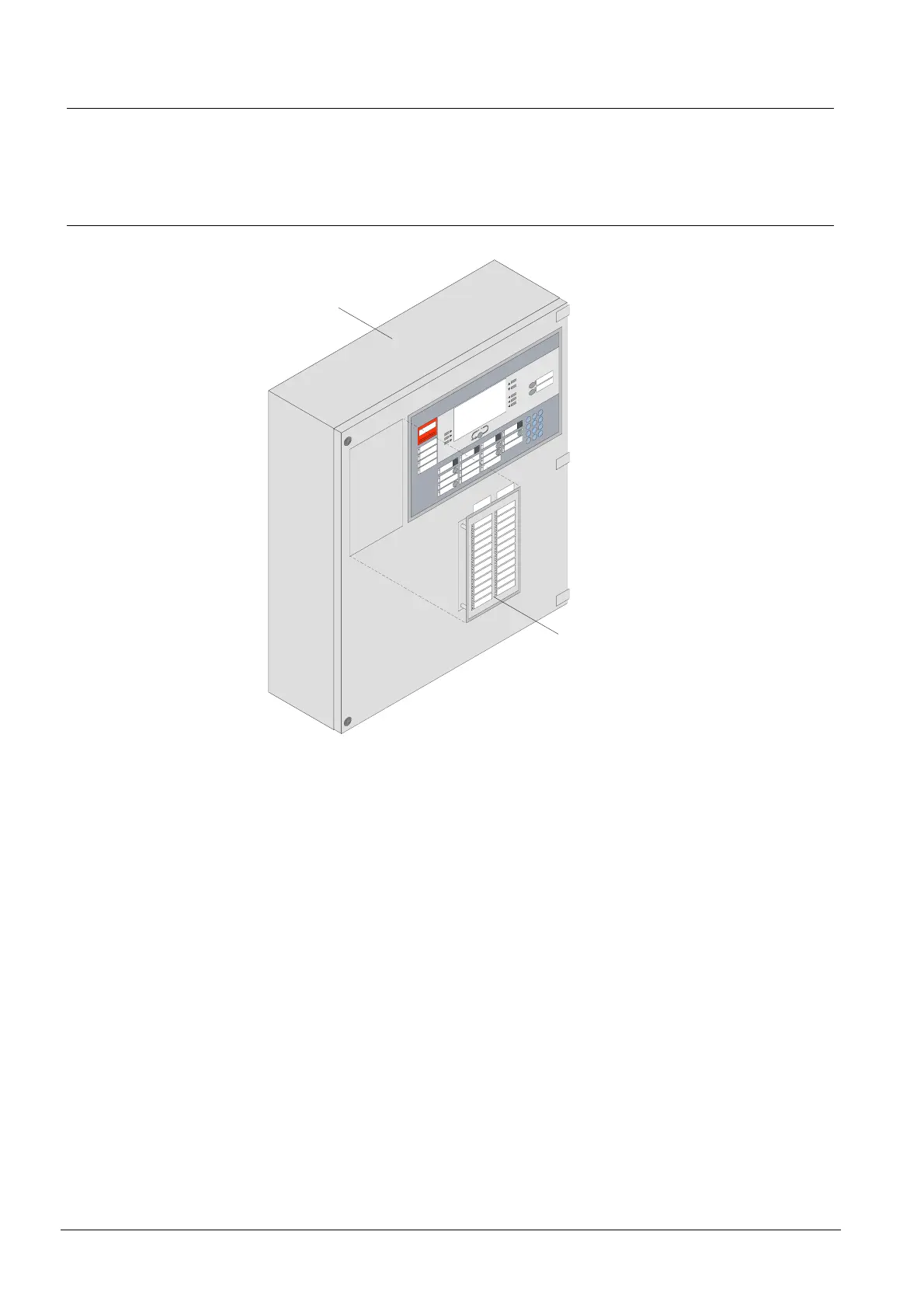

Housing set FC700A (H38G320)
–
Fire detection system FC700A as comp
act control unit for up to 10 plug-i
n
modules, with built-in operating terminal (B3Q700).
3.1
Space for parallel indicator panel
1
B3R051
H23B010
B3Q700
2
Legend:
1
Housin
g set incl. control terminal (B3Q700) an
d cover plate H23B010
2
Parallel indi
cator panel B3R051 as option
9
11
Table of Contents
Default Chapter
3
Table of Contents
3
1 About this Document
5
2 Safety Regulations
7
Signal Words and Symbols
7
Signal Words and Their Meaning
7
Symbols and Their Meaning
7
Classification and Meaning of Additional Symbols
8
Safety-Relevant Working Instructions
8
3 Installation
10
Space for Parallel Indicator Panel
10
Housing Installation
11
Protection of the Installed Housing
12
4 Commissioning
13
Commissioning the System
13
Preparation
14
Programming the System
14
5 Installation of Hardware
15
Installation of Auxiliary P.C.b. Chassis
15
6 B3Q700 Control Terminal for Use as 'FC' or 'FT
16
7 Line Modules
17
E3M080 Line Module "Collective
17
E3M111 Line Module "Synoloop
17
8 LON Module
18
E3I040 I-Bus/Lon Module
18
9 Control Modules
19
E3L020 Control Module 'I/O
19
E3L030 Control Module 'Vds
19
E3G050 Control Module 'Contacts
20
E3G060 Control Module 'Monitored
20
E3G070 Control Module 'Universal
21
10 Control Terminal and Floor Repeater Panels
22
FT700A (B3Q700) Control Terminal
22
B3R051 Parallel Indicator Panel
22
K3R072 Synoptic P.C.b
22
K3G060 Relay P.C.b
23
K3I050 Lon/Synoptic P.C.b
23
K3I110 LON I/O P.C.b
24
B3Q580 Floor Repeater Panel
24
B3Q590/595 Floor Repeater Panel with Control Functions
25
11 Printer
26
E3I020 RS232 Module
26
12 Gateway FG700A
27
E3H020 C-Bus Gateway
27
E3H021 C-Bus Gateway
28
13 Power Supply
29
B2F020 Converter
29
E3C011 Battery Charging Module
29
14 Ground Fault Monitoring
30
Modules with Ground Fault Monitoring
30
14.1.1 Settings of the Modules in the Factory
30
Test Ground Fault Monitoring
30
15 Install Modules
31
16 Connection Periphery
32
17 First Switch-On
33
Battery Charging Module E3C011
33
Control Terminal B3Q700 ('FC'/'FT')
33
18 Read in
34
Read in of the Hardware Modules
34
Read in of Devices on a Loop
34
19 Device Activation for Testing/Upgrading a System
35
Automatic Detectors
35
Manual Call Points
35
Input/Output Modules
36
