Gateway FG700A
27
Building Technologies 007828_b_en_--
Fire Safety & Security Products 09.2008

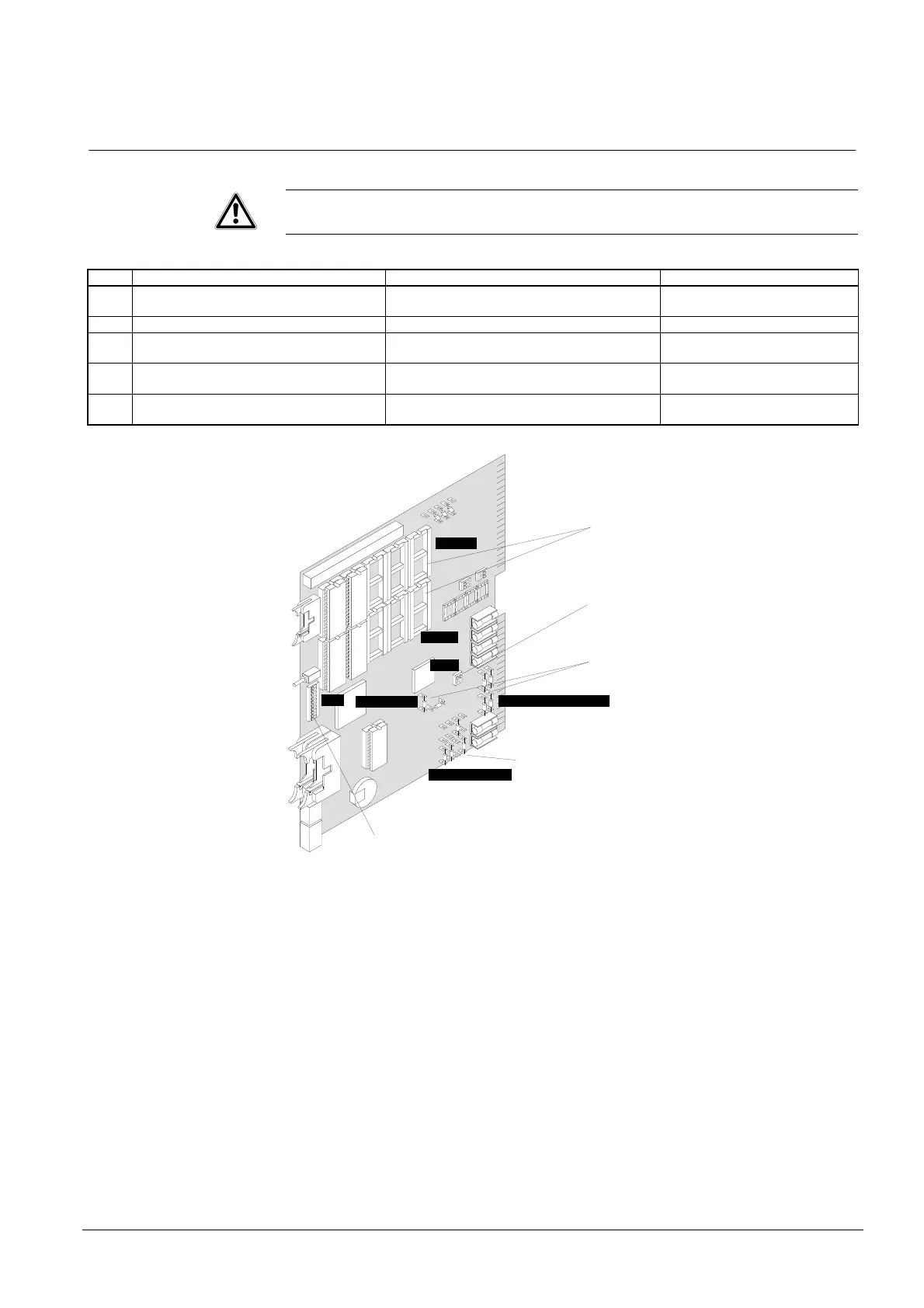

12 Gateway FG700A
12.1 E3H020 C-Bus Gateway
NOTE
Take precautions against voltage surges when inserting RAM modules and
EPROM's.
Make sure the modules are pushed fully in their slots.
Pos. Module Preparation Default
1 Select EPROM set
CKQ0076x (2x 512Kx8Bit)
Insert (consider positions for 'ODD' and 'EVEN') Not inserted
2 Programming switch 'S3': C-Bus address Set according to the system documentation Address 0
3 Programming switch 'S5': Select port path Set according to the system documentation, see
description in document 007831
Set to 'OFF'
4 Resistors 'R180/183' 'R173/174/177/178':
C-Bus impedance
Adjust if necessary
Inserted for 110Ω impedance
(G51)
5
0Ω resistors 'X15'... 'X18': Programming of
the terminal block 'X1-17... 20'
Re-solder if gateway with autonomous supply is
inserted, see description in document 007831
To 'X15'... 'X18' ('FG' + supply
from control unit)
1
S3
EVEN
ODD
2
S5
3
R180/183
4
R173/174/177/178
X15/16/17/18
5
