Commissioning
13
Building Technologies 007828_b_en_--
Fire Safety & Security Products 09.2008
4 Commissioning
4.1 Commissioning the system

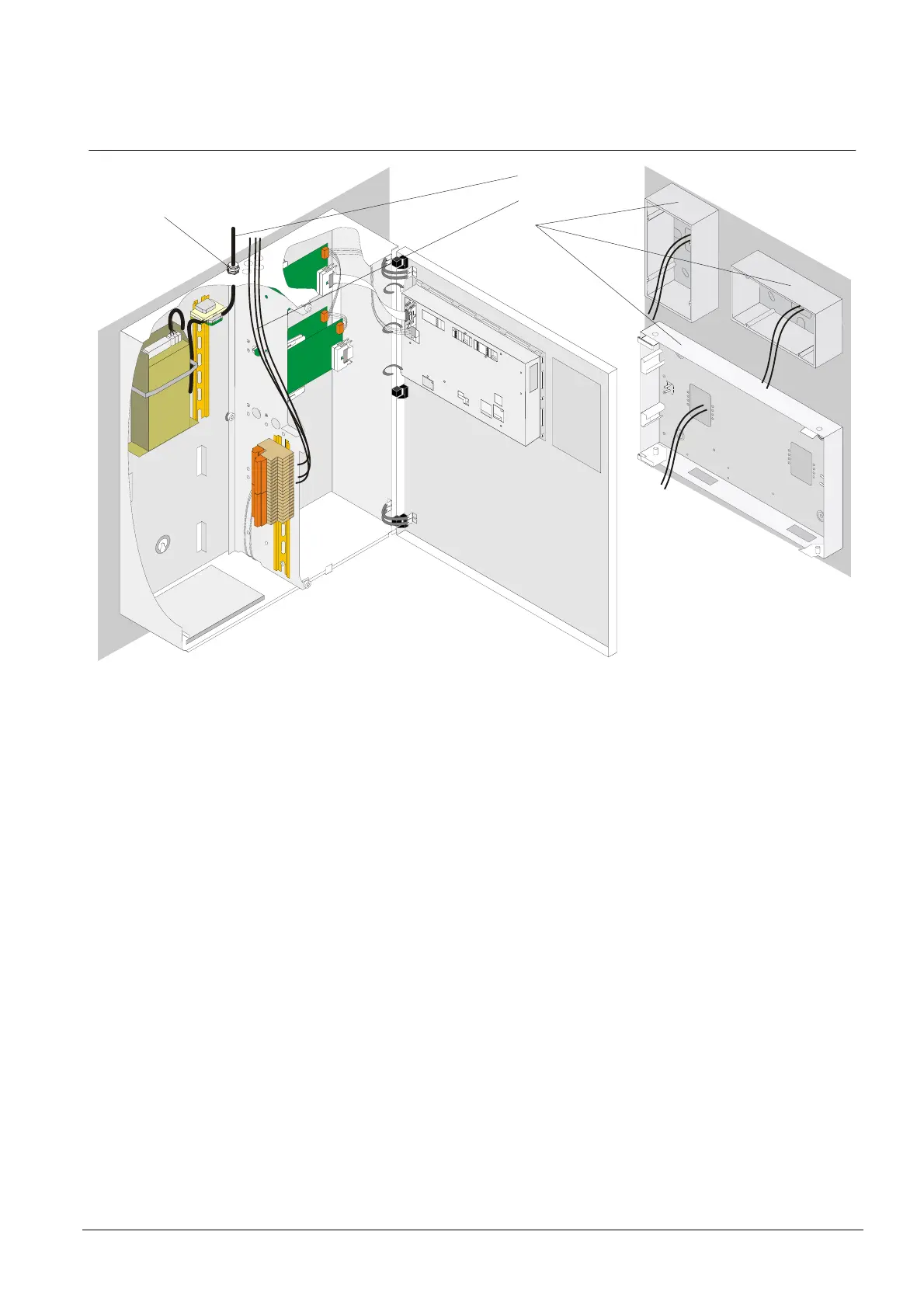

Connection cable from mains, series fuse
10A / IEC950 10 kg strain relief
PG11 screwed cable gland
1
2
3
Requirements: The following work must be completed
1. Control unit installed and detection lines ready for connection (1).
2. All devices such as detectors, manual call points etc. connected and inserted
3. Peripheral devices such as control terminal (3), floor repeater panel, parallel in-
dicator panel, etc. installed and ready for connection.
4. SynoLOOP addressable detection lines have been tested with line tester
DZ1131.
5. Required hardware inserted (modules, module chassis, accessories, terminal,
possibly EPROM-set (E3H020), batteries).
Required tools
z System documentation
z Multimeter
z Soldering iron (for re-soldering jumpers and resistors if required)
z No. 1 long-shafted Philips head screwdriver for installing the module chassis
z 2 mm Allen key for installing the manual call points
z ESD protection mat
