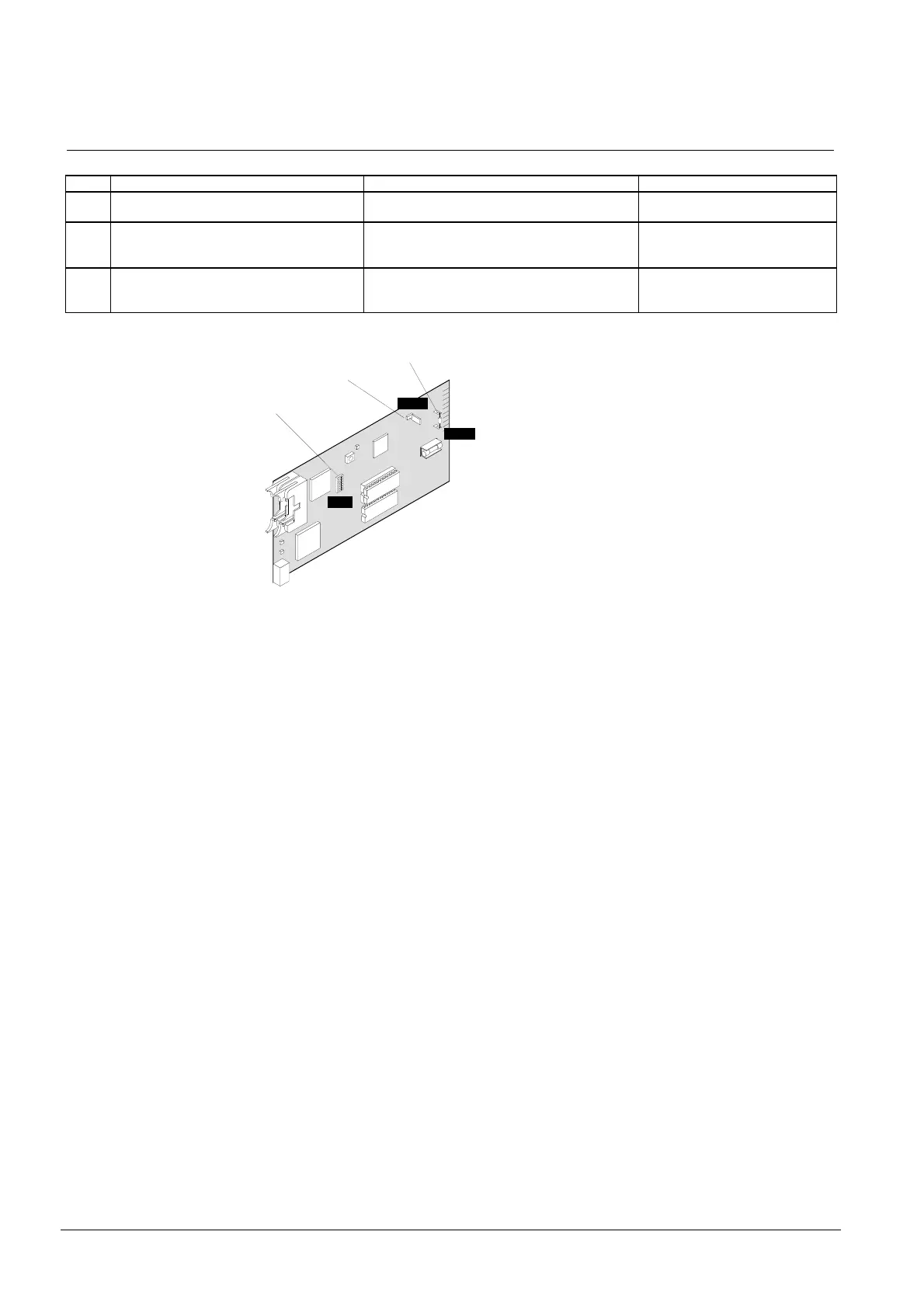

8 LON module
8.1 E3I040 I-Bus/LON module
Pos. Module Preparation Default
1 Programming switch 'S3': I-Bus address Set according to the system documentation
(1… 14)
Address 0
2 Resistor 'R60': line termination element
'LON-Bus'
If the LON-Bus is wired as "free topology", 'R60'
must be changed to 50Ω, see description in
document 007831
100Ω
3 Jumper 'X30': Ground fault monitoring unit
'LON-Bus'
Ground fault monitoring -> see chapter 14
Set as described in document 007831, chapter
'Ground fault monitoring'
Removed (inactive)
X30
3
S3
R60
1
2
