Installation
11
Building Technologies 007828_b_en_--
Fire Safety & Security Products 09.2008

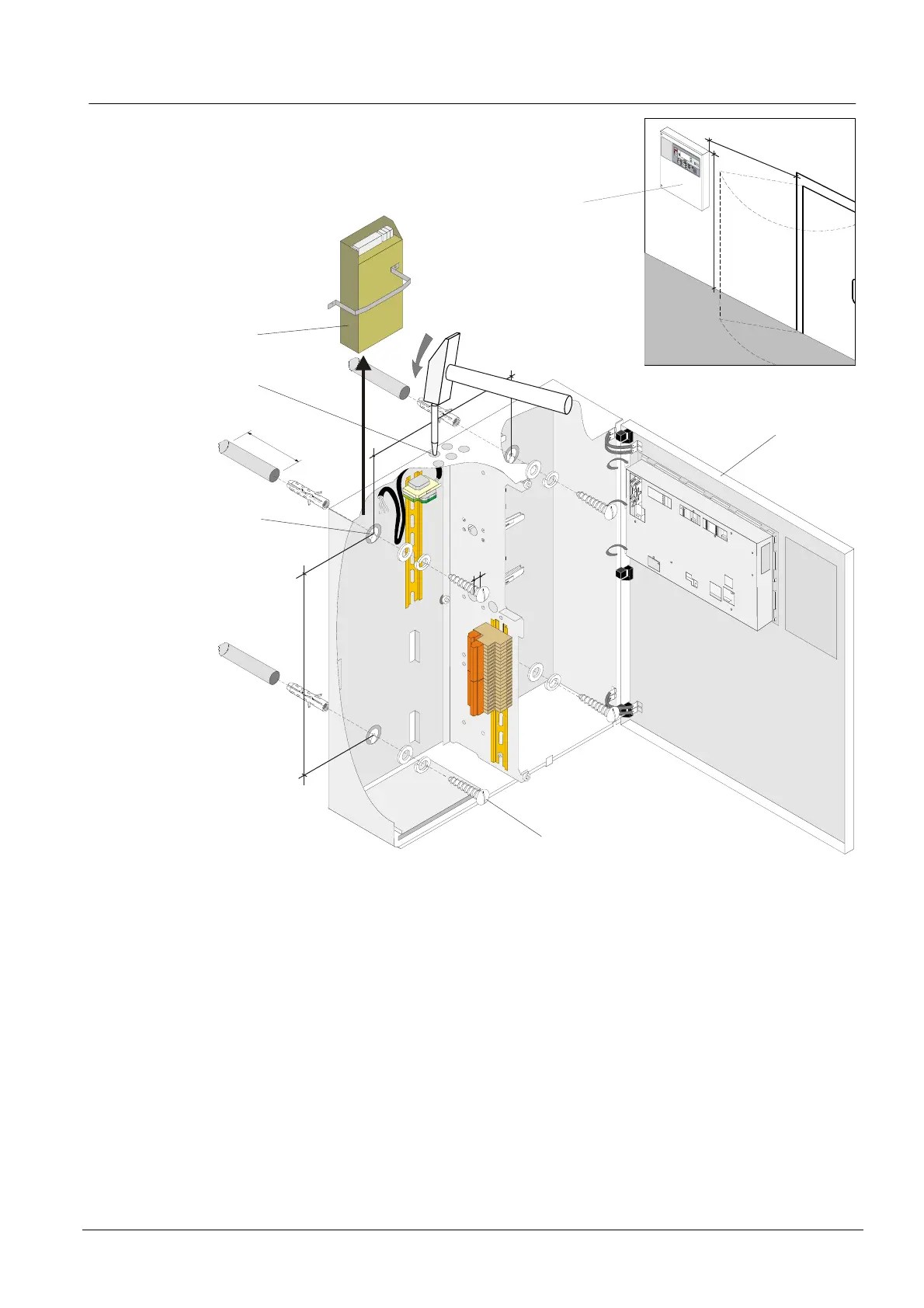

3.2 Housing installation
min. 50 mm
8 mm
405
318
min. 1m
1.7 m
1
4
2
3
5
6
Procedure:
1. Open housing (4) with hexagon wrench No. 3 (included in the housing set).
2. Remove converter B2F020 (6) (put it back afterwards)
3. Determine place of installation.
4. Mark and drill mounting holes (2).
5. Break out the necessary cable entries (3).
6. Screw housing to the wall (5) (screws, dowels, washers and spring washers to
be provided by the installer)
